In addition, all files must be located within the logos folder on the microSD

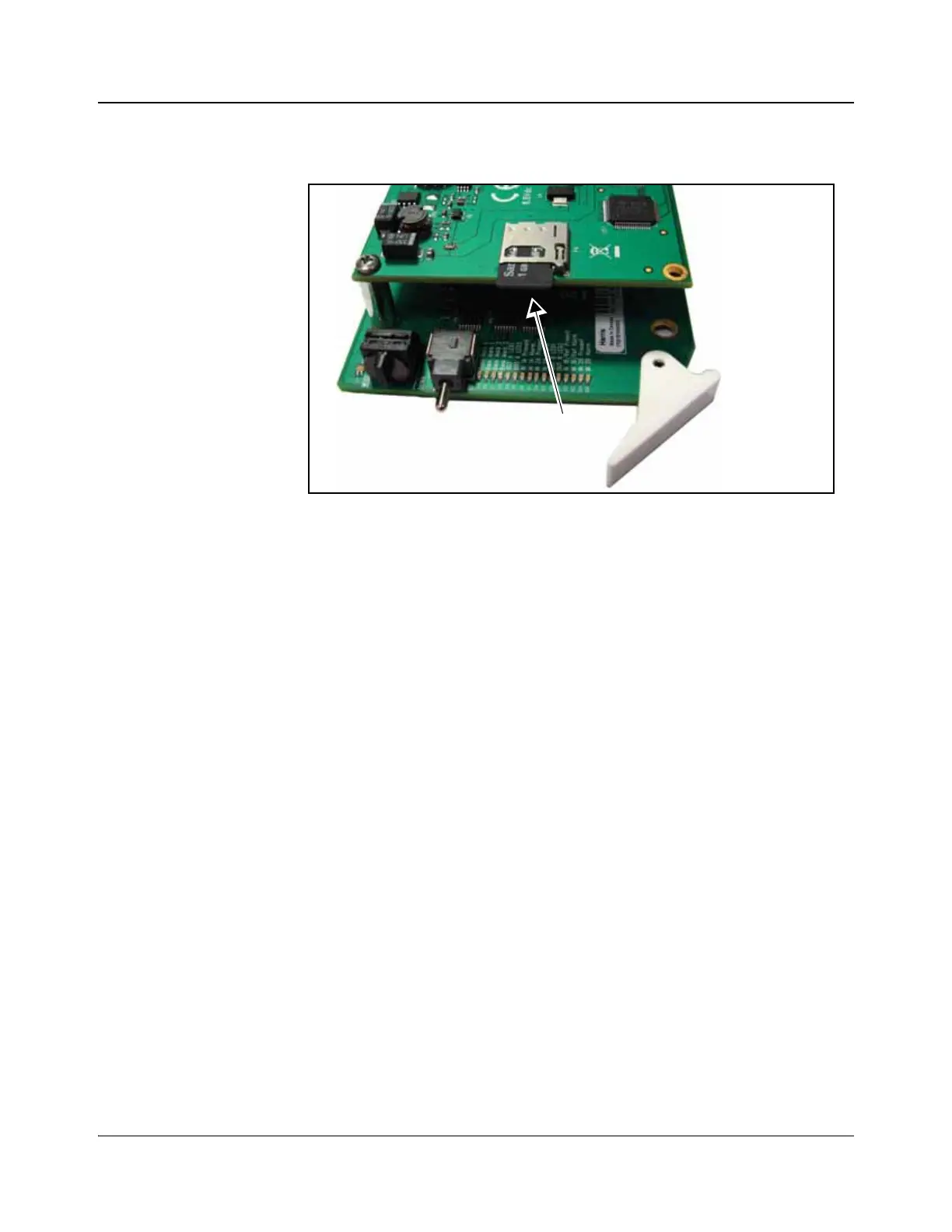

card. Figure 3-6 shows the location of the microSD socket.
Figure 3-6. Inserting the MicroSD Card
Using Trouble Slides
The Trouble Slide Source parameter has four options. The Trouble Slide
(1/2/3) options are only available when there are compatible trouble slides
(MG2 format) stored in the microSD card.
The trouble slide can have two sources:
• Default trouble slides are stored within the firmware of the ACO6800+.
You can only change the background portion of default trouble slides (using
parameter Trouble Slide Background)
• Up to three user trouble slides can be stored in a microSD card (located at
the sub-module)
Trouble slides must meet the following criteria:
