6 ACO6800+ Installation and Operation Manual
Copyright © 2009, Harris Corporation
Chapter 1: Introduction
Back Modules
Figure 1-2 shows the double-slot back modules used by the ACO6800+ISD,
ACO6800+DSD, ACO6800+ASID, and ACO6800+IDSD modules, and the
triple-slot back module used by the ACO6800+ISCST module.
The back and front modules cannot be installed in frames without fans, or in
FR6802+DM and 6800/7000 series frames.

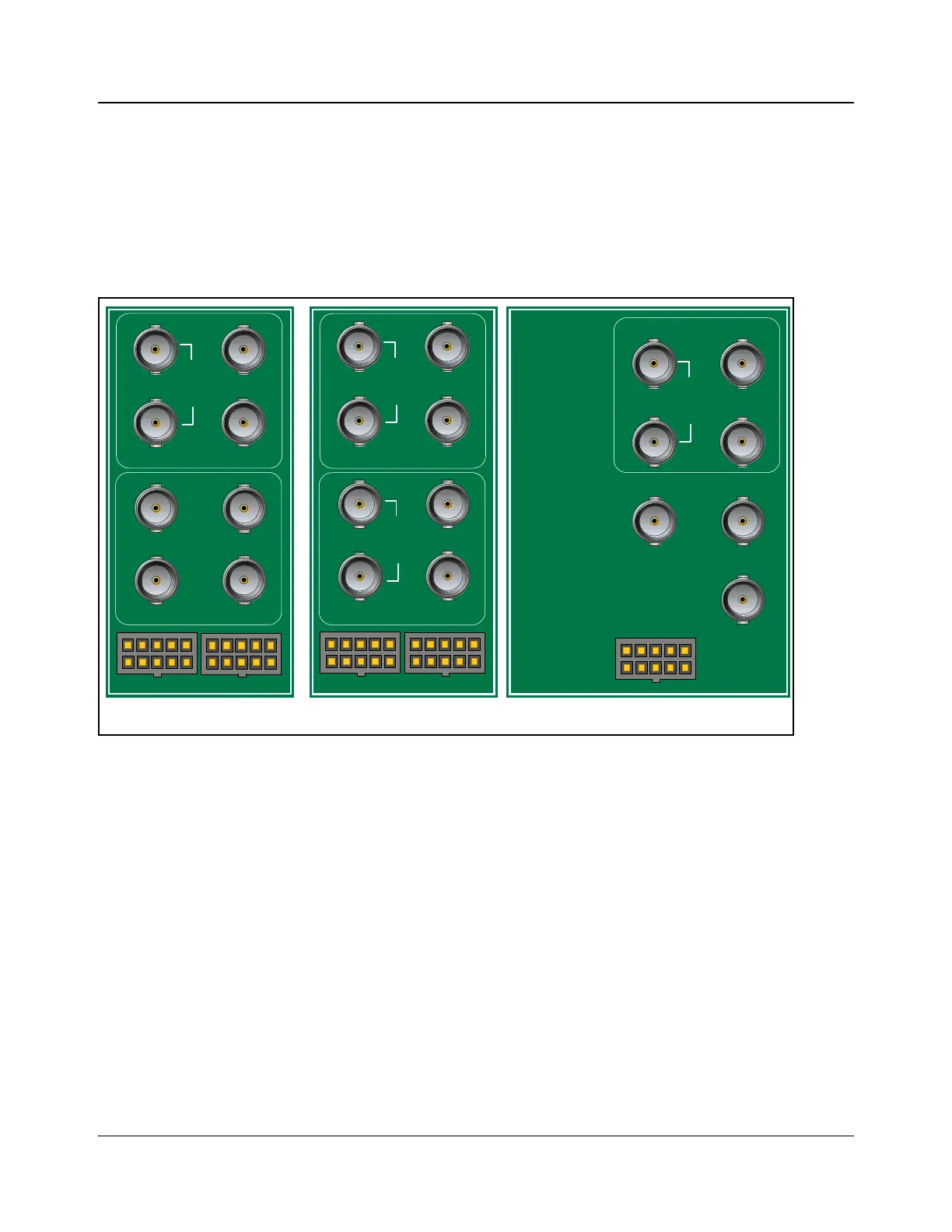

Figure 1-2. ACO6800+ Back Modules
IN 2IN 1
OUT 2
OUT 1
AUX 2AUX 1
GENLOCK
GPI
BYPASS
IN 2
IN 1
OUT 2
OUT 1
IN 2IN 1
OUT 2
OUT 1
GPI A GPI B
A
B
BYPASS
BYPASS
IN 2IN 1
OUT 2
OUT 1
NOT USEDNOT USED
OUT 2
OUT 1
GPI A NOT USED
A
B
BYPASS
ACO6800+DSD/IDSD
ACO6800+ISCST
ACO6800+ISD/ASID
