ACO6800+ Installation and Operation Manual 31
Copyright © 2009, Harris Corporation
Chapter 3: Configuration and Operation

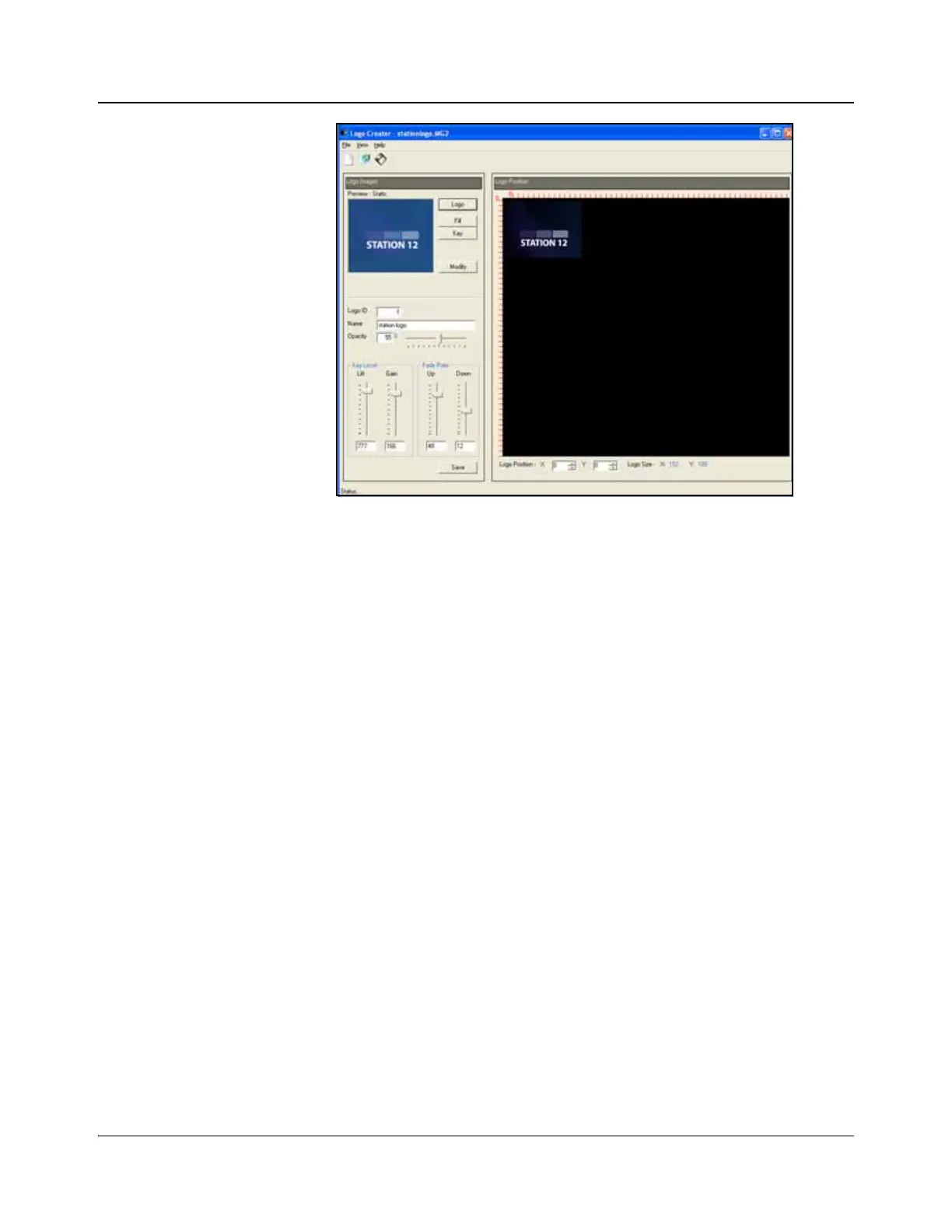

Figure 3-5. LogoCreator Work Space
Once you create an .mg2 logo, you can
• Open the file in LogoCreator
• Set the logo position
• Modify specific logo attributes
LogoCreator also makes it possible to adjust the noise and strength of the
key signal and apply fade on/off transitions to the logo.
Step 3: Transfer the Logos to the MicroSD Card
When your logos have been created or converted to the .mg2 format, they can
be saved on the microSD card. The ACO6800+ISCST references files on the
MicroSD card using the DOS 8.3 short filename convention. Longer filenames
may be accessed by entering the alternate 8.3 filename. To avoid any confusion,
it is preferable to limit all filenames to the 8.3 format, with a maximum of 8
characters before the .mg2 extension.
