Harris Constellation - Figure 9-4: RSL Measurement

Constellation™ 2002 June 20
9-12

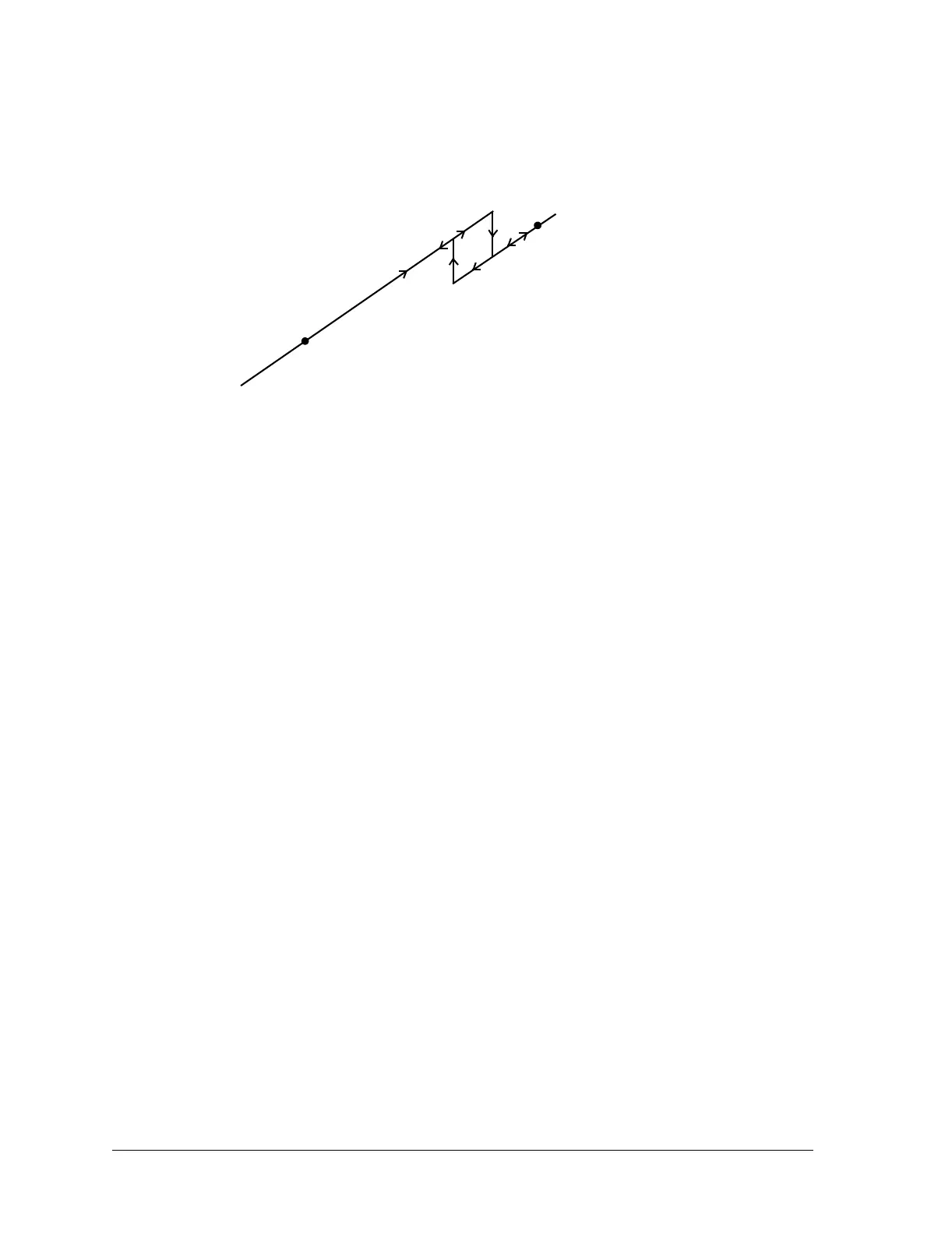

Figure 9-4: RSL measurement
If the signal level is too high for antenna alignment, the far-end Transmitter
could be set to ATPC low power (about 10 dB lower than nominal high power
setting). See Keypad menu,
Appendix B .
CONFIGURATION > SYSTEM > TX ATPC > DISABLE LOW
If the signal level is still too high, a pad can be temporarily added at the
Receiver input.
-26 dBm (-2.6 Vdc*)
-70 dBm
(-7.0 Vdc)
-20 dBm (-3.0 Vdc)
-29 dBm
(-3.9 Vdc***)
(-3.6 Vdc**)
(-2.9 Vdc#)
LEGEND
( ) Test point reading.
* Before the attenuator is engaged.
** After the attenuator is engaged.
*** Before the attenuator is disengaged.
# After the attenuator is disengaged.
