Harris Corporation Constellation™
System Software Upgrades 10-5
SYSTEM SOFTWARE
UPGRADES

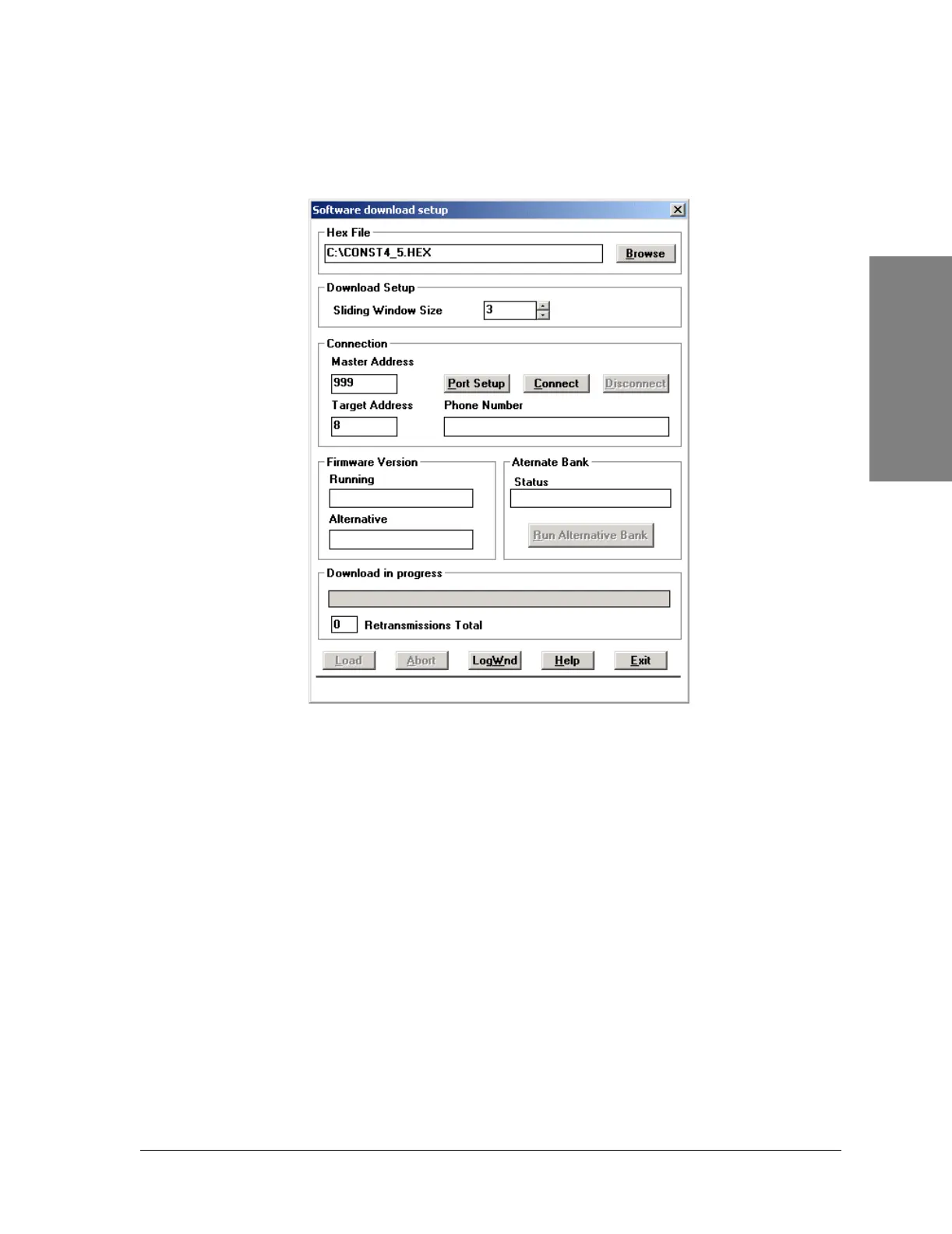

Figure 10-4: Software download setup dialog box
a. Hex File
Use the Browse button to locate the Const*_*.hex (Const4_5.hex)
file. This file is located in the folder where you unzipped the Install.exe
file.
b. Download Setup, Sliding Window Size
The size depends on the position of the radio in the network. See Figure
10-1
for the formula.
• Local Download: 3.
• Remote Download: The size = 2 x n + 1, where n = links away from
the local site.
c. Connection
Master Address: The Master Address must be different from any
FarScan/NE addresses present in the network you are downloading
into.
Target Address: The target address is the FarScan or NE address of
the radio where the software will be downloaded.
