Multiple Loop System, a Loop within a Loop

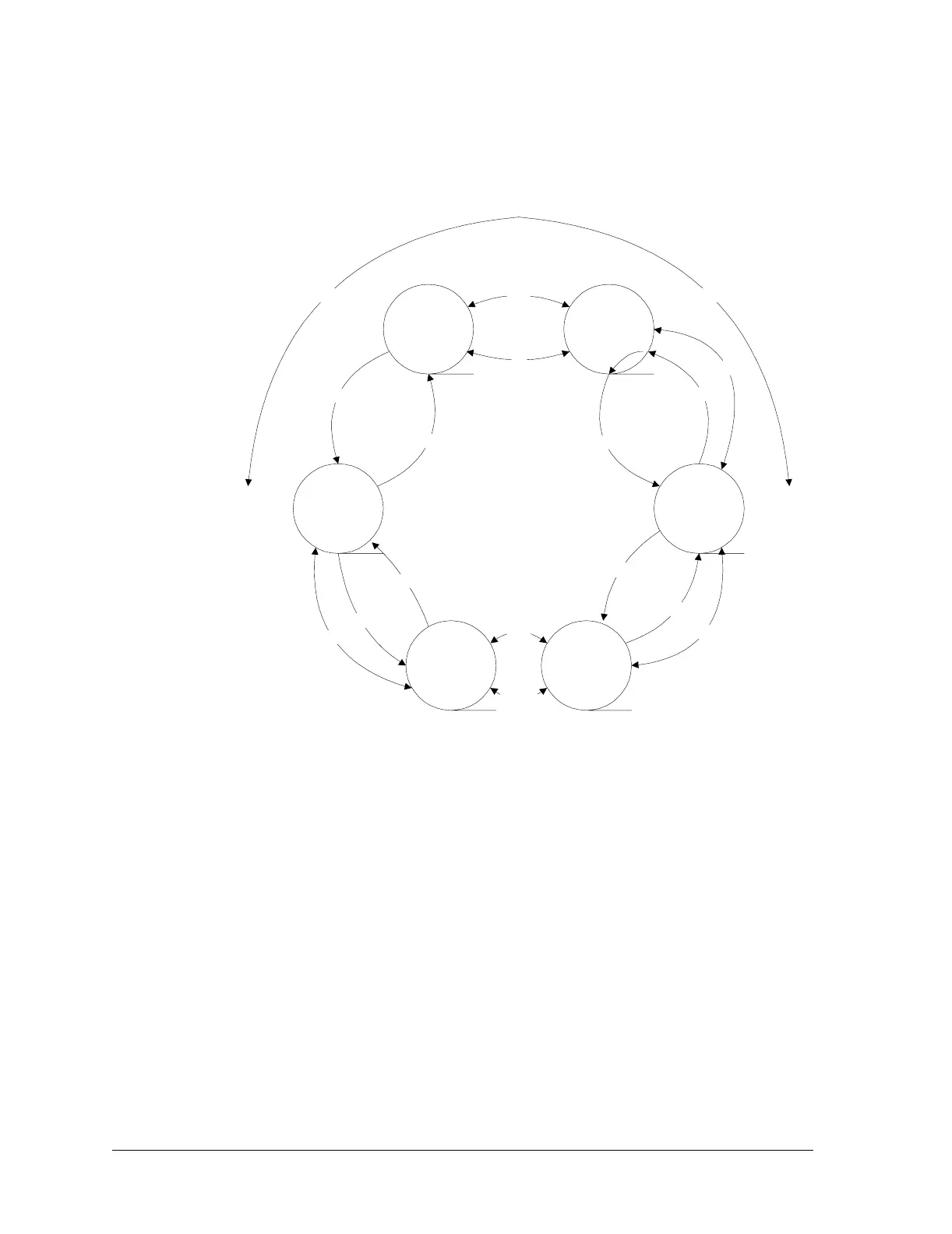

Multiple Loop System, a Loop within a Loop (Figure D-3) shows a loop system
within a loop system. The inner loop is the same loop as discussed in the first
loop system (Single Loop System Using Repeaters), and its operation is
identical. The second loop is made up of a Master Terminal and three Slave
Terminals and looks like a linear system that is connected to the main loop.
The outer loop operates as follows. The Master Terminal generates a pilot so
that it can propagate through two Slave Terminals and to the third Slave
Terminal where it is looped back and returned to the Master Terminal. If the
pilot is detected, the Master Terminal does not transmit or receive any data.
The cables that connect the VF and Data between the Master Terminal and the
Slave Repeater allow communication between the two systems. Any data that
is received at the third Slave Terminal on the outer loop is passed through the
cables that are connected to the Slave Repeater of the inner loop.
