Constellation™ 2002 June 20

5-6

OC3 Remote Loopback

Customer test equipment is required for this test. This test loops back the signal

from the far end to the near end. See

Figure 5-5

You need to access the hidden Control submenu to conduct the OC3 loopback

test.

From the Keypad, select

CONTROL > hidden menu (F1 + F3 or Ctrl B) > OC3 RMT LPBK

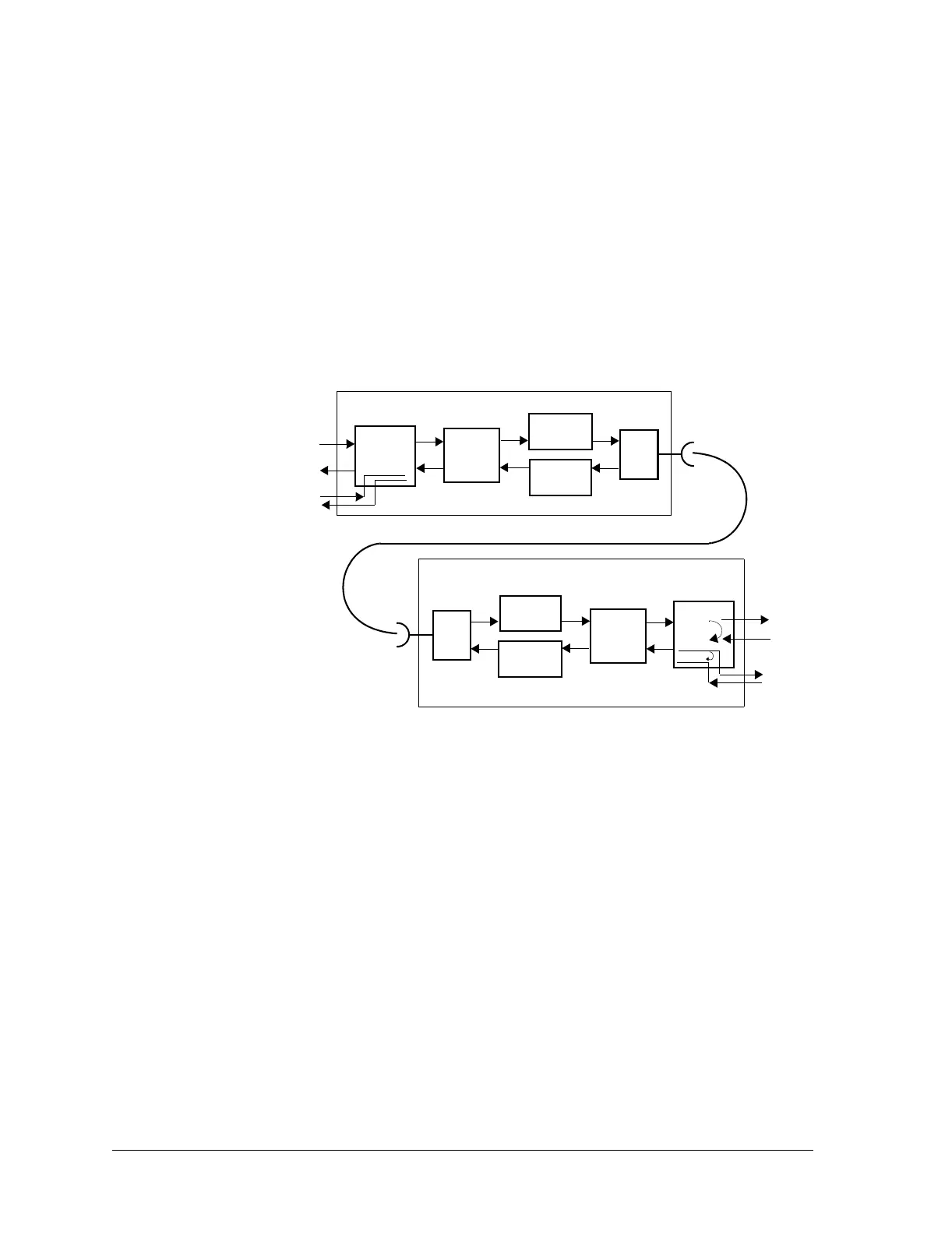

Figure 5-5: OC3 remote loopback test

Tra n s mi t t er

Assembly

HLM-155

Hi Cap

Modem

ACU

Receiver

Assembly

ACU

Local Terminal

Remote Terminal

Customer

test set

Hi Cap

Modem

HLM-155

Wayside

Tran s mit t e r

Assembly

Receiver

Assembly

Wayside

STM1/

STS3

OC3

STM1/

STS3

OC3
