Constellation™ 2002 June 20

4-14

Note: Avaya Communication, 608C cables, or equivalent.

DS3 Configuration

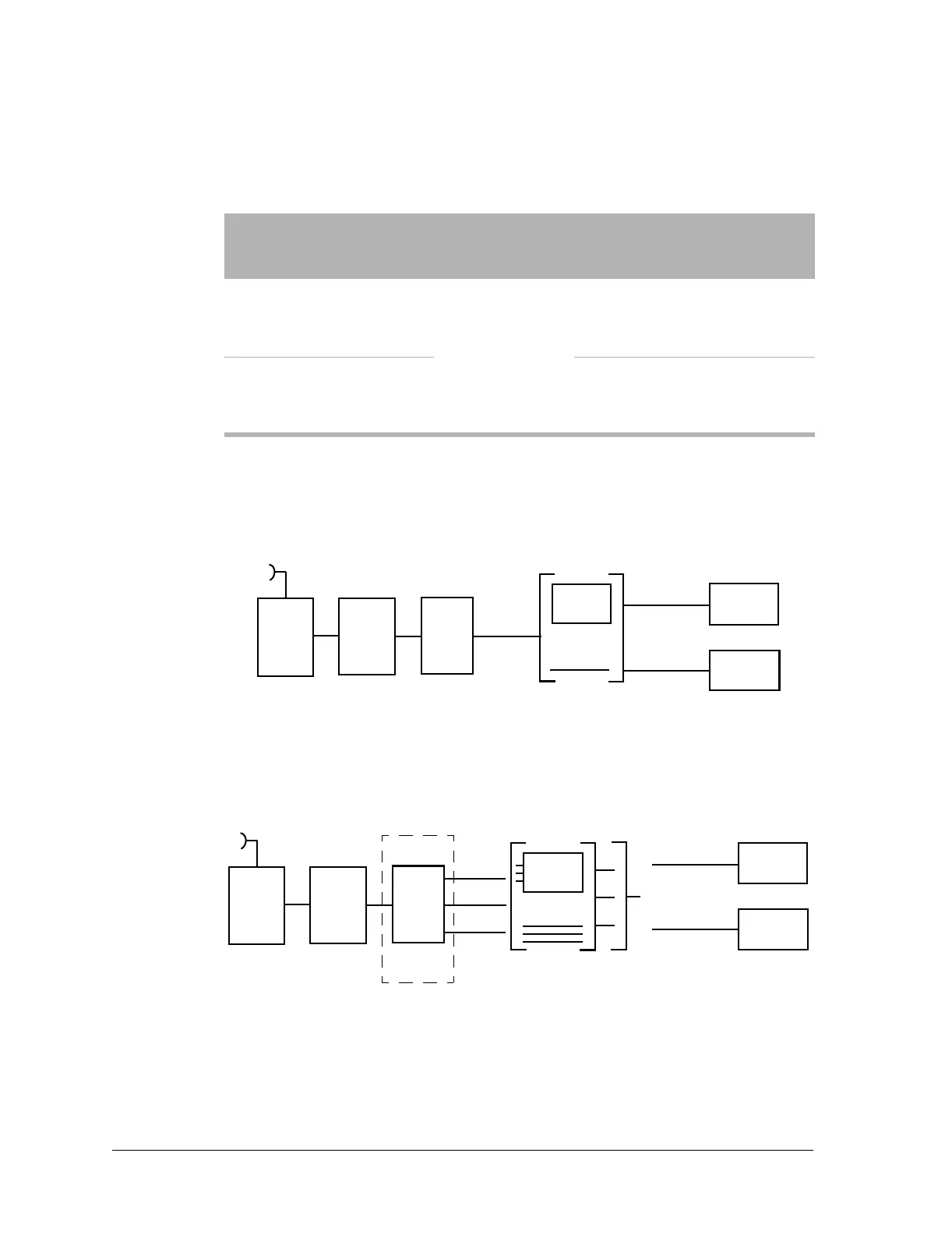

Figure 4-7: Interconnection cabling, DS3 configuration

3xDS3 Configuration

Figure 4-8: Interconnection cabling, 3xDS3 configuration

Table 4-9: Interconnection cabling requirements

Application Cable

Length

(feet)

Line

Attenuation/

Equalization

Specifications

1 Digital

channel

bank

0 to

1310

Programmed

through software

22 AWG, 16-pair, tinned

copper, twisted pair, solid,

shielded, PVC, equipped with

drain wire, 100 ohms

2 DS1 cross-

connect

0 to 655 22 AWG, 16-pair, tinned

copper, twisted pair, solid,

shielded, PVC, equipped with

drain wire, 100 ohms

Radio

Modem

HLM

DS3

Jackfield

DS3 Radio

Repeater

DS3

Multiplexer

Application 1

Application 2

Avaya 734 cables, or equivalent.

Radio

Modem

HLM

DS3-2

DS3

Jackfield

DS3 Radio

Repeater

DS3

Multiplexer

Application 1

Application 2

DS3-1

DS3-3

Avaya 734 cables, or equivalent.
