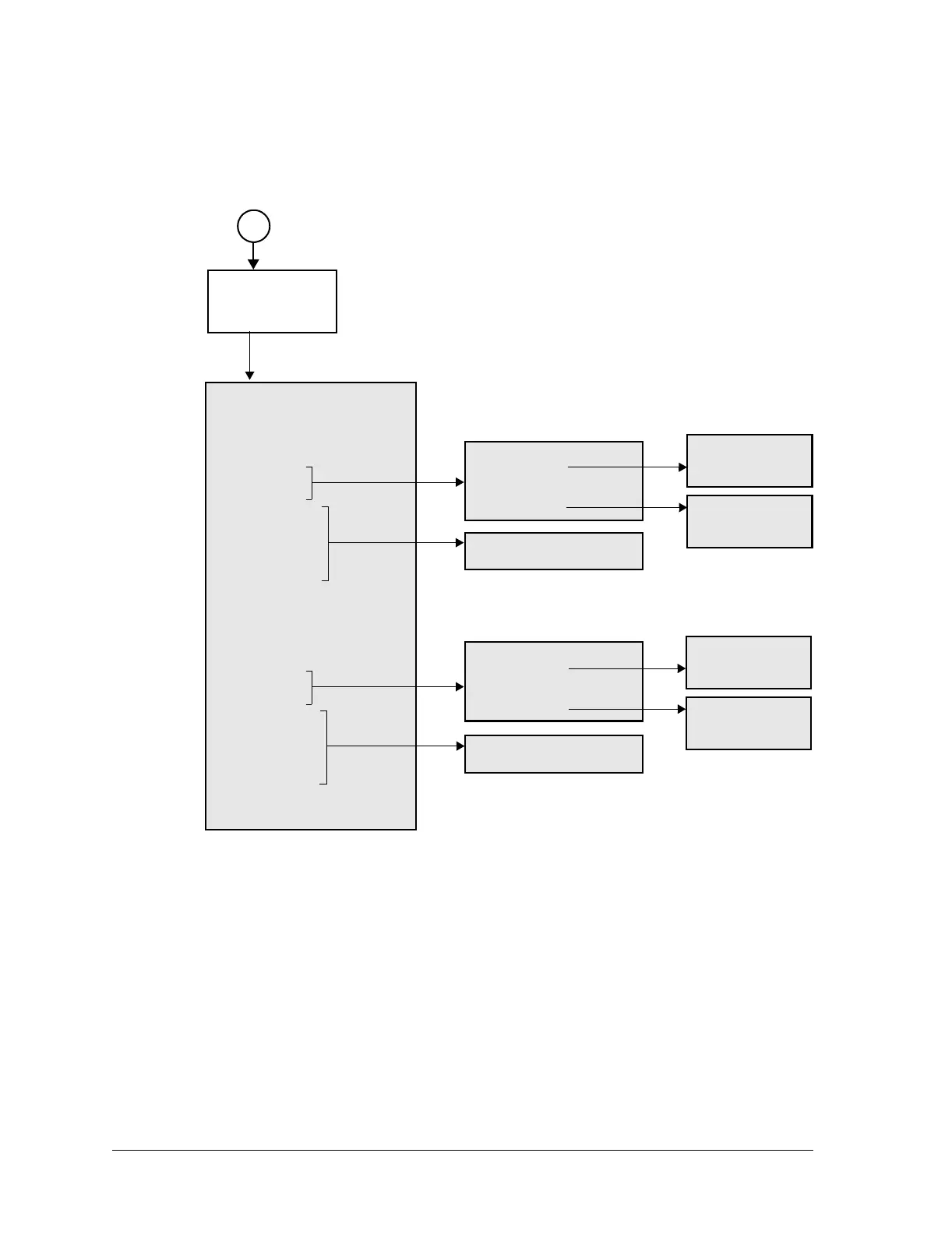

Hidden RF Configuration Submenu
TX-A1 FREQ (KHz)* XXXXXXXX
TX-A2 FREQ (KHz)* XXXXXXXX
RX-A1 FREQ (KHz)* XXXXXXXX
RX-A2 FREQ (KHz)* XXXXXXXX
TX A1 PWR CALIB
TX A2 PWR CALIB
TX A1 100MHZ TUNE
TX A2 100MHZ TUNE
RX A1 100MHZ TUNE
RX A2 100MHZ TUNE
TX-B1 FREQ (KHz)* XXXXXXXX
TX-B2 FREQ (KHz)* XXXXXXXX
RX-B1 FREQ (KHz)* XXXXXXXX
RX-B2 FREQ (KHz)* XXXXXXXX
TX B1 PWR CALIB
TX B2 PWR CALIB
TX B1 100MHZ TUNE
TX B2 100MHZ TUNE
RX B1 100MHZ TUNE
RX B2 100MHZ TUNE
ATPC THRESH LOW DIF** XX
ATPC THRESH HIGH DIF***XX
COARSE UP/DOWN
FINE UP/DOWN
ADJUST HIGH PWR UP/DOWN
HIGH PWR CALIB
ADJUST LOW PWR UP/DOWN
LOW PWR CALIB
WARNING: These
commands may
interrupt traffic.
HIGH PWR CALIB dBm
ACT: XX.X dBm
NEW: ___________
LOW PWR CALIB dBm
ACT: XX.X dBm
NEW: ___________
COARSE UP/DOWN
FINE UP/DOWN
ADJUST HIGH PWR UP/DOWN
HIGH PWR CALIB
ADJUST LOW PWR UP/DOWN
LOW PWR CALIB
HIGH PWR CALIB dBm
ACT: XX.X dBm
NEW: ___________
LOW PWR CALIB dBm
ACT: XX.X dBm
NEW: ___________
G
* You must enter exactly 7 digits for the frequency, but
for 11 GHz systems, you must enter 8 digits.
** Default: 5 dB.
*** Default: 17 dB.
