Harris Constellation - 3 DS3 Remote Loopback; Figure 5-9: Wayside Remote Loopback Test

Constellation™ 2002 June 20
5-10
3DS3 Remote Loopback
Customer test equipment is required for this test. This test loops back the signal
from the far end to the near end. See
Figure 5-9 .
From the Keypad, select
CONTROL > WAYSIDE LPBK > WAYSIDE RMT LPBK

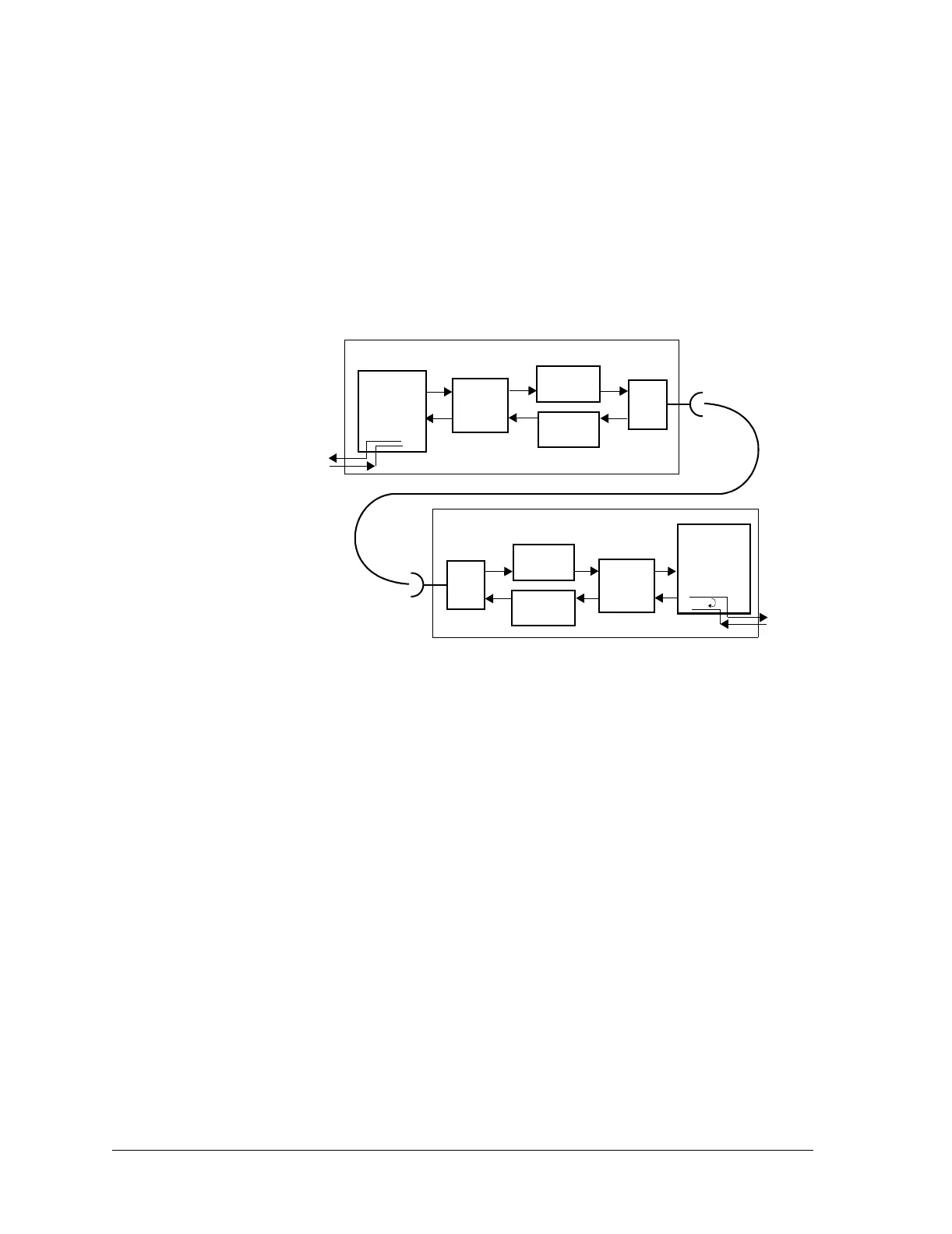

Figure 5-9: Wayside remote loopback test
Hi Cap
Modem
ACU
Tra n s mi t t er
Assembly
ACU
Receiver
Assembly
Local Terminal
Remote Terminal
Hi Cap
Modem
Tran s mi tte r
Assembly
Receiver
Assembly
HLM-155
Wayside
Customer
test set
Wayside
HLM-155
