MLA150
6 Job Setup
38 User Guide
6.3 Load Design
In Draw Mode there is no design loading procedure because this mode is for
exposing boxes, circles and ellipses of arbitrary size limited only by the camera
field. Skip this subchapter and go to 6.5 Load Substrate.
After you have selected one of the exposure modes (see 6.1 Select Job) and
determined the appropriate substrate template (see 6.2 Select Substrate Template), you
load the design. For loading a design that is not in the list, follow the instructions given
in 6.4 Convert Design. The following sections contain instructions on design loading.
Even though the loading procedures differ only slightly from each other in the different
modes, read the section that corresponds to the exposure mode you are about to use.
6.3.1 STANDARD: FIRST EXPOSURE

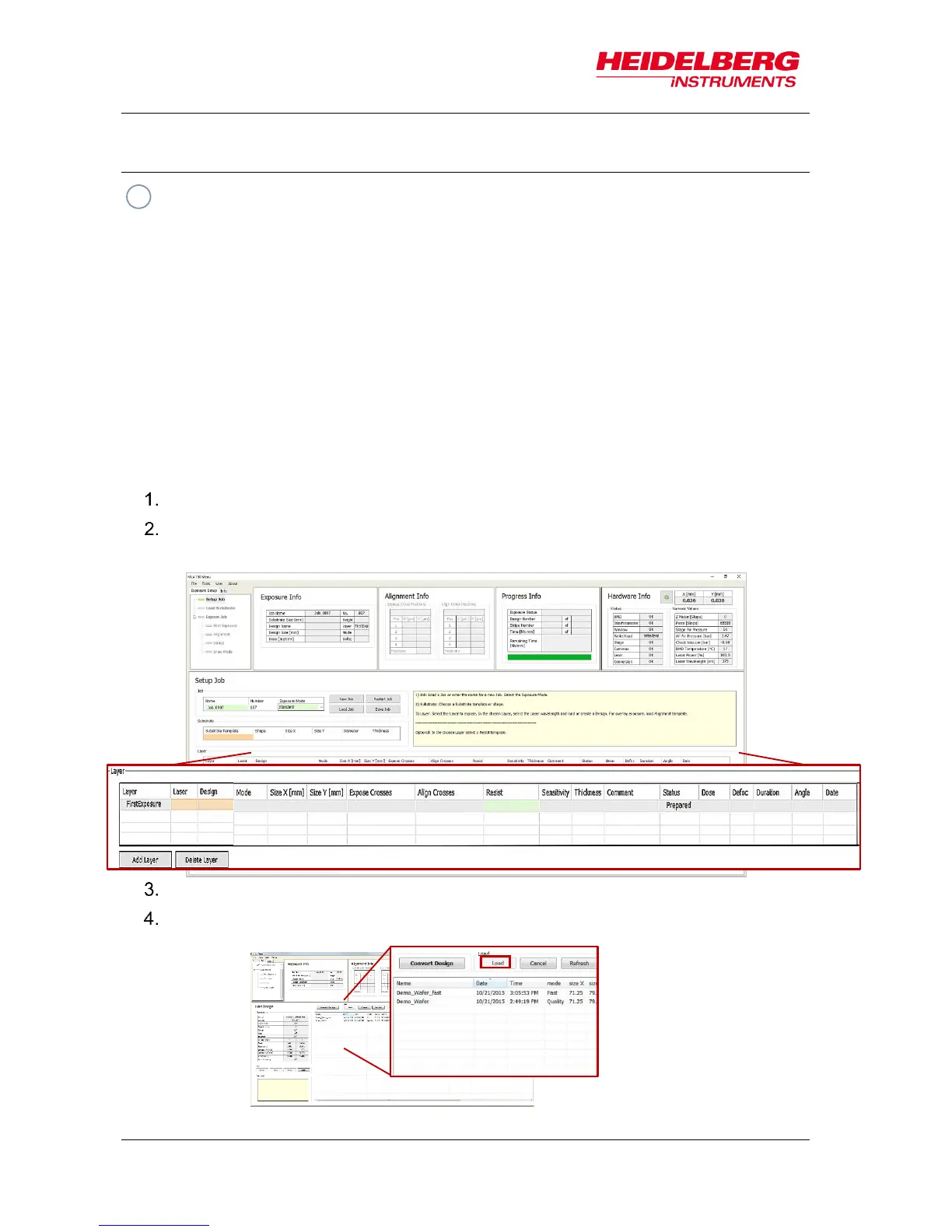

In the Layer frame:
If available, select a laser from the dropdown list in the Laser field.
Double-click into the value field titled Design. A panel opens containing a list of
available design files.
From the list, select the required design with a left-click.
Click Load. Alternatively, double-click on the design name.
