MLA150
6 Job Setup
User Guide 47
6.6.1 DRAW IMAGE

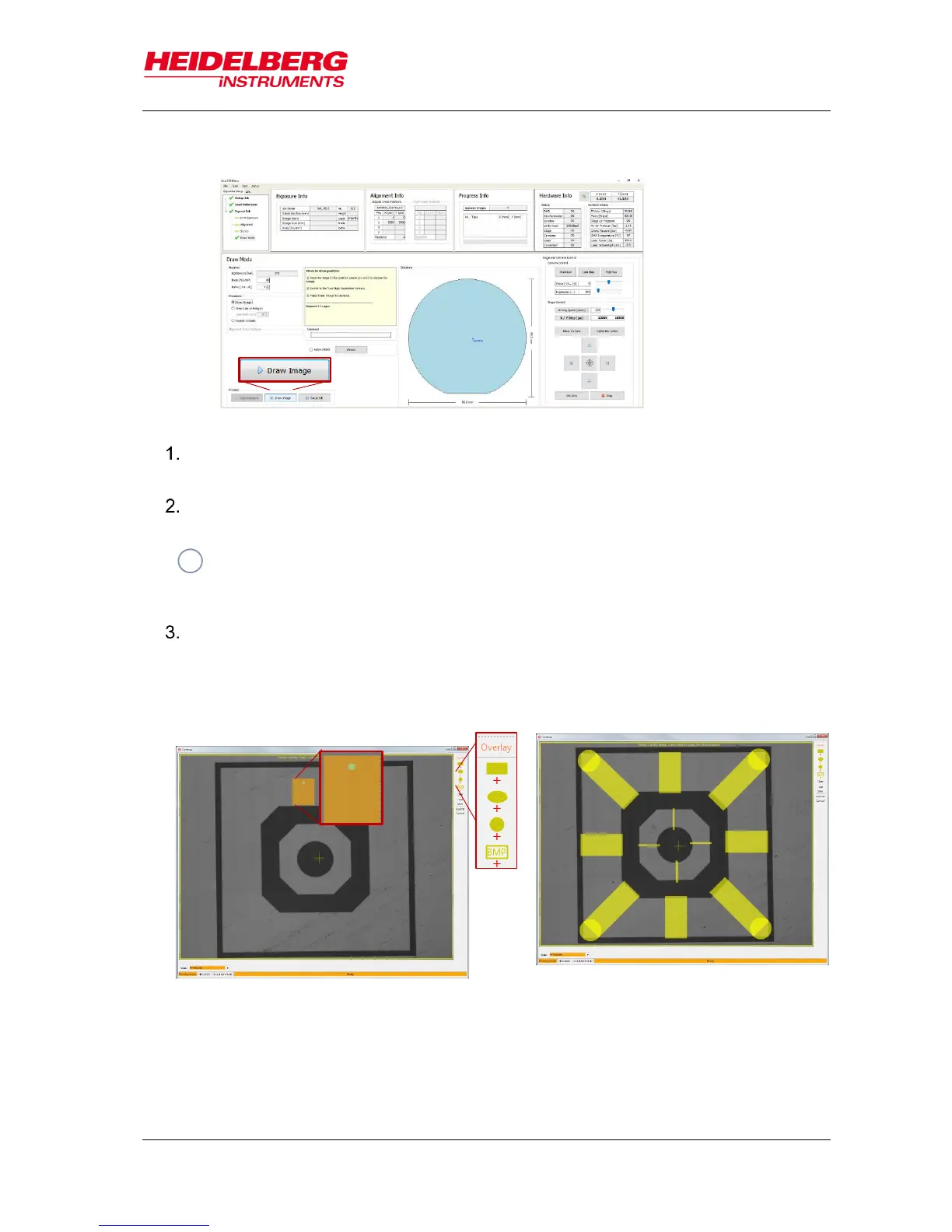

Click Draw Image and select the area for the structure on the substrate inside the
camera window (use the Stage Control section for moving on the substrate).
In the camera window select the shapes of the structures that should be drawn
onto the substrate by clicking on the corresponding icon.
You can also load an existing file by clicking Load and selecting the file from
the corresponding folder (usually C:\HIMT\Designs\Bitmaps). To directly
load a bitmap file click BMP located below the structure icons.
To drag the structure to the desired position click into the structure and move the
cursor with the mouse button held down. To rotate the structure click into the
green dot inside the structure and move the cursor without releasing the mouse
button until the desired position has been found.
