A21
Rack Mounting

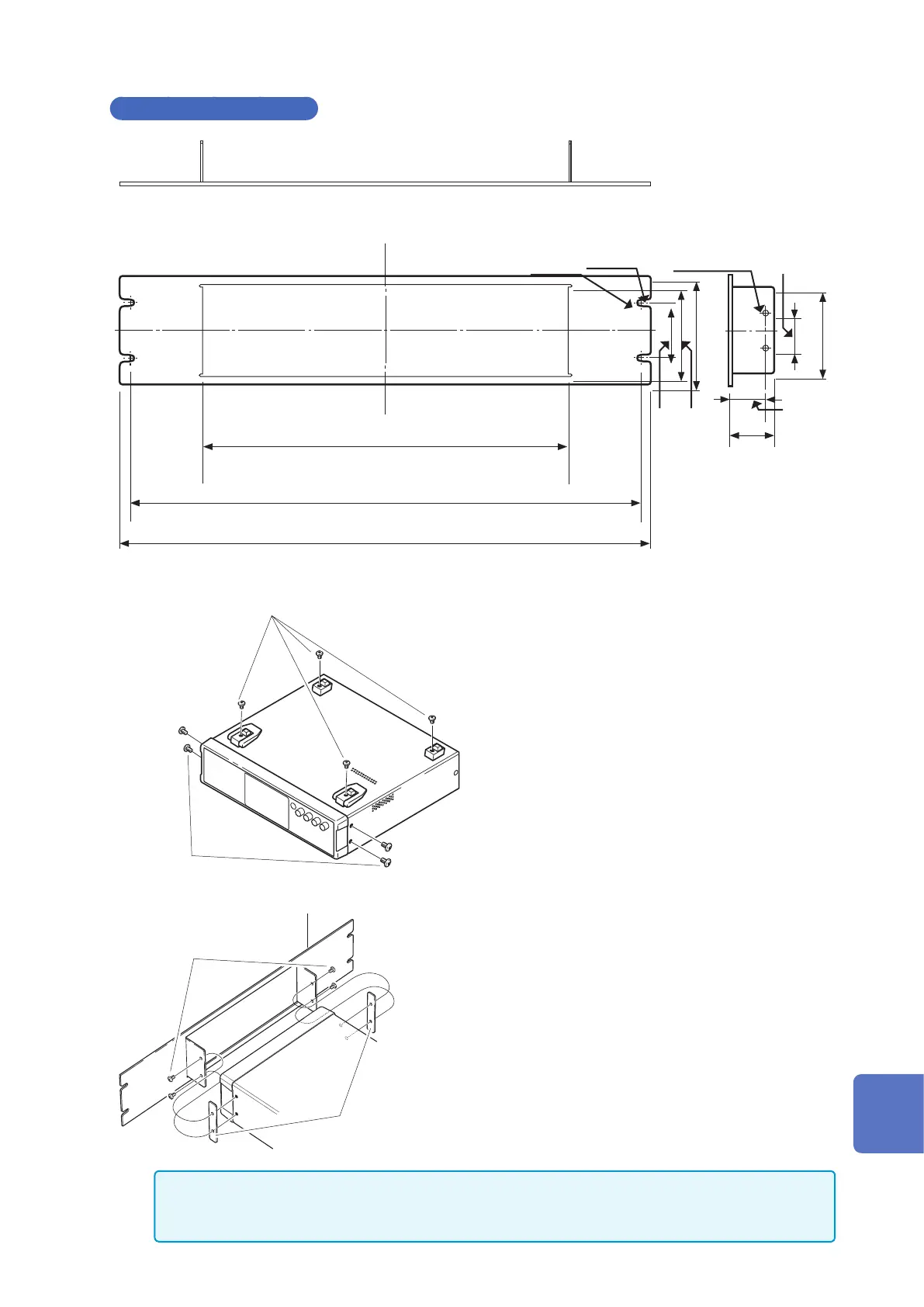

Rack Mounting Plate (JIS)
330 mm
50 mm
82 mm
99 mm
32.5 mm
40 mm
78 mm
32 mm
2×
φ
4.5 mm
2×C2
2×R3
460 mm
480 mm
M3 × 6 mm
M4 × 6 mm
1
Remove the feed from the bottom of the
instrument, and the screws from the sides
(four near the front).
Rack Mounting Plate (EIA, JIS)
M4 × 10 mm
Spacers
2
Installing the spacers on both sides of the
instrument, afx the Rack Mounting Plate
with the M4 × 10 screws.
• When installing into the rack, reinforce the installation with a commercially available support
stand.
• Ensure that the vents on the sides, rear, and bottom are not blocked.
