System Testing
7.5 System Testing
I/O TEST
The input and output test of the EXT. I/O can be performed. The ON and OFF of the output signal
can be switched manually. In addition, the status of the input signal can be monitored on the
screen.

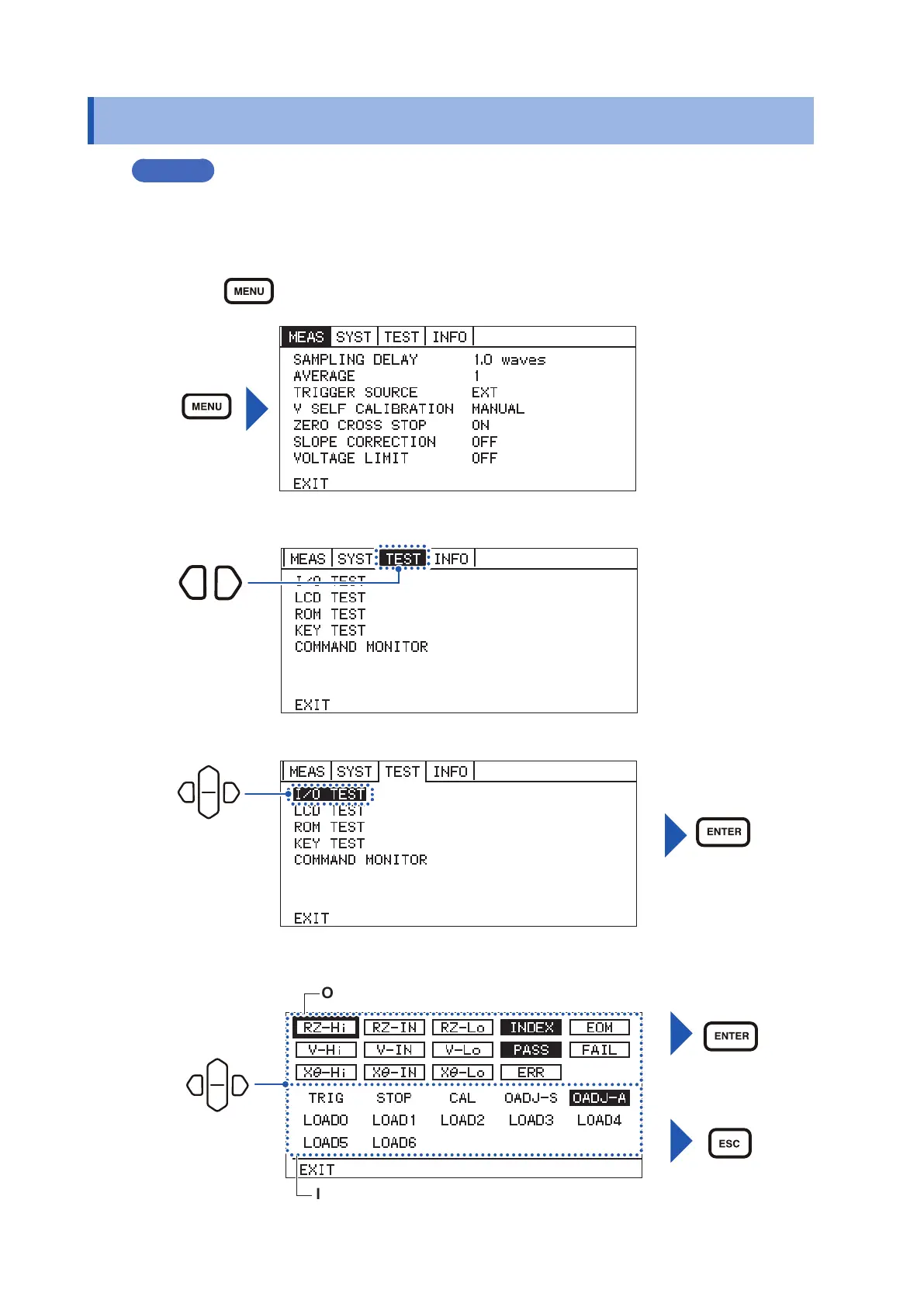

1
Press (MENU). (The setting screen appears.)
2
Select [TEST] tab.
Selection
3
Select [I/O TEST].
Selection
To Testing screen
4
Test I/O devices.
(Commands and queries due to communication could not be performed during I/O testing.)
Selection
Signal ON / OFF
ON: Reverse display
OFF: Normal display
Cancel
Output signal: Signals can be operated.
Input signal: Signal state is displayed.
To Next Page
