38
Starting the Measurement After the Response of the Measuring Object is Stable (Sample Delay Function)
Inputting the external trigger
• When inputting from the key
On the measurement screen, press
(START/STOP) to perform measurement once.
• When inputting from the EXT.I/O
If the TRIG terminal of the EXT.I/O terminal is short-circuited to ISO_COM, the measurement is
performed once. (p. 80)
• When inputting from the communication interface
When the
*TRIG
command is received, measurement is performed once.
IMPORTANT
• When the function is set in the internal trigger, the input from the EXT.I/O and
*TRG
command
are ignored, and the voltage limit function is enabled. If the measuring object continues to
be connected with an internal trigger set, may cause continuous charging or discharging.
Therefore, remove the measuring object from the instrument after measurement.
• Measurement will stop if
(START/STOP) is pressed during measurement.
4.2 Starting the Measurement After the Response
of the Measuring Object is Stable (Sample Delay
Function)
When measuring impedance, set the delay (delayed time) from applying AC to the start of the
sampling. There are two methods to set the delay, one is to use the frequency of the Alternating
Current signal for setting and the other is to use the deviation of the offset voltage uctuation for
setting.

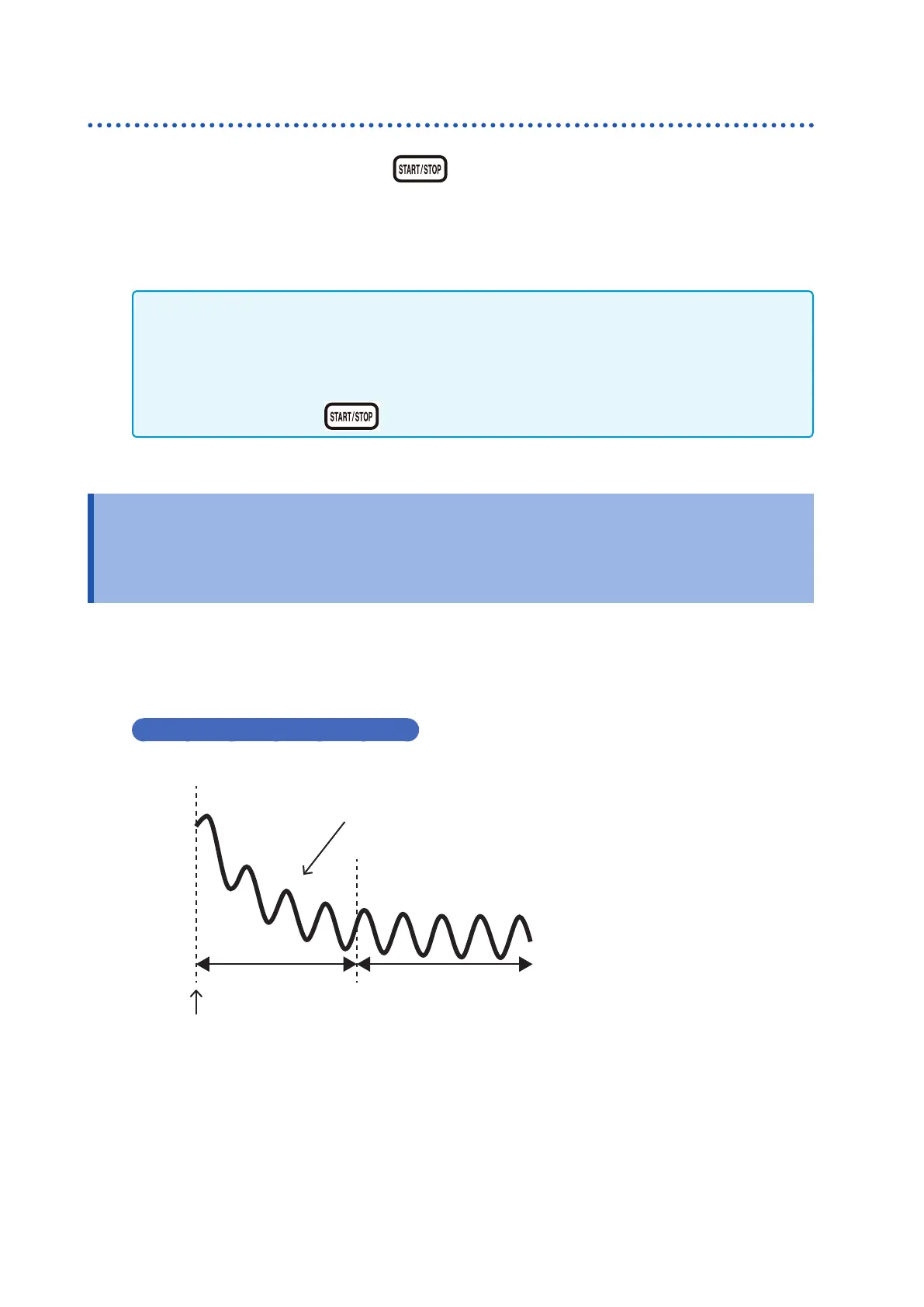

Settings based on waveform (WAVE)
Alternating Current response of the battery
Application of Alternating Current
Set the delay with the frequency of the Alternating Current signal.
(This is an example for delay of frequency 4.)
Sample delay
Sampling
