Hioki BT4560 - Appx. 11 Calibrating the Instrument

A18
Calibrating the Instrument
Appx. 11 Calibrating the Instrument
For the calibration environment, refer to the accuracy guarantee conditions (p. 112).
Calibrating impedance measurement
• Use a standard resistor with non-aged degradation and good temperature characteristics.
• Use a resistor that enables one to congure the four-terminal pair structure, to not be subject to the effect of
the lead wires of the resistor.

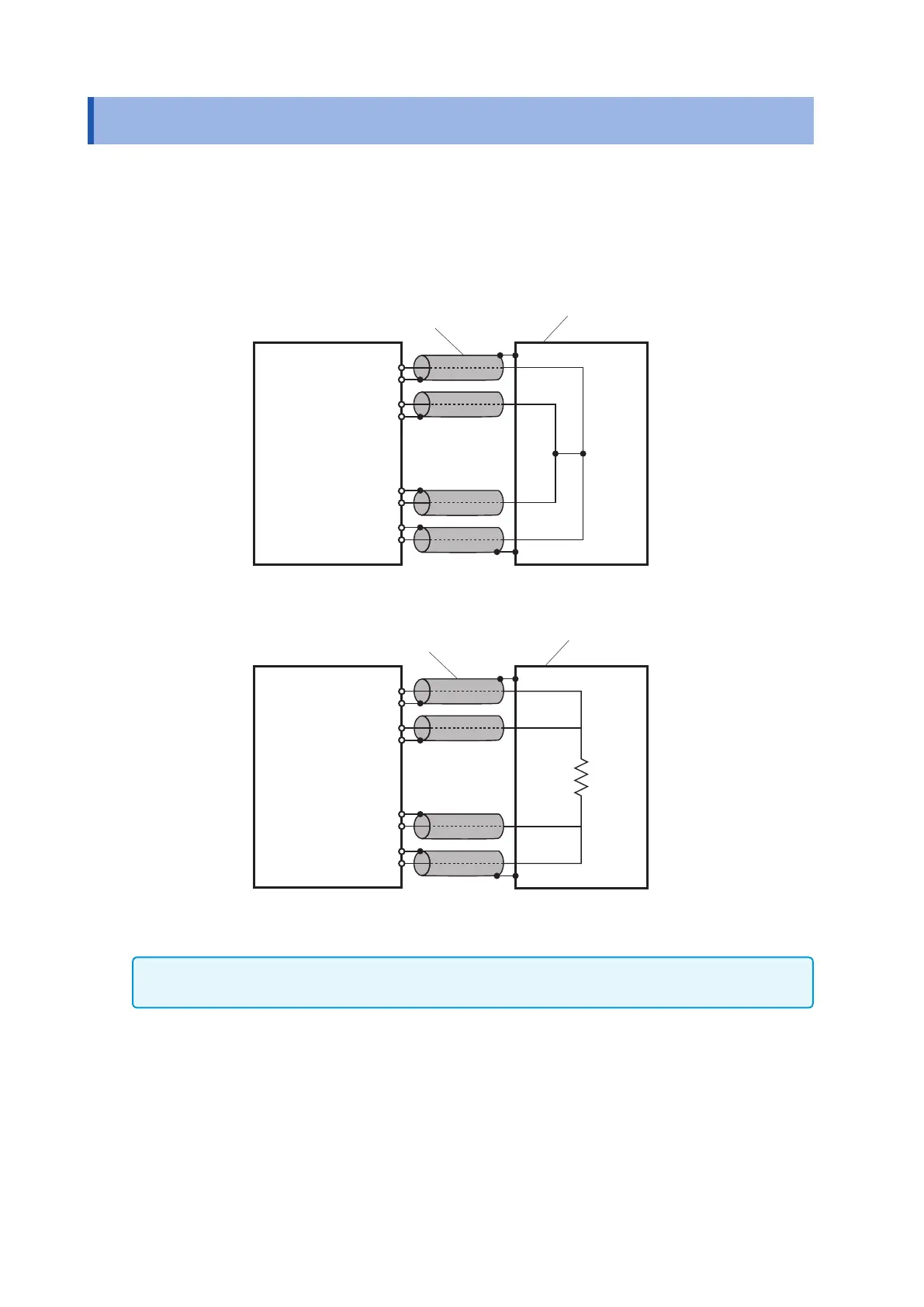

• For connection between this instrument and the standard resistor, refer to the gure shown below.
The instrument
0
Ω
jig
SOURCE-H
SENSE-H
SENSE-L
SOURCE-L
Shield
Shield box
Figure. Calibrating 0
Ω
The instrument
Standard resistor
SOURCE-H
SENSE-H
SENSE-L
SOURCE-L
Shield
Shield box
Figure. Connecting to the standard resistor
Contact your authorized Hioki distributor or reseller for standard resistor to be used for
impedance calibration.
