Customization of Measurement
Conditions
4.1 Setting the Measurement Starting Conditions
(Trigger Functions)
There are two methods to set the measurement starting conditions, which are described below.
External trigger
When (START/STOP)
is pressed or the external trigger signal is input, the
measurement starts.
Internal trigger
Trigger signals are automatically generated internally to perform the automatic-
measurement.

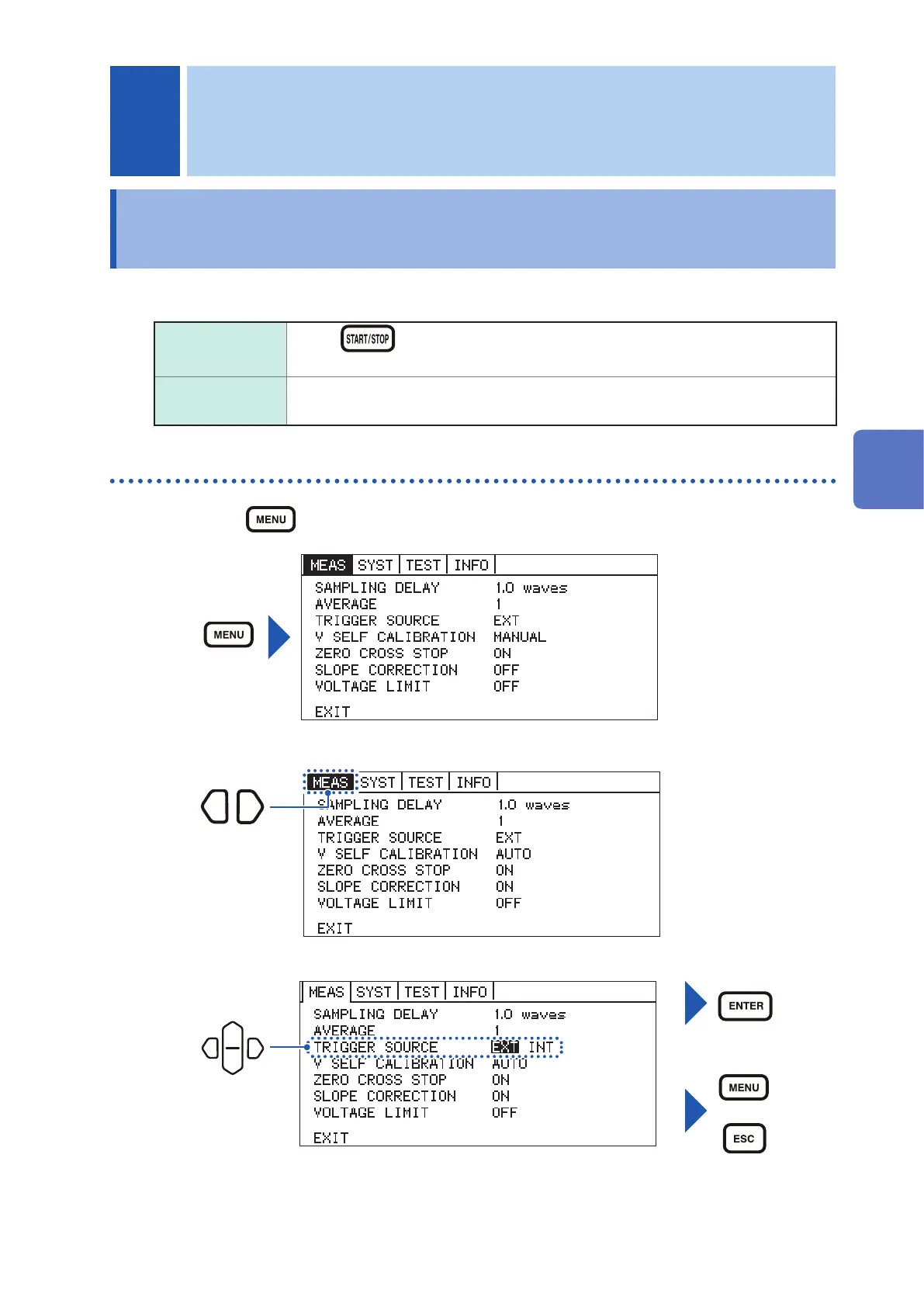

Setting the trigger
1
Press (MENU). (The setting screen appears.)
2
Select [MEAS] tab.
Selection
3
Select [EXT] (external trigger) or [INT] (internal trigger).
Selection
Conrm
(or)
Cancel
