Hioki BT4560 - 5 Judging Measurement Results (Comparator Function)

49
5
Judging Measurement Results
(Comparator Function)

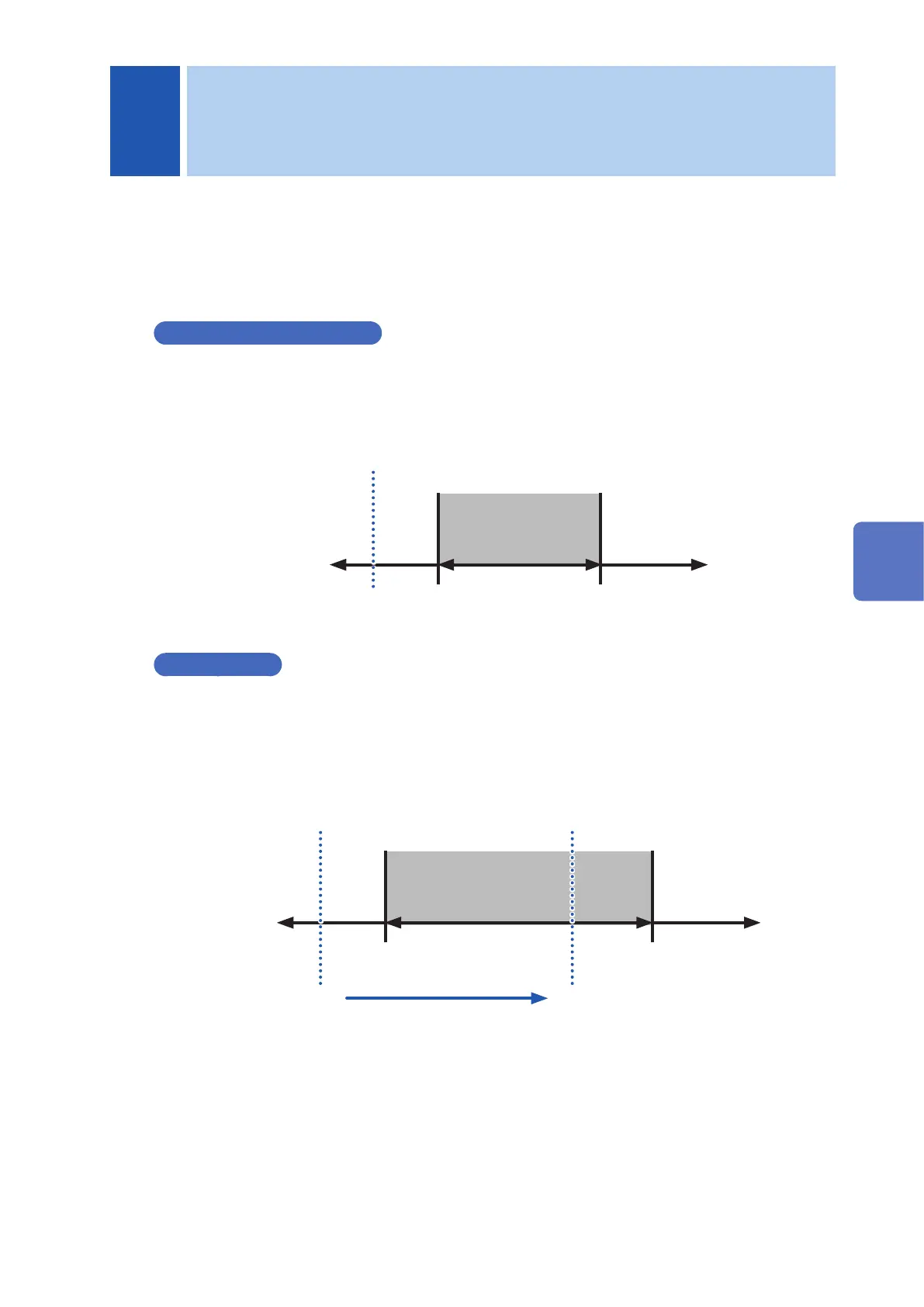

The function judges that the measured value is in the range of Hi (upper limit value < measured
value), or IN (lower limit value ≤ measured value ≤ upper limit value), or Lo (measured value <
lower limit value) compared to the preset upper and lower limit value.
Upper and lower limit values and absolute values (absolute values setting is for voltages [V] only)
Upper and lower limit values
The function judges whether the measurement value is in the Hi, IN, or Lo range for the upper and
lower limit values set previously.
(Example: If the upper limit is 3 V, Lower limit is 2 V, and the measurement value is 1.5 V)
2 V 3 V
Lower limit value Upper limit value
INLo
Judgment
Hi
1.5 V
Measurement value
(Lo Judgment)
Absolute value
The function judges whether the absolute value of the measurement value is in the Hi, IN, or Lo
range for the upper and lower limit values set previously.
Even if wiring is connected in reversed polarity, judgment can be performed correctly.
(Example: If the upper limit 3 V, Lower limit is -1 V, and the measurement value is -2 V)
-1 V
3 V
Lower limit value Upper limit value
INLo
Judgment
Hi
-2 V
Measurement value
2 V
(IN judgment)
Absolute value
