Rack Mounting
Appx. 12 Rack Mounting
By removing the screws on the sides, this instrument can be installed in a rack mounting plate.
WARNING
Use the screws that are mounted during shipment to avoid instrument damage
and electric shock accidents. (Standard: M3 × 6 mm, sides: M4 × 6 mm, when
installing rack mounting bracket: M4 × 10 mm)
If screws are lost or damaged, contact your authorized Hioki distributor or reseller.

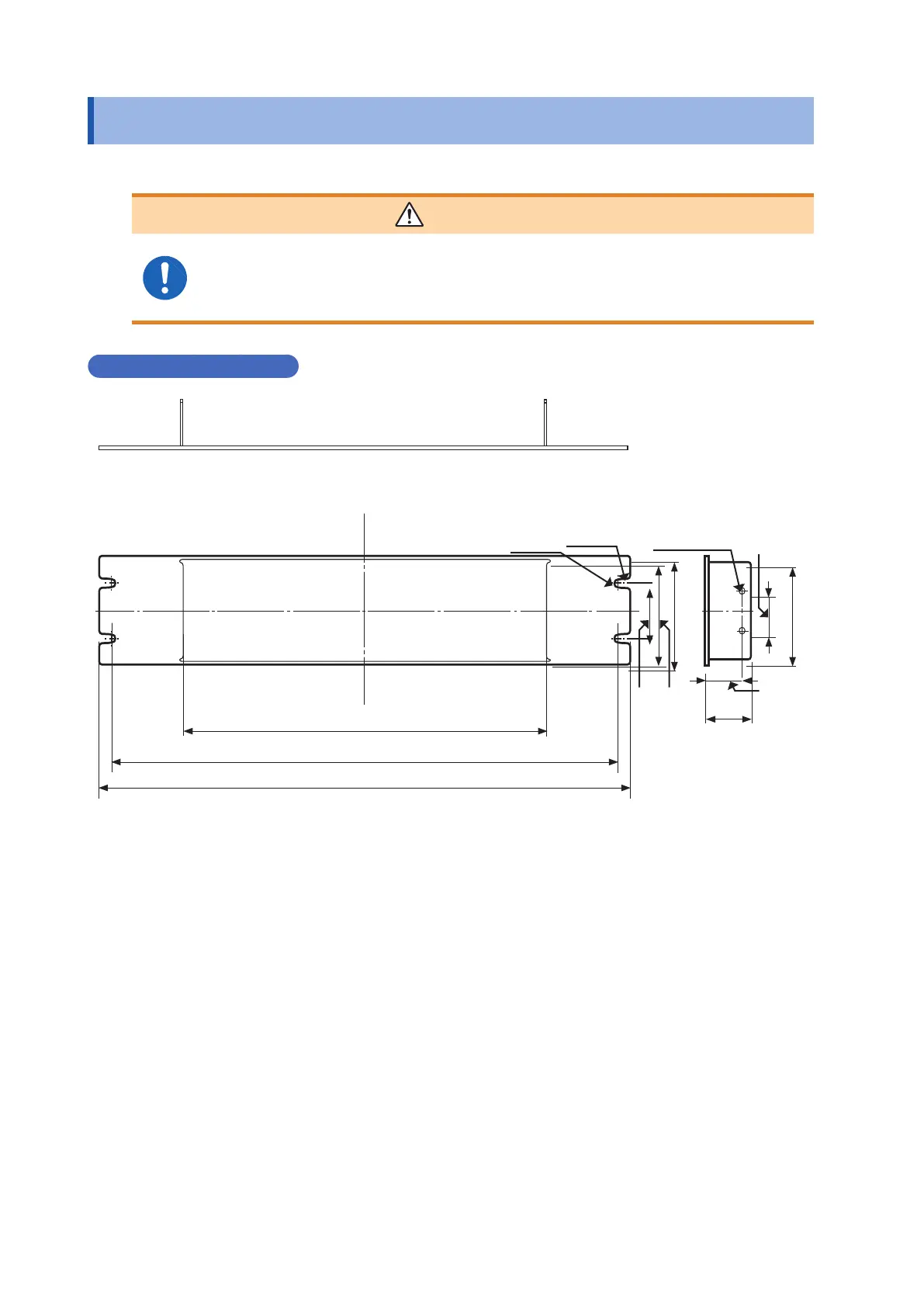

Rack Mounting Plate (EIA)
330 mm
460.1 mm
482.5 mm
44.5 mm
82 mm
88 mm
32.5 mm
40 mm
78 mm
32 mm
2×
φ
4.5 mm
2×C2
2×R3.5
