Setting the Upper and Lower Limit Value
5.2 Setting the Upper and Lower Limit Value
When making the comparator function effective, set the upper and lower limit value, which are used
for the judgment. The following describes the setting method, taking R, X, V as the examples.
Setting examples
R Upper limit value: 7.5 m
Ω
Lower limit value: 7 m
Ω
X No judgment
V Upper limit value: 5 V Lower limit value: 4 V
1

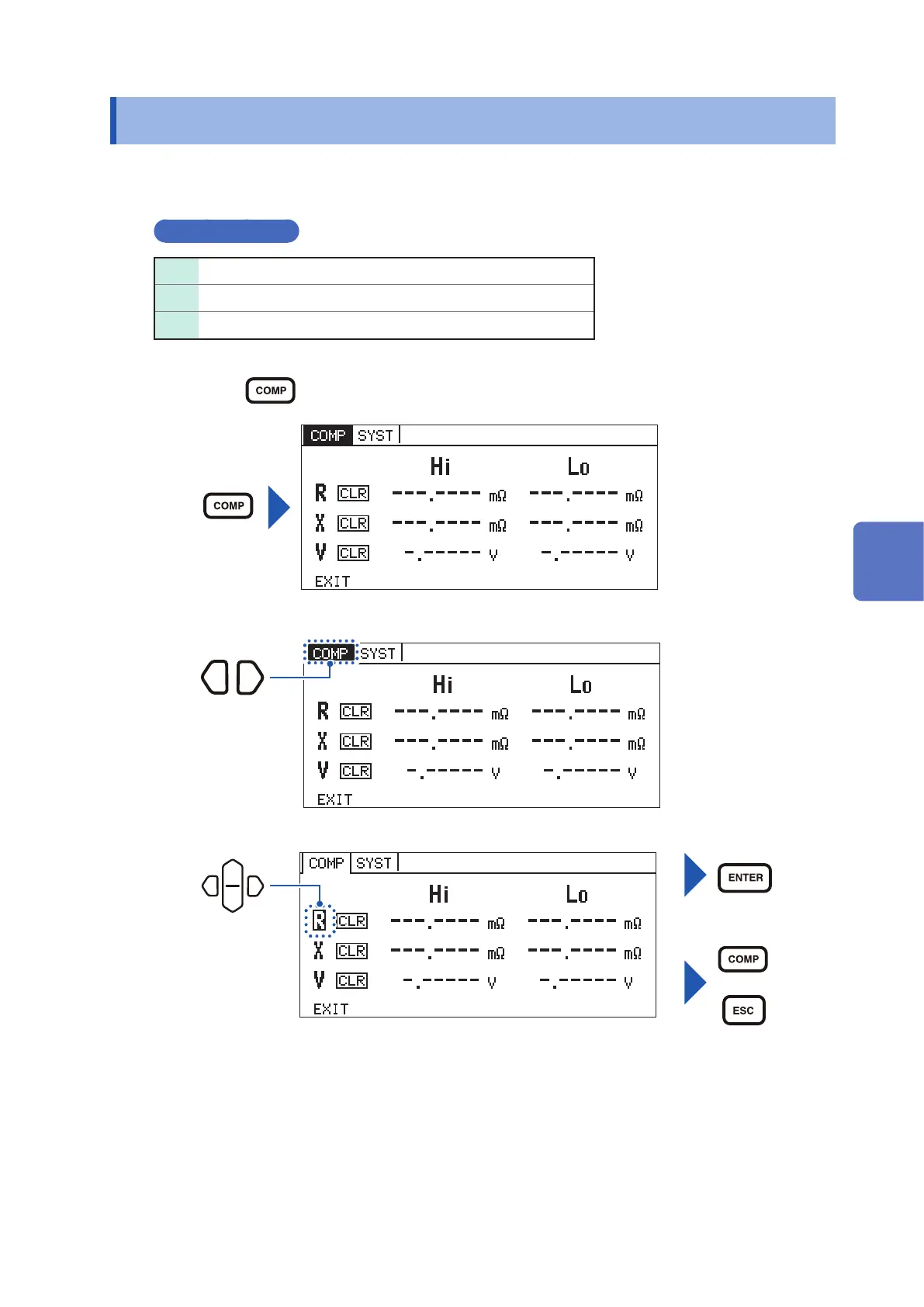

Press (COMP). (The setting screen appears.)
2
Select [COMP] tab.
Selection
3
Select parameter [R].
Conrm
(or)
Cancel
Setting
5
Judging Measurement Results (Comparator Function)
