Basic Measurement

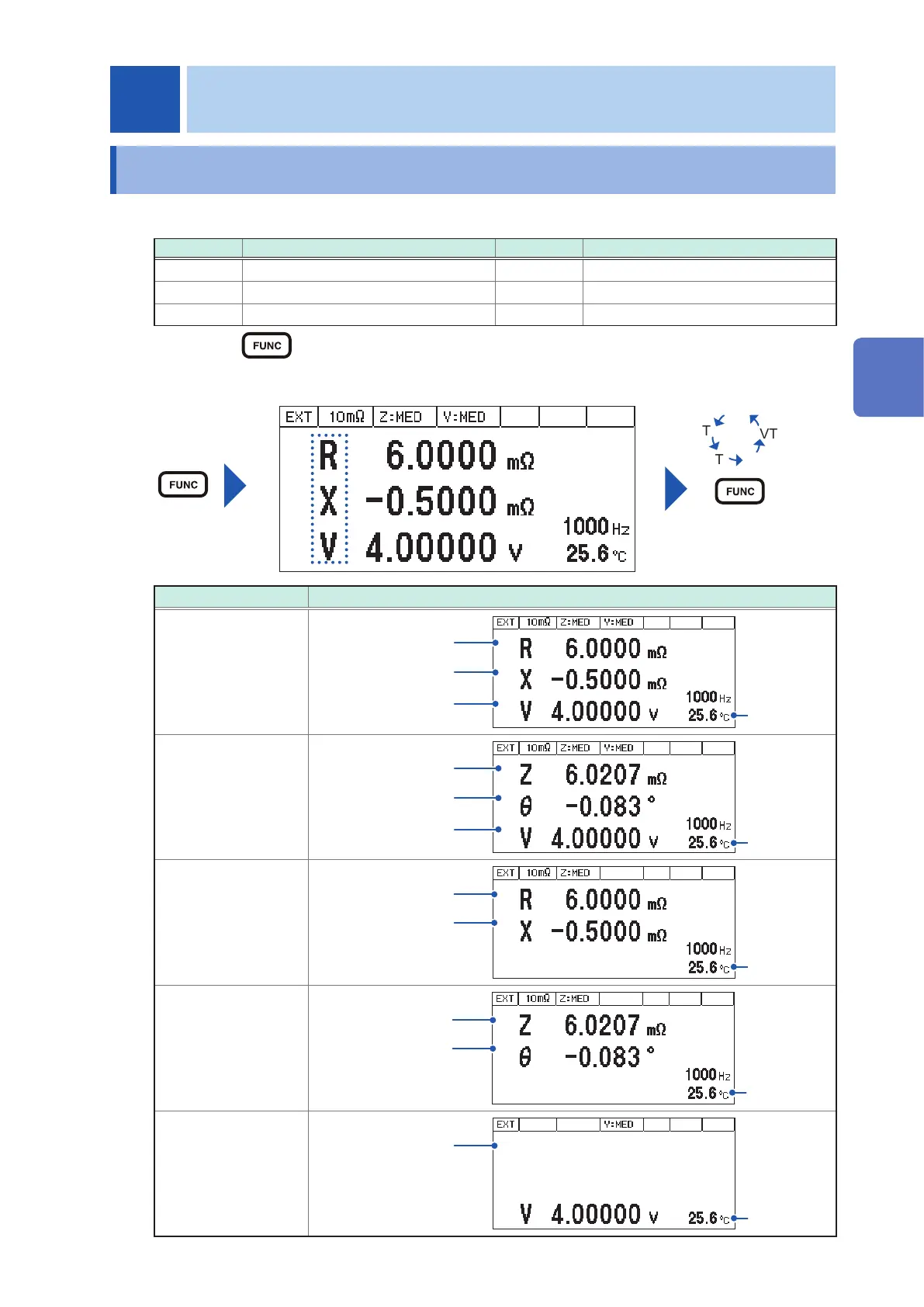

3.1 Selecting the Measurement Functions
Set the measurement functions.
Parameters
Measurement items
Parameters
Measurement items
Z
Impedance
X
Reactance
θ
Phase angle
V
Voltage
R
Resistance
T
Temperature
By pressing
(FUNC) the measurement functions are switched.
For the selectable functions, refer to Table below.
Measurement
functions switches.
Z
θ
VT
RXVT
RXT
Z
θ
T
VT
Measurement functions Screen
R, X, V, T
Resistance
measurement value
Reactance
measurement value
Voltage
measurement value
Temperature
Z,
θ
, V, T
Impedance
measurement value
Phase angle
measurement value
Voltage
measurement value
Temperature
R, X, T
Resistance
measurement value
Reactance
measurement value
Temperature
Z,
θ
, T
Impedance
measurement value
Phase angle
measurement value
Temperature
V, T
Voltage measurement
value
Temperature
