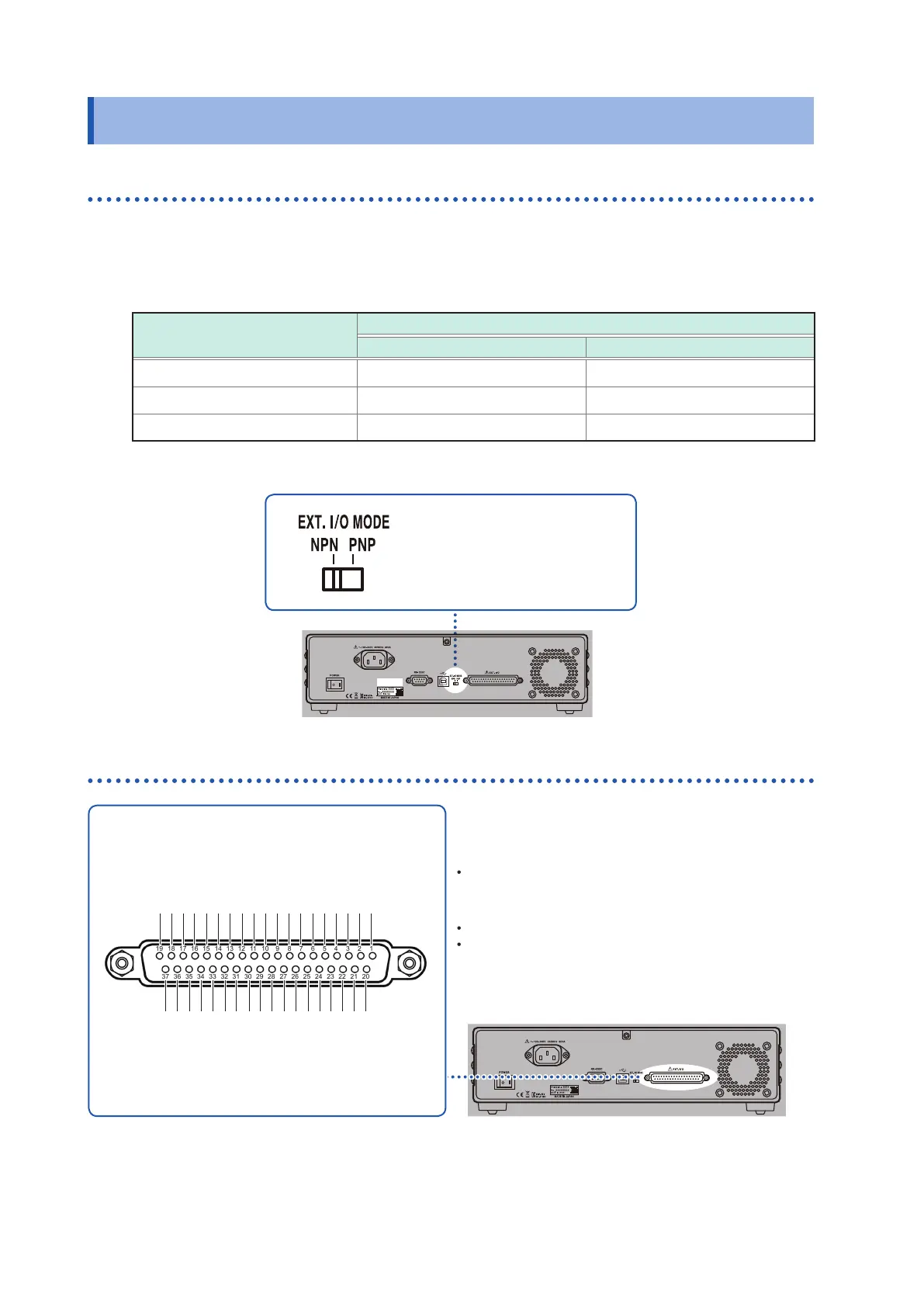

External Input/output Terminals and Signals
8.1 External Input/output Terminals and Signals
Switching the current sink (NPN) /the current source (PNP)
Before switching, be sure to read “Before switching the current sink (NPN) and the current source
(PNP)” (p. 10).
The type of the PLC (programmable controller) that can be supported is changed by the NPN/PNP
switch. The factory default is set to the NPN.
NPN/PNP switch setting
NPN PNP
BT4560 input circuit Corresponding to sink output Corresponding to source output
BT4560 output circuit non-polarity non-polarity
ISO_5V output +5 V output -5 V output
Left: Current sink (NPN)
Right: Current source (PNP)
Arranging the usage connector and the signals
Usage connector
• 37-pin D-sub socket contact with #4-40 inch screws
Mating Connectors
• DC-37P-ULR (solder type)
• DCSP-JB37PR (compression contact type)
Manufactured by Japan Aviation Electronics Industry,
Ltd.
Other comparable products
EXTI
 /  O
2 14 36 58 79
202122232425262728293031323334353637
141516171819 10111213
START (TRIG)
0ADJ_ALL
STOP
LOAD1 LOAD3 LOAD5
(Don’t use)
ISO_5V
ISO_COM
ERR
RorZ_HI
RorZ_LO
V-IN
Xor
θ
-HI
Xor
θ
-LO
(Don’t use) (Don’t use)
PASS
(Don’t use)
0ADJ_SPOT CAL LOAD0 LOAD2 LOAD4 LOAD6 (Don’t use) ISO_COM EOM INDEX RorZ_HI V-HI V-LO Xor
θ
-IN
(Don’t use) (Don’t use) (Don’t use) FAIL
