Names and Functions of Parts

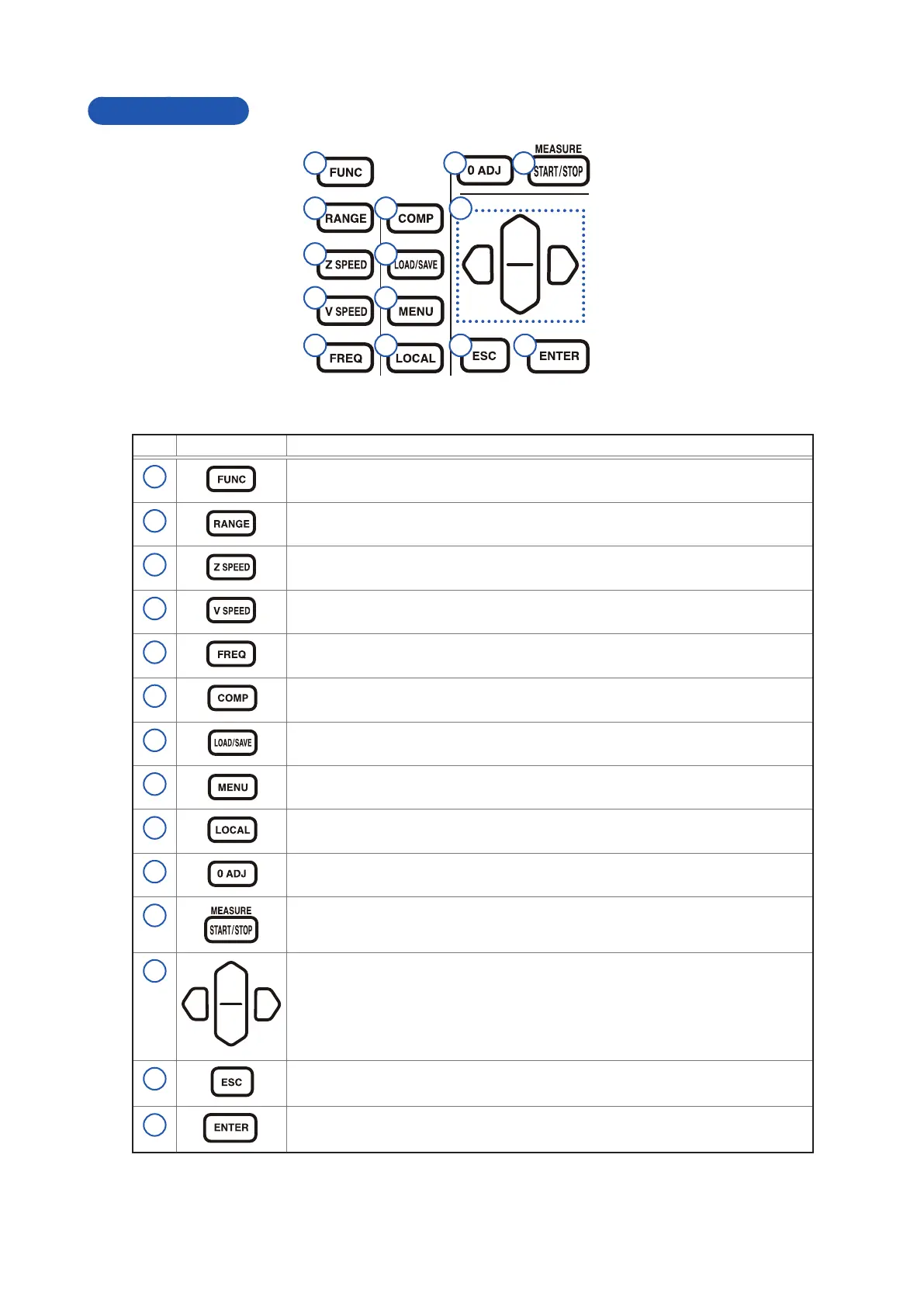

Operating keys
1
2
3
4
5
6
8
7
9
10 11
12
13 14
Key Description
1
Selects the measurement function (combination of the voltage measurement and
the impedance measurement).
2
Sets the measurement range.
3
Sets the measurement speed of impedance.
4
Sets the measurement speed of voltage.
5
Sets the measurement frequency of impedance.
6
Sets the power switch of ON-OFF and the upper and lower limit values ,etc. of the
comparator.
7
Saves and reads the measurement conditions.
8
Sets each of the functions (Trigger, Sample delay, Self-calibration, etc.).
9
Releases the remote state and enables key operation.
10
Performs the zero adjustment.
11
Starts and stops the measurement.
12
• Moves setting items and digits.
• Changes numerical values.
13
• Cancels the settings being set.
• Erases a display message.
14
Conrms the setting.
