Basic Measurement Examples
4

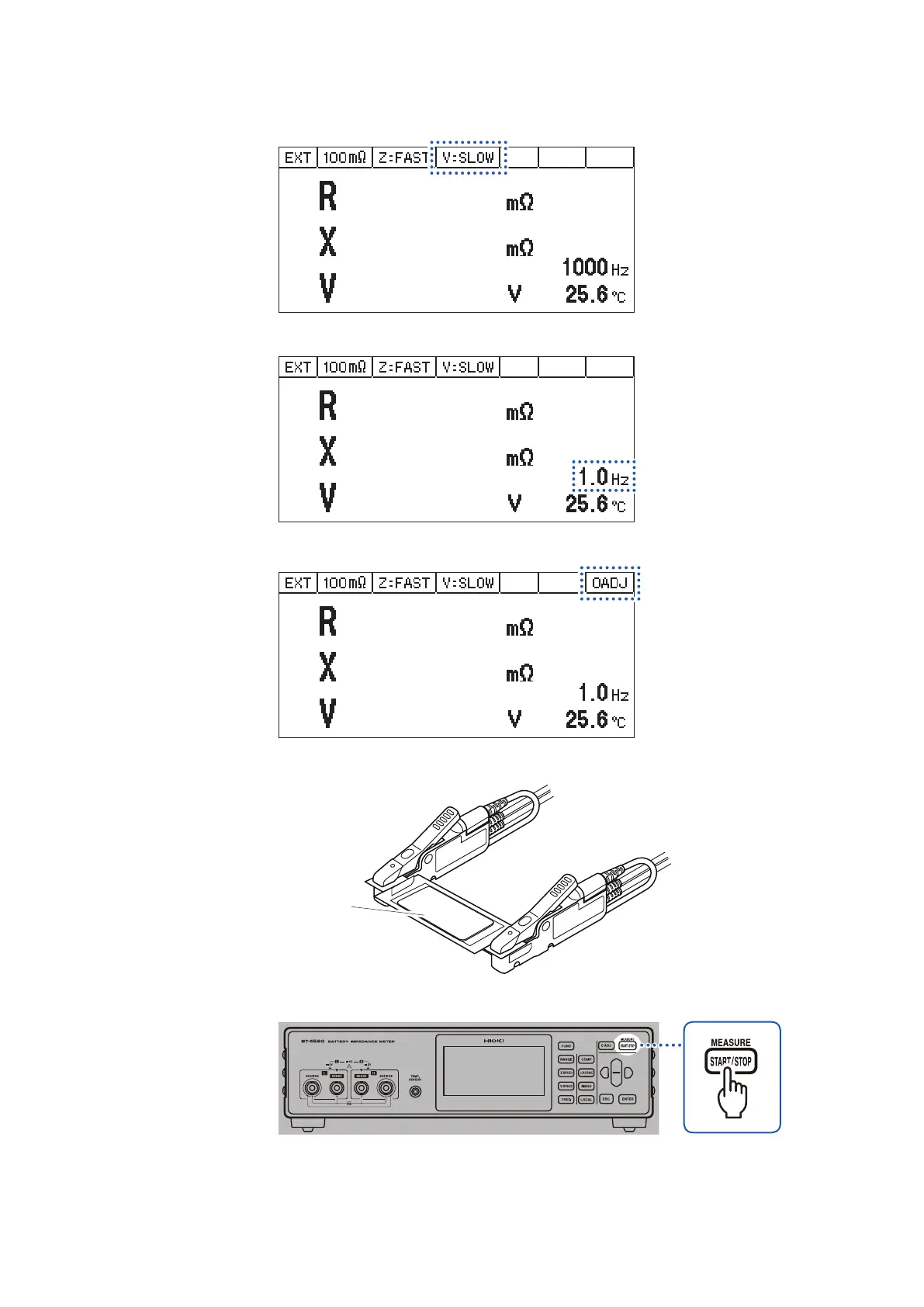

Set the speed of the voltage measurement (V) at [SLOW]. (p. 23)
5
Set the measurement frequency of impedance at 1 Hz. (p. 24)
6
Connect the zero adjustment connection and then perform the all zero adjustment. (p. 26)
7
Connect the battery cell.
Battery cell
8
Press START/STOP to measure.
To Next Page
