Compensating the Potential Slope Due to Electric Discharge (Slope Correction Function)
4.5 Compensating the Potential Slope Due to
Electric Discharge (Slope Correction Function)
During impedance measurement, the measurement signal may drift due to characteristics of the
battery and input impedance of the measuring instrument. This function performs compensation for
linear drift.

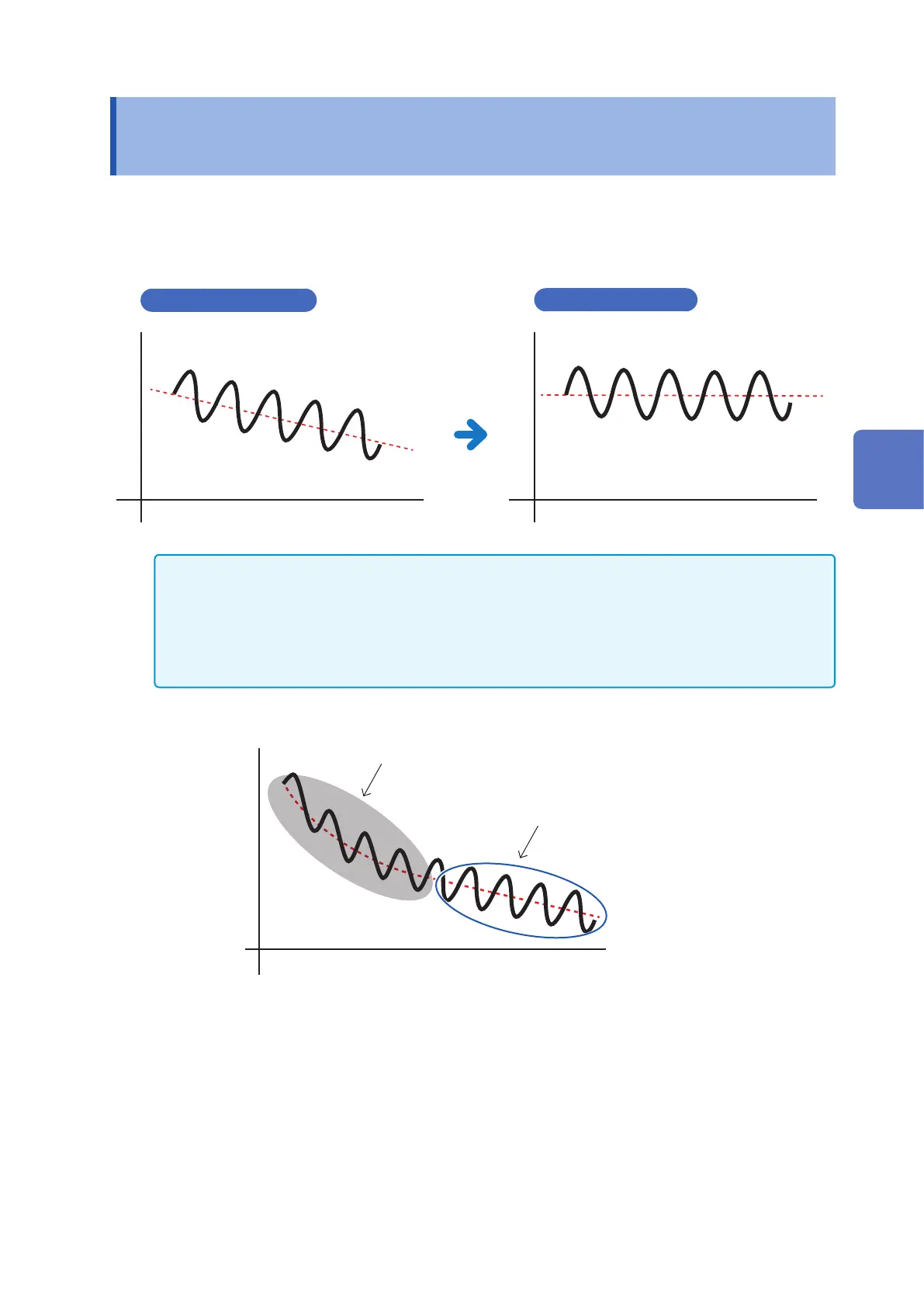

V V
Before compensation
After compensation
IMPORTANT
Compensation will be performed for linear drift.
Proper compensation cannot be performed for uctuations that are not linear as shown below.
“Starting the Measurement After the Response of the Measuring Object is Stable (Sample Delay
Function)” (p. 38) is used, and wait to measure until the measuring object’s response time
becomes stable.
V
Proper compensation cannot be performed
for drifts that are not linear.
Compensation is enabled for
linear drift.
