Rack Mounting
Appx. 7 Rack Mounting
By removing the screws on the bottom, this instrument can be installed in a rack
mounting plate.
WARNING
Observe the following precautions regarding the mounting screws to
avoid instrument damage and electric shock accidents.
• When removing the Rack Mounting Plate to return the instrument
to stand-alone use, replace the same screws that were installed
originally. (Feet: M3 × 6 mm)

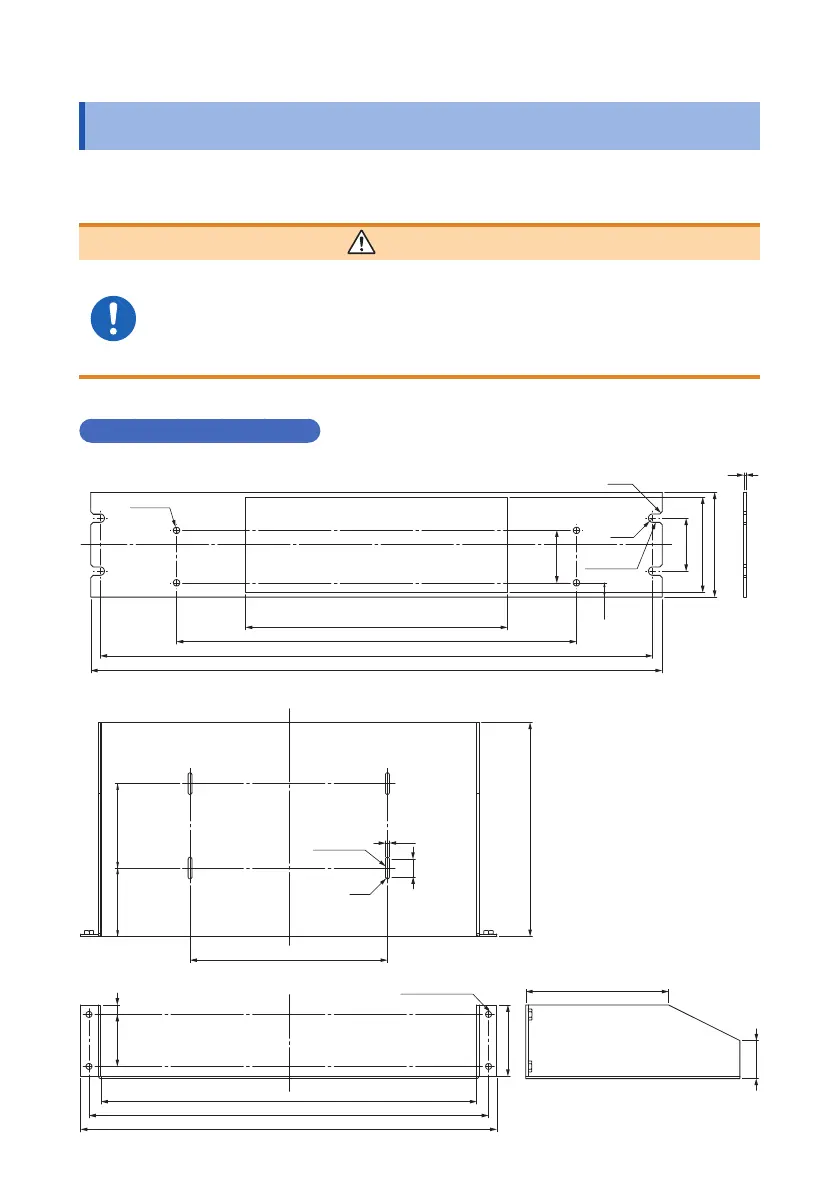

Rack Mounting Plate template diagram and installation procedure
Rack Mounting Plate (EIA)
44
4 ×
f
5.4
2 × C2
R3.5
Same shape
at 4 locations
44.5
80
88.1
(2)
Cold rolled steel sheet t2.0
220
336
464
480
12
180
166
57.5 71
15
3.2
(R)
Same shape
at 4 locations
316
336
350
43.7
8
4 × M5 press nuts
60
120
Cold rolled steel sheet t2.0
32
