QoS/Priority
100
6.4
IP DSCP mapping
RM Web L3P
Release
4.1
03/08
6.4 IP DSCP mapping
The IP DSCP mapping table allows you to assign a traffic class to every
DSCP value.
Enter the desired value from 0 to 7 in the Traffic Class field for every
DSCP value (0-63).

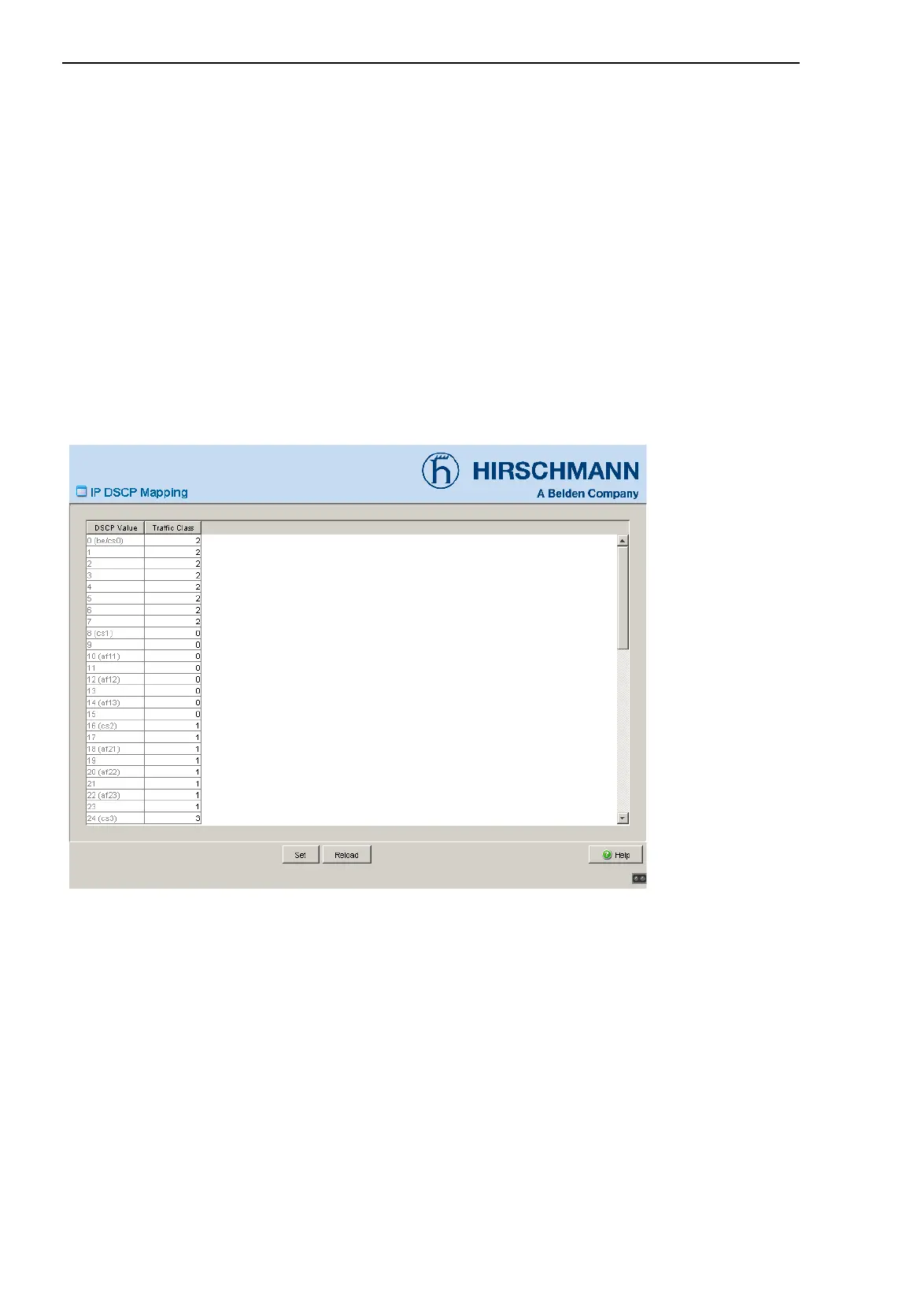

Figure 38: IP DSCP mapping table
The different DSCP values get the device to employ a different forwarding
behavior, the Per-Hop Behavior (PHB).
PHB classes:
X Class Selector (CS0-CS7): For reasons of compatibility to TOS/IP prece-
dence
X Expedited Forwarding (EF): Premium service. Reduced delay, jitter +
packet loss (RFC 2598)
