Hirschmann Power MICE Reference Manual

Diagnostics
186
9.2 Ports
RM Web L3P
Release 4.1 03/08

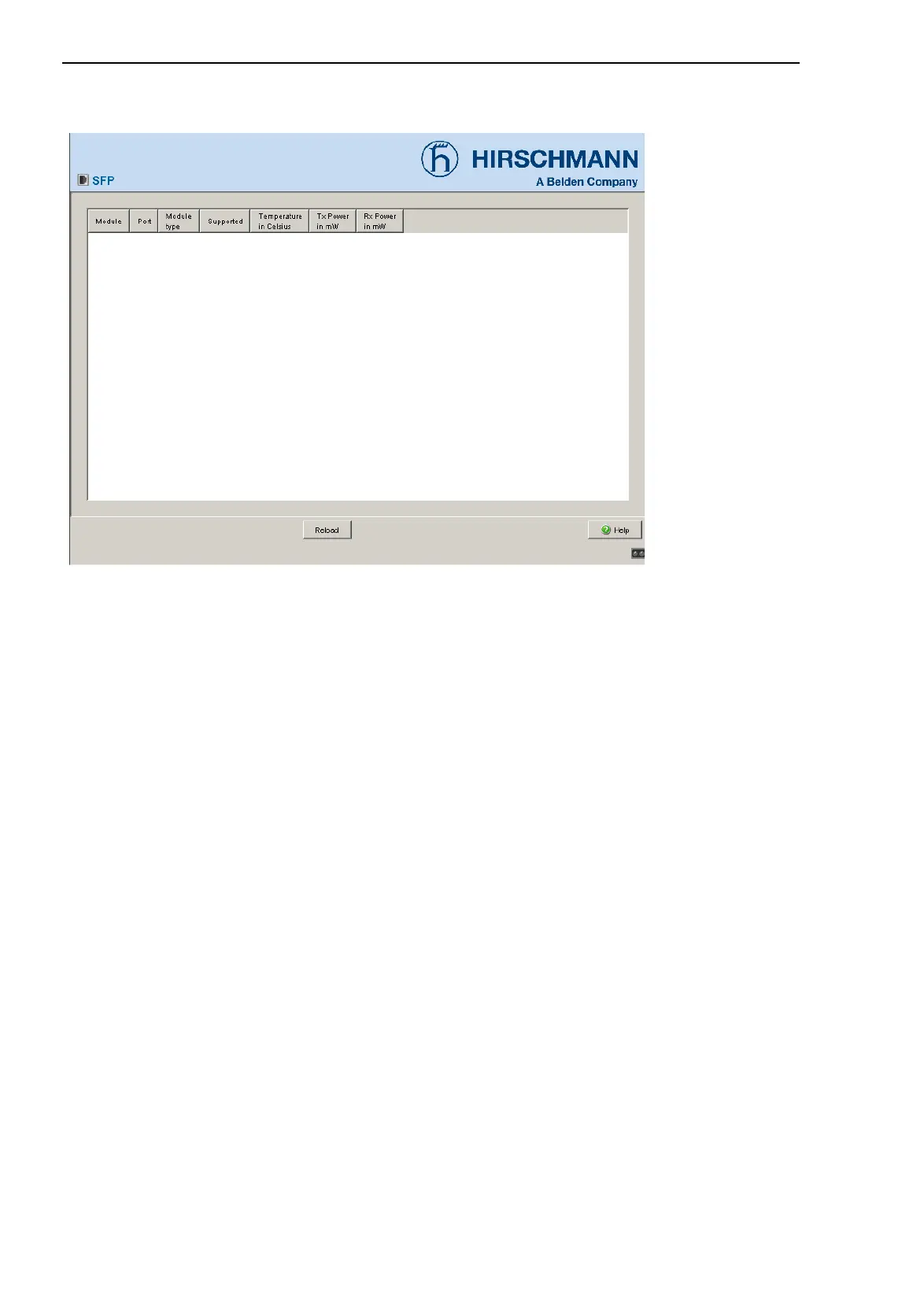

Figure 75: SFP Modules dialog
9.2.4 TP cable diagnosis
The TP cable diagnosis allows you to check the connected cables for short
circuits or interruptions.
Note: While the check is being carried out, the data traffic at this port is
suspended.
 Select the TP port at which you want to carry out the check.
 Click on "Set" to start the check.
