Diagnostics
RM Web L3P
Release
4.1
03/08
9.2
Ports
187

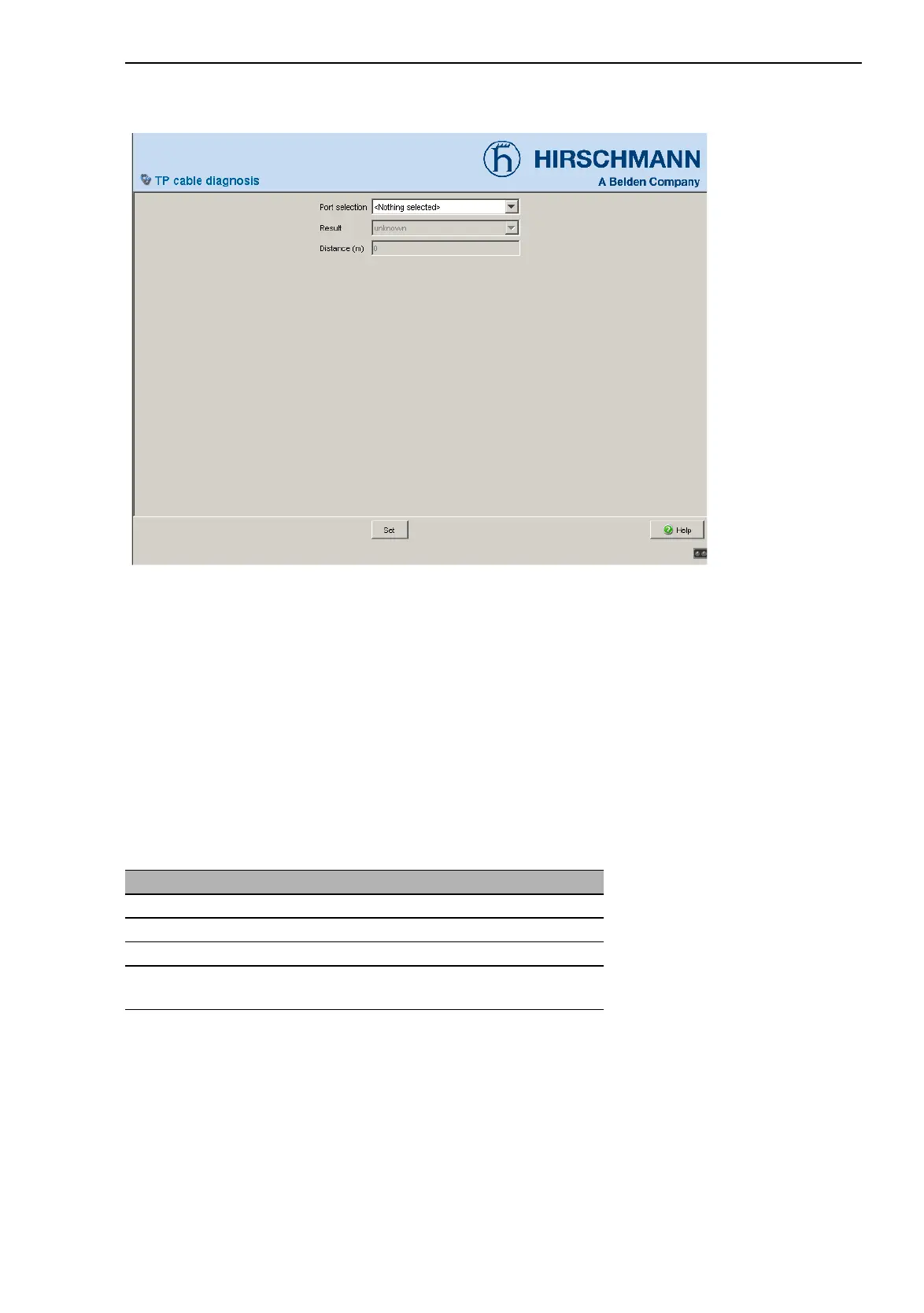

Figure 76: TP cable diagnosis dialog
The check takes a few seconds. After the check, the "Result" row contains
the result of the cable diagnosis. If the result of the check shows a cable er-
ror, then the "Distance" row contains the distance of the port from the cable
error.
Result Meaning
normal The cable is okay.
open The cable is interrupted.
short circuit There is a short circuit in the cable.
unknown No cable check was carried out yet, or none is
being carried out at present.
Table 41: Meaning of the possible results
