Hirschmann Power MICE Reference Manual

Redundancy
166
8.4 Rapid Spanning Tree
RM Web L3P
Release 4.1 03/08
8.4.1 Configuring the Rapid Spanning Tree
 Set up the network to meet your requirements.
Note: Before you connect the redundant lines, you must complete the
configuration of the RSTP.
You thus avoid loops during the configuration phase.
 Select the Redundancy:Rapid Spanning Tree:Global dialog.
 Switch on RSTP on every device

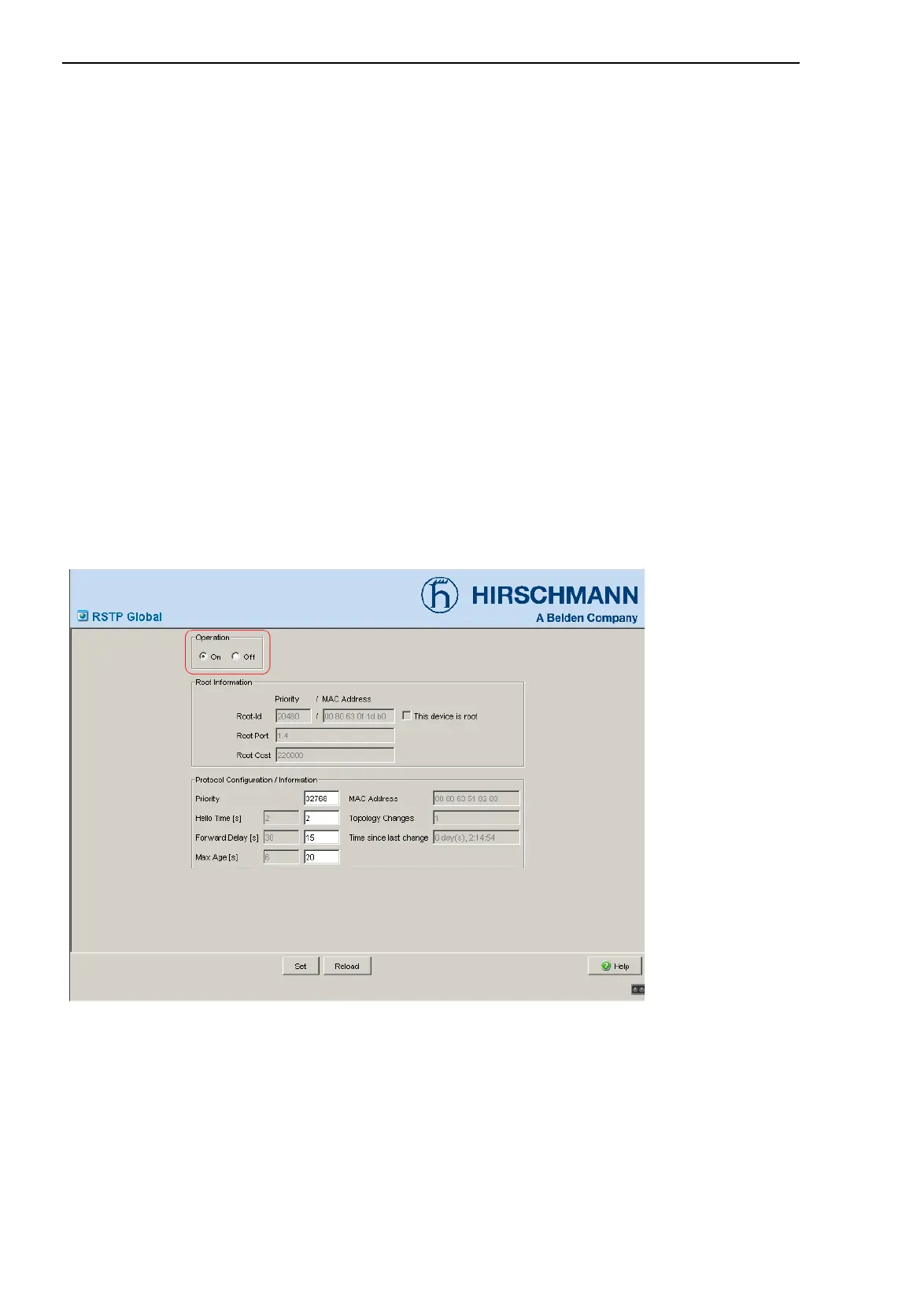

Figure 64: Operation on/off
 You now connect the redundant lines.
