Hirschmann Power MICE Reference Manual

Security
52
3.5 802.1x port authentication
RM Web L3P
Release 4.1 03/08
3.5.1 Preparing the device for the
802.1X port authentication
 Configure your own IP parameters (for the device).
 Globally enable the 802.1X port authentication function.
 Set the 802.1X port control to "auto". The default setting is "force-autho-
rized".
 Enter the "shared secret" between the authenticator and the Radius serv-
er. The shared secret is a text string specified by the RADIUS server ad-
ministrator.
 Enter the IP address and the port of the RADIUS server. The default UDP
port of the RADIUS server is port 1812.
3.5.2 Configuration table

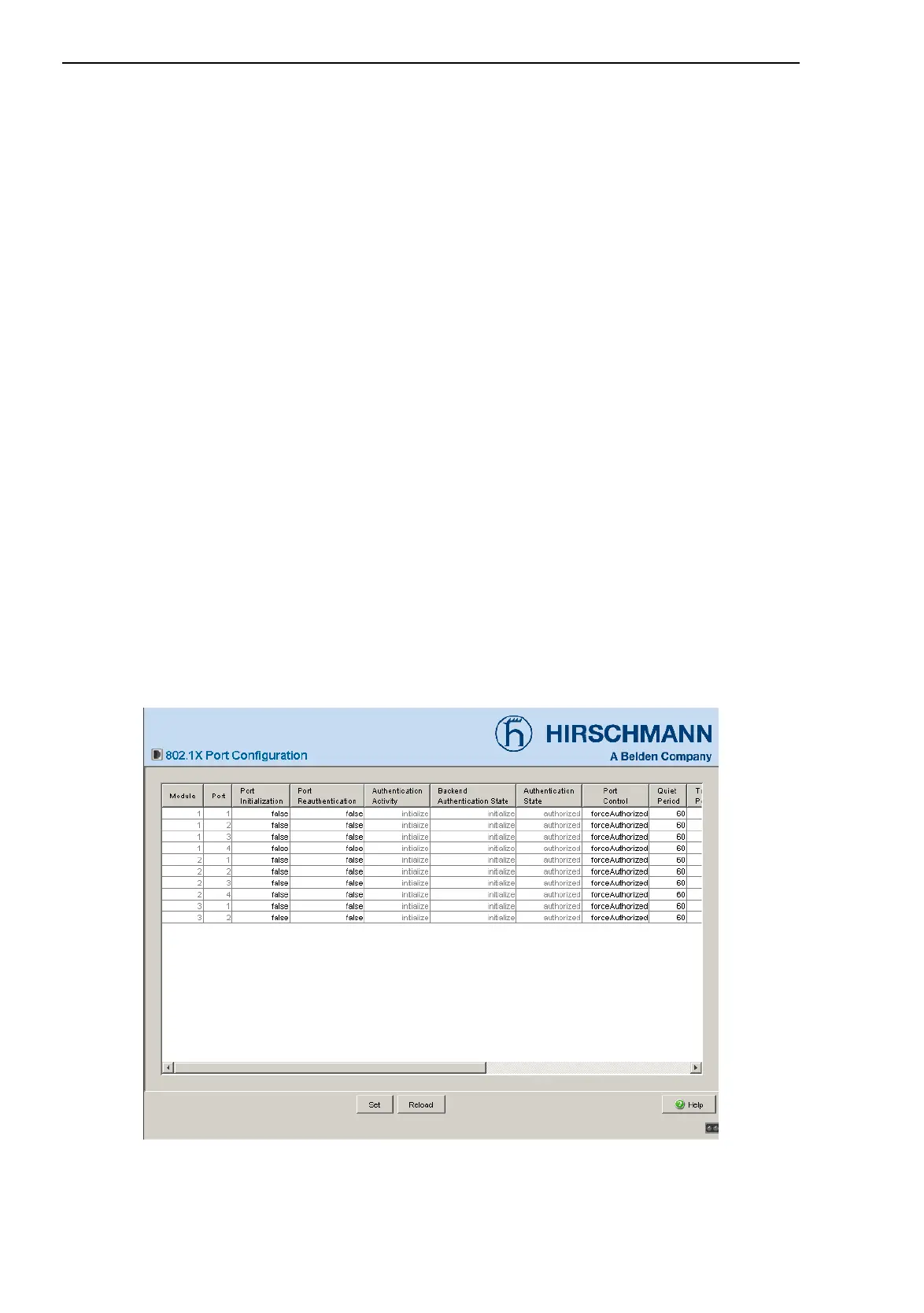

Figure 20: Configuration table
