Switching
74
5.3
Rate Limiter
RM Web L3P
Release
4.1
03/08
5.3.1 Rate Limiter settings
X "Ingress Limiter (kbit/s)" allows you to enable or disable
the ingress limiter function for all ports and
to select the ingress limitation on all ports (either broadcast packets only
or broadcast packets and Multicast packets).
X "Egress Limiter (Pkt/s)" allows you to enable or disable the egress limiter
function for broadcasts on all ports.
Setting options per port:
X Ingress Limiter Rate for the packet types selected in the Ingress Limiter
frame:
X = 0, no ingress limit at this port.
X > 0, maximum outgoing traffic rate in kbit/s that is allowed to be sent
at this port.
X Egress Limiter for broadcast packets:
X = 0, no rate limit for outbound broadcast packets at this port.
X > 0, maximum number of outgoing broadcasts per second sent at this
port.

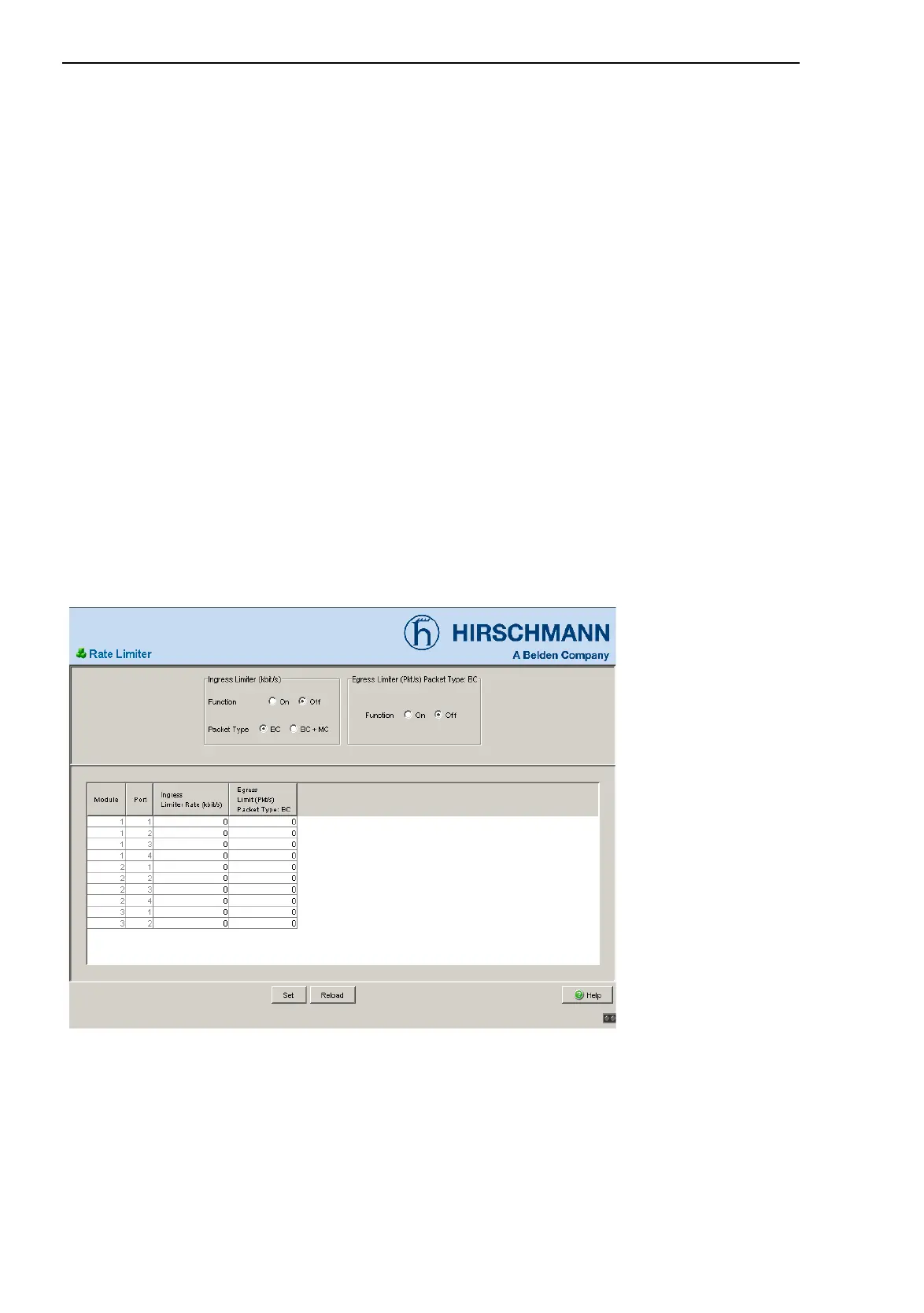

Figure 29: Rate Limiter dialog
