5.5.2 Displaying the VLAN configuration
The Current table shows all the configured VLANs and the VLANs config-
ured with GVRP.
Status:
Other: This entry only appears for VLAN 1. VLAN 1 is specified by the sys-
tem and always exists.
Permanent: This entry is permanent and is kept after the next reset of the
device.
Ports x.x: Membership of the respective port.
- Not a member of the VLAN.
M Member of the VLAN; send data packets with tag.
FNot a member of the VLAN.
U Member of the VLAN; send data packets without tag.

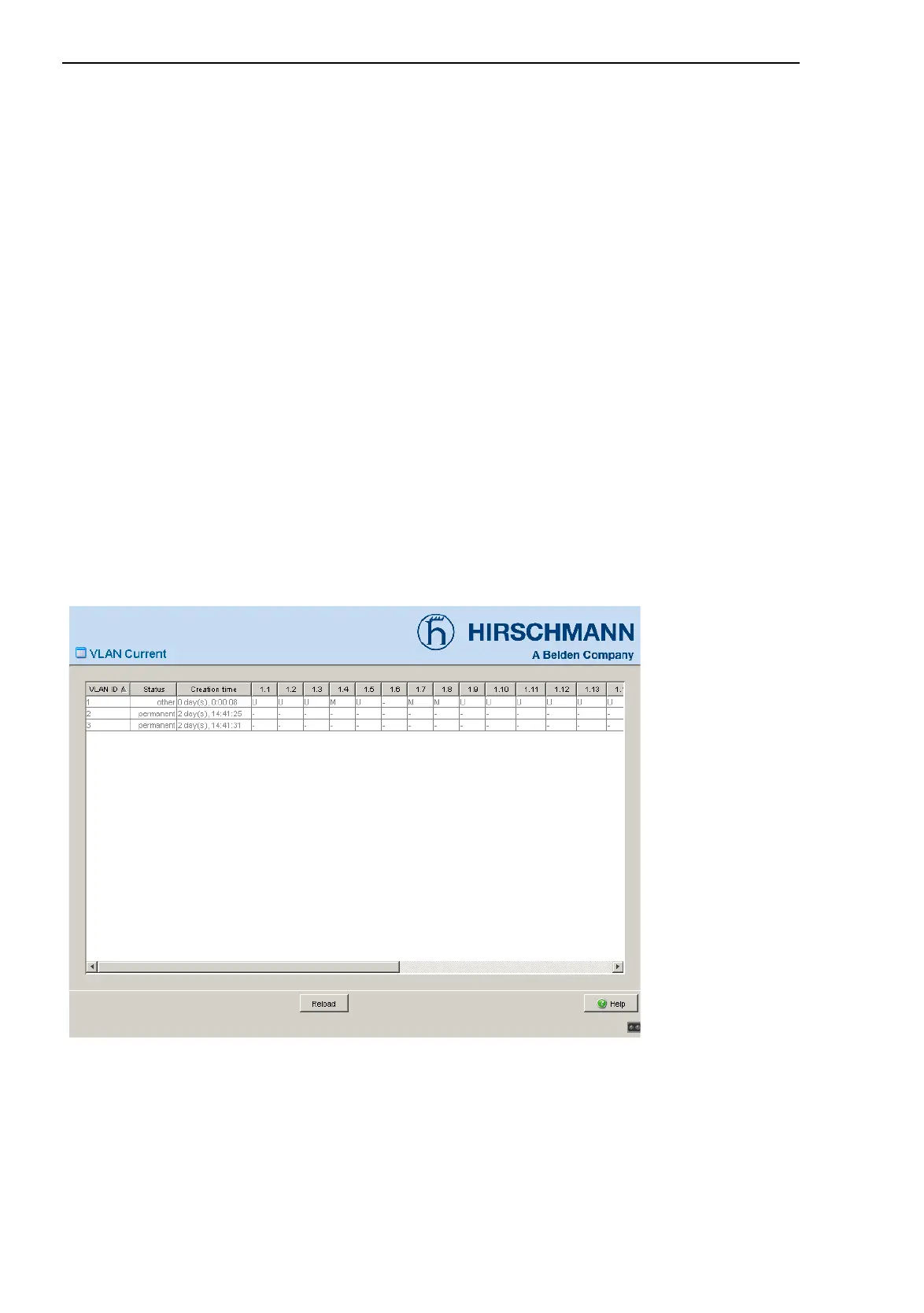

Figure 34: VLAN Current table
