Time
66
4.3
PTP configuration
RM Web L3P
Release
4.1
03/08

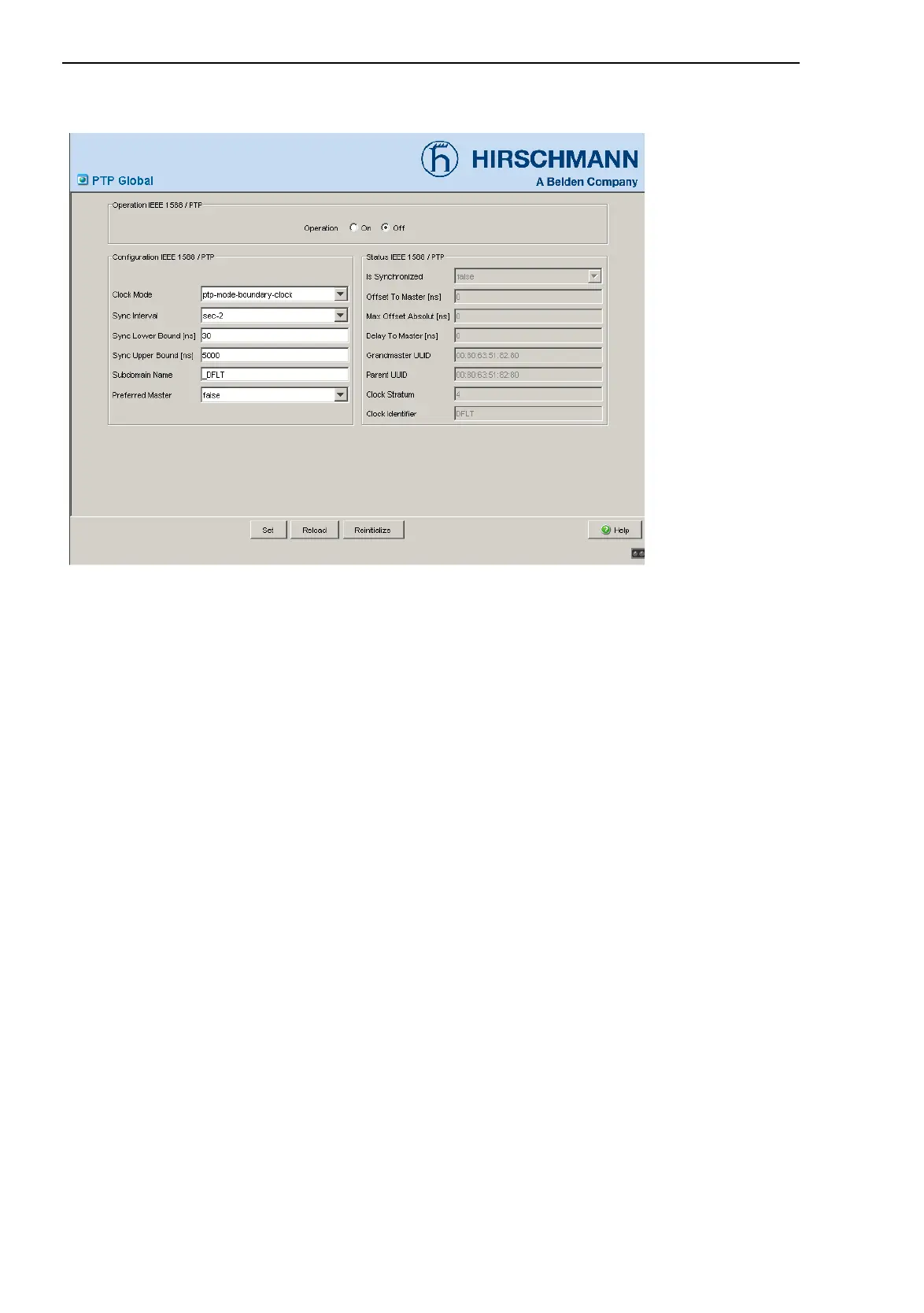

Figure 25: PTP-Global (with MS 20/30 and PowerMICE)
4.3.2 PTP port
This dialog
– Allows you to make port-related PTP settings and
– Displays port-related PTP statuses.
X PTP enable
enable: Port sends/receives PTP synchronization messages,
disable: Port blocks PTP synchronization messages.
X PTP Port Burst enable
enable: 2 to 8 synchronization runs take place during the synchroniza-
tion interval. This enables faster synchronization with a correspondingly
higher network load.
disable: One synchronization run is performed in a synchronization
interval.
