Time
RM Web L3P
Release
4.1
03/08
4.3
PTP configuration
67
X PTP Status
initializing: Port is in the initialization phase.
faulty: Port fault. Error in the PTP protocol.
disabled: PTP function is switched off at this port.
listening: Port has not received any information and is waiting for
synchronization messages.
pre-master: Port is in PTP pre-master mode.
master: Port is in PTP master mode.
passiv: Port is in PTP passive mode.
uncalibrated: Port is in PTP passive mode.
slave: Port is in PTP slave mode.

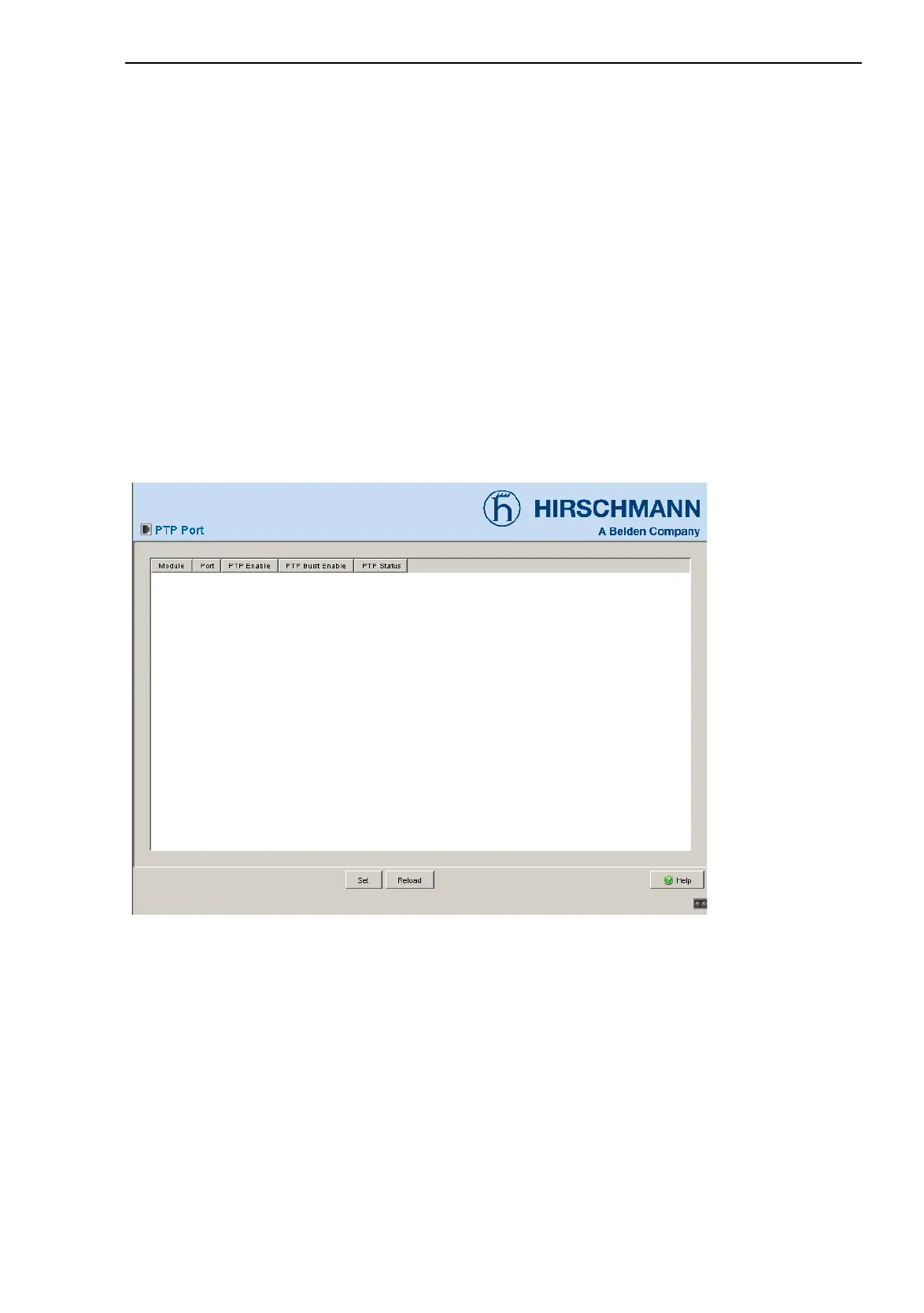

Figure 26: PTP port
