Redundancy
136
8.2
HIPER-Ring
RM Web L3P
Release
4.1
03/08
The displays in the “Information” frame mean:
– „“Redundancy guaranteed”: One of the lines affected by the function can
fail, whereby the redundant line will then take over the function of the
failed line.
– „“Configuration failure”: The function is incorrectly configured or there is
an error on ringport link.

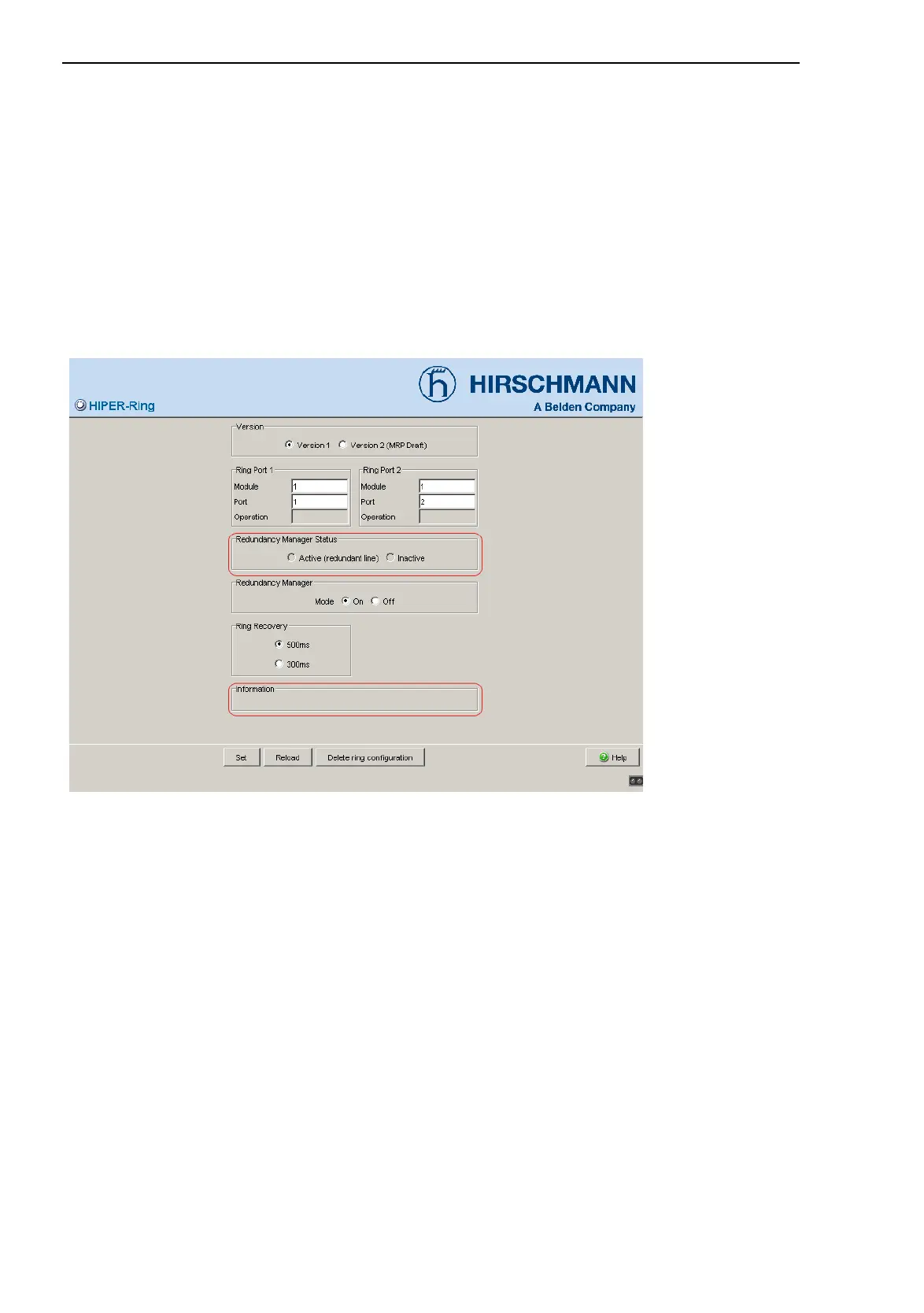

Figure 43: Display: Redundancy Manager Status and Information
Note: If VLANS are configured, note the VLAN configuration of the ring ports.
In the configuration of HIPER-Ring Version 1, you select for the ring ports
– VLAN ID 1 and
– VLAN membership U in the static VLAN table
Note: If you want to use link aggregation connections in HIPER-Ring Version
1 (PowerMICE and MACH 4000), you enter the index of the desired link
aggregation entry for the module and the port.
