10-34 Vehicle Care
F32 EMISSION 2 (15A)
F33 EMISSION 1 (15A)
F34 SPARE
F35 ECM 1-V6/ODD
INJECTORS &
COILS-V8
(20A)
F36 SPARE
F37 HVAC IGN (10A)
F38 IGNITION
IP/BODY
(10A)
F39 IGNITION
ENGINE/FSCM
(10A)
F40 AIRBAGS (10A)
F41 SPARE
F42 RIGHT PAR KING
LIGHT
(10A)
F43 LEFT PARKING
LIGHT
(10A)
Relays:
R1 SPARE
R2 COMM ENABLE RELAY
R3 A/C CLUTCH
COMPRESSOR RELAY
R4 REVERSE LIGHTS RELAY
R5 FOG LIGHT RELAY
FRONT
R6 HEADLIGHT LO BEAM
RELAY
R7 HEADLIGHT WASH RELAY
R8 RR DEFOG RELAY
R9 FRONT WIPER HIGH
RELAY
R10 FRONT WIPER LOW
RELAY
R11 HEADLIGHT HI BEAM
RELAY
R12 CRANK RELAY
R13 POWER TRAIN RELAY
R14 IGNITION RELAY
R15 FRONT WINDSCREEN
WASH RELAY
R16 HORN RELAY
R17 ENGINE COOLING FAN 1
RELAY
R18 PARKING LIGHTS RELAY
R19 ENGINE COOLING FAN 2
RELAY
R20 ENGINE COOLING FAN 3
RELAY
R21 VACUUM PUMP RELAY
RELAY

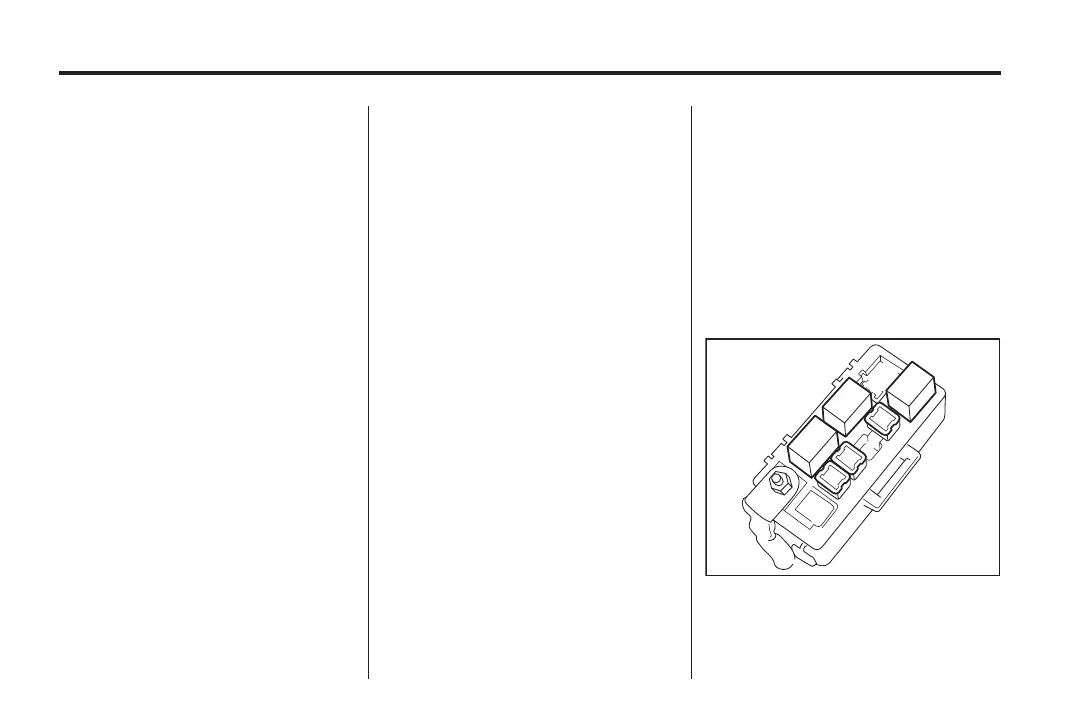

PTC4
RELAY
PTC2
PTC1
PTC2
PTC4
RELAY
PTC1
PTC3
RELAY
PTC3
LPG fuses:
PTC1 VAPORISER
HEATER 1
(40A)
