ALPHABETIC REFERENCE EXCEL CARE CONTROL ICONS
74-5577–33 (US) 108
EN2B-0184 GE51 R0518 (Europe)
User Address
Type
Input/
Output
Comment
ID___Rotating_P VD Input 0: Load switching is on sequential operating mode in the
group (XFM 36-1 only).
1: Load switching is on rotating operating mode in the group
(not with XFM 36-1S).
IA___Off_Index_P VA Input/
Output
1) The greatest switch-off time of all previous loads (and this
load, if Output) in the group, if load switching is rotational.
2) No function, if load switching is sequential.
IA___On_Index_P VA Input/
Output
1) The greatest switch-on time of all previous loads (and this
load, if Output) in the group, if load switching is rotational.
2) The highest load number switched on in the group, if load
switching is sequential.
ID___Off_Prio VD Input/
Output
0: All previous loads (and this load, if Output) in the group are
OFF
1: There is at least one load in the group that is ON
ID___On_Prio VD Input/
Output
0: All previous loads (and current, if output) in the group are
ON
1: There is at least one load in the group that is OFF
ID___Peak_load VD Input 1: Signal to stop switching on the load
0: Signal is not active
ID___Shutdown VD Input 1: Signal to shed the load immediately
0: Signal is not active
Type abbreviations:
VA: Virtual (pseudo) analog
VD: Virtual (pseudo) digital

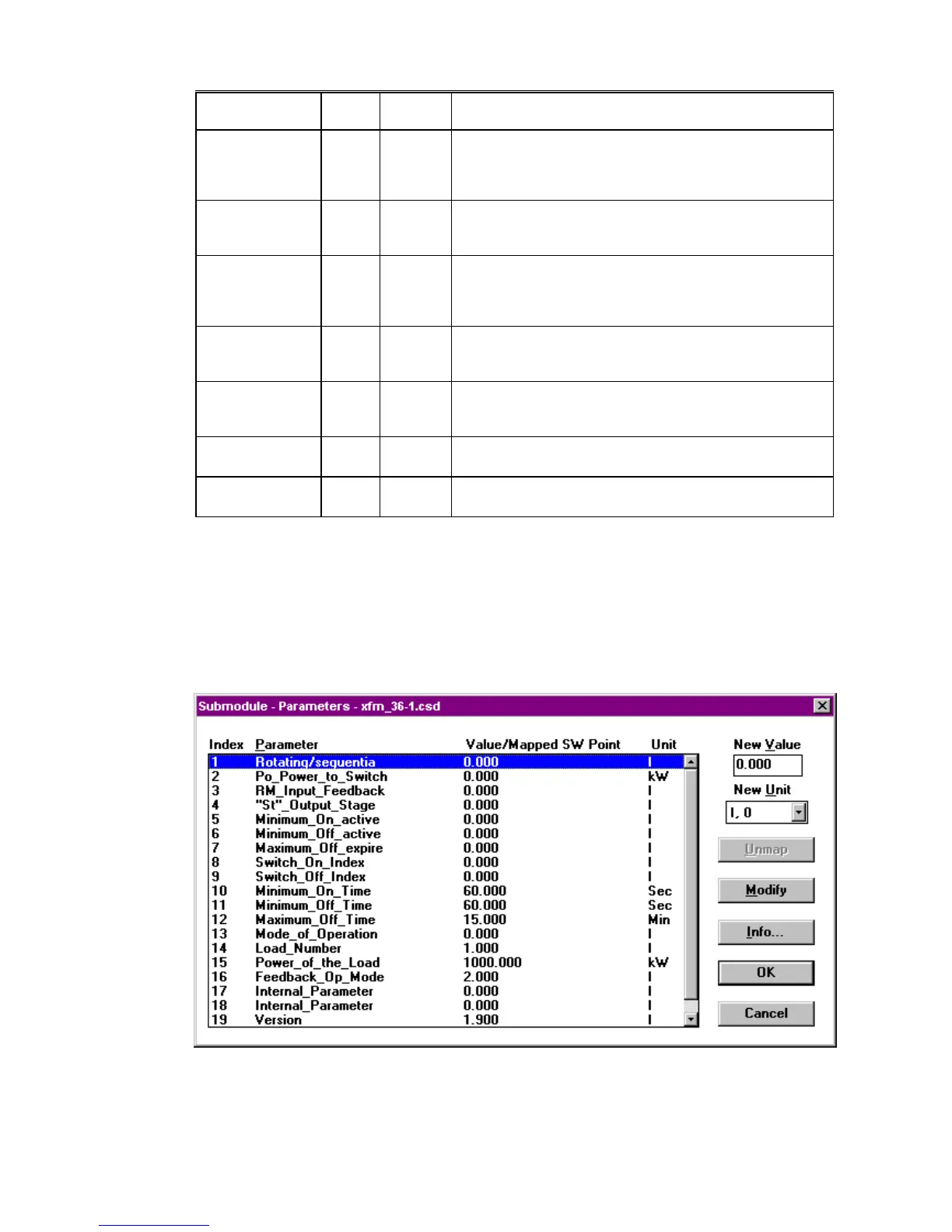

XFM 36 Internal Parameters The XFM 36-1, 36-1S, and 36-1R internal parameters dialog box lists parameters
that control program functions. Later sections describe how to use these parameters
depending on operation desired. The table following the dialog box summarizes
parameter types, functions, default values and engineering units. (The dialog box
values and entering units are not necessarily the defaults.)
