The currently assigned name is displayed on the top line - an underscore shows where the next
character will be positioned, and a selection of the alphabet is shown on the bottom line - the cursor
flashes on the letter L.
Press the * key to erase the characters already assigned to the name.
The A> or <B keys can be used to move the alphabet left or right until the required character is
positioned underneath the flashing cursor. When the required character is in position press the ent key
to copy the character to the descriptor in the top line. Repeat this procedure to assemble the required
Group Name.
Text Case & Library
On entering the Group Name option the alpha-numeric characters are all presented in upper case.
Pressing the # key toggles the characters to lower case.
Pressing the # key when the lower case alphanumeric characters are displayed toggles to the library
words. The words can be viewed using the A> or <B keys or directly selected using the reference number
- refer to Appendix A - Library. When the required word is displayed, press the ent key to copy it to
the name.
NOTE: Library words are a maximum of 12 characters and upper case only.
Group Name Display
When viewing the groups assigned to an option, for example user code or outputs, simultaneously
pressing the # and * keys displays the groups individually. The keypad displays the group number,
name and the status of the particular option being displayed. Press the # key to toggle the status of the
group. To move to another group press the A> or <B keys or enter the number of the group directly.
GX-085-V0

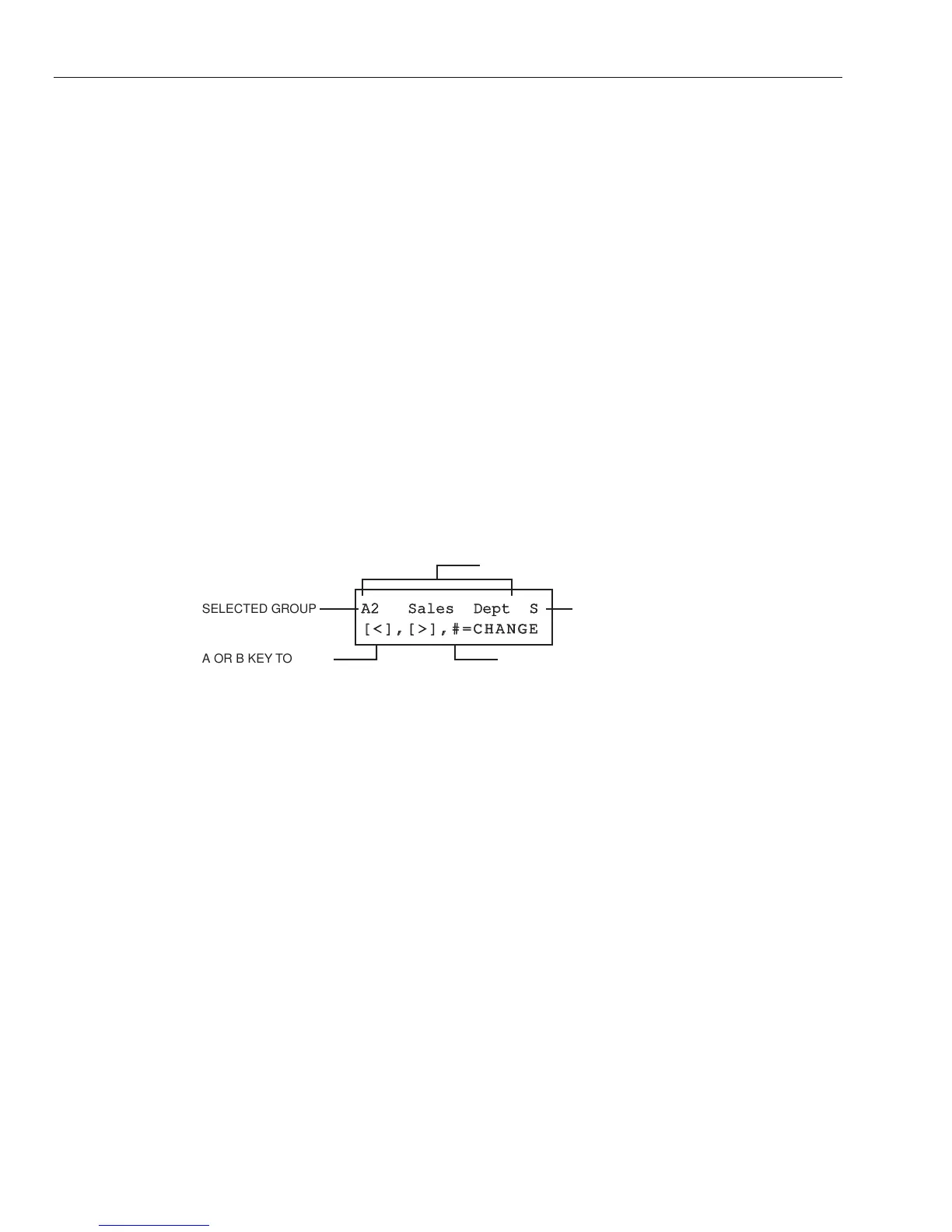

A2 Sales Dept S
[<],[>],#=CHANGE
SELECTED GROUP
A OR B KEY TO MOVE
TO OTHER GROUP
STATUS OF GROUP
# KEY TO TOGGLE STATUS
CURRENT GROUP NAME
Notes on Groups
1. All zones default to group 1.
2. All keypads, user codes and outputs default to all system groups assigned.
3. Remove unused groups from user codes, otherwise the unused groups will set (arm) and unset
(disarm) even though they are not programmed.
4. Final, Keyswitch and Exit can be programmed to function in regard to other groups during the
setting (arming) and unsetting (disarming) procedures (refer to option 52 = PROGRAM ZONES).
5. Outputs can be assigned to any selection of groups. Output activation can be made dependent on the
set (armed) or unset (disarmed) status of the assigned groups (refer to option 53 = PROGRAM
OUTPUTS).
6. After programming zones, codes, keypads and outputs into their various groups they remain
programmed if the Group Mode function is disabled. Only Group 1 remains active.
7. The GX-Series control panels have multi-user software that allow several users to operate the
system simultaneously.
