GX-Series Control Panel Installation and Setup Guide
6-7
Pressing ent overrides the condition for one set (armed) period only. Pressing esc returns to the previous
banner. When setting (arming) the system with an overridden fault or tamper condition, the display
indicates the overridden function in place of the set (armed) mode by showing the override message as
detailed in the override menu function. The Override condition is logged, and will last for one set (armed)
period only. When all the groups that are affected by the override condition become unset (disarmed), the
override status is cleared. An override restore is logged at unset.
If, during a setting (arming) attempt, there are conditions that haven’t restored and cannot be overridden,
then the system will not set. The display shows the CALL MANAGER RESET REQUIRED banner with a
short beep every 30 seconds.
Setting (Arming) Features
The GX-Series control panels provide a range of features to assist the user in setting (arming) and unsetting
(disarming) the system, to minimize the possibility of error when carrying out these procedures.
Show Set Status
When Show Status is enabled (refer to option 58.6 = KEYPAD.Show Status), pressing the * and # keys
simultaneously when the normal banner is displayed indicates the group set (armed) status.
F = Fault
R = Ready
S = Set (Armed)
P = Part Set (Part Armed)
L = Locked Out
- = Group is not available to the user
SET A12345678
Groups RRSRLPFP
Group Block
NOTE: The Show Status indicates the set (armed) conditions of groups when the system is set (armed) [keypad
blank] or unset (disarmed) [normal banner]. Show Status does not operate while Engineer mode is
accessed.
Pressing the * and # keys again toggles the display to show the status of the groups individually. To move
between each group, press the * and A> or the * and <B keys simultaneously.
GX-068-V0

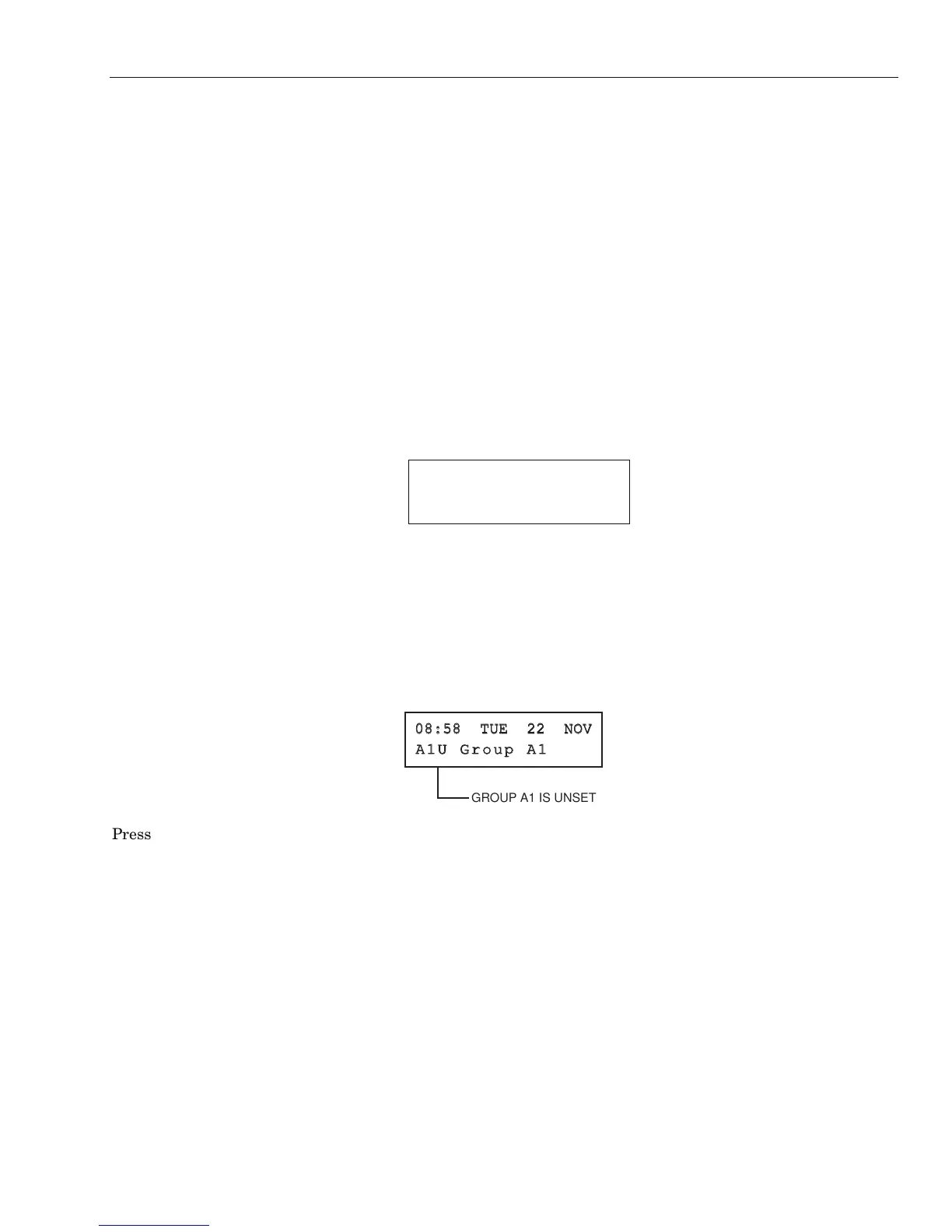

GROUP A1 IS UNSET
Pressing the * and # keys again returns the keypad to the banner display.
Multi-group Systems
The GX-520 panel has 32 groups, which are displayed on the keypad in blocks of eight groups, subdivided
into A, B, C and D. Press the A> or <B key to display each of the group blocks.
Exit Time
Once the setting (arming) routine starts, outputs programmed as Entry/Exit Horn emit a continuous tone.
The keypad used to set (arm) the system indicates the time, in seconds, remaining before the system sets.
Exit Time Reset
If any zones are open when setting (arming) starts or are opened during the setting routine, the sounder
begins to pulse rapidly; zones types other than Final, Exit, Entry or Push-Set (and Secure Final or Part
Final when acting as a Final), indicate on the setting (arming) keypad the number of zones open. The A> or
<B keys can be used to view the open zone types and addresses. Closing the zones resets and restarts the
exit time.
