The GX-Series TouchCenter
General
The GX-Series TouchCenter connects to the RS485 data bus of the GX-Series panels. The TouchCenter
combines a clear graphical display with simple touch-screen control, providing an easy user interface.
GX-039-V0
MK7 KEYPAD
INTERFACE
BUTTON
EMERGENCY
BUTTON

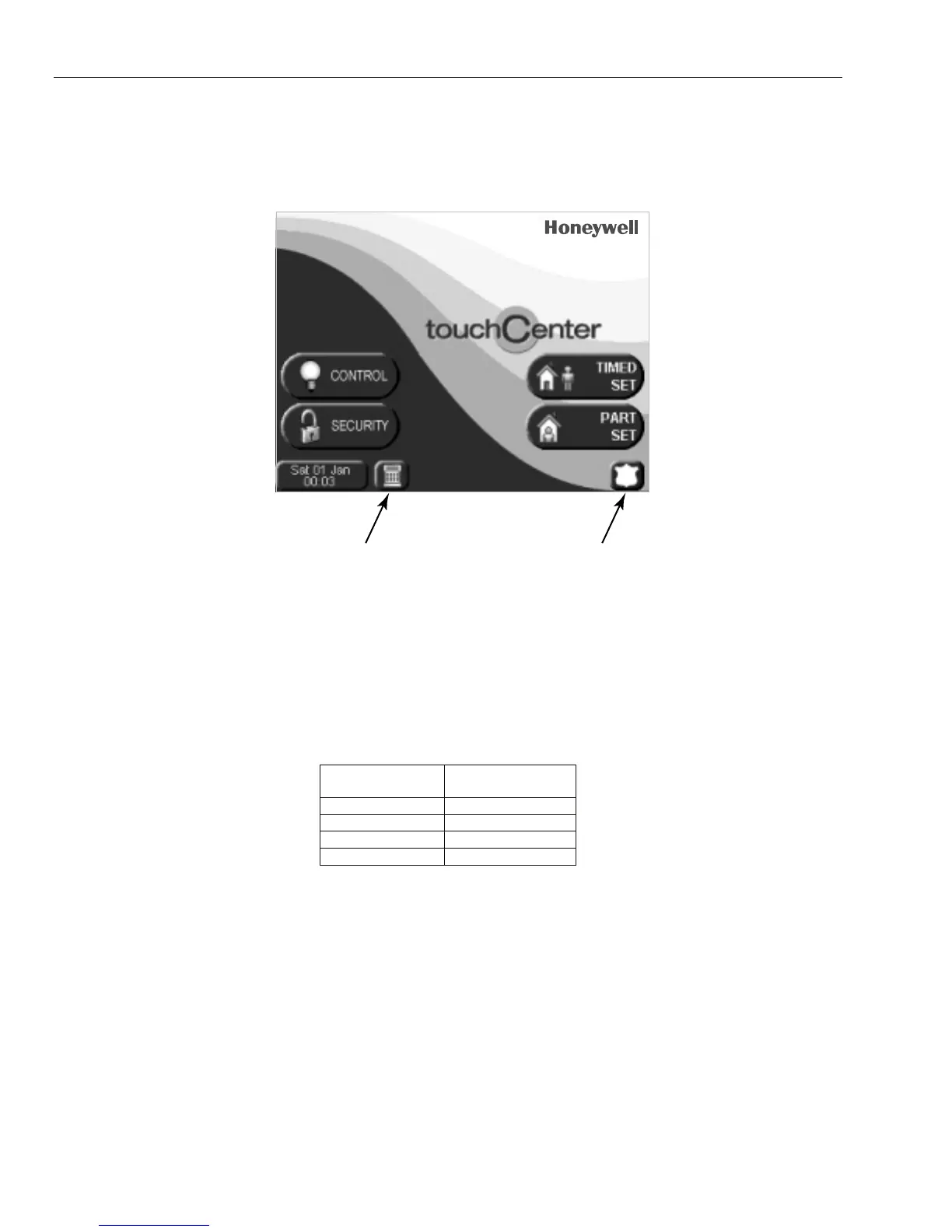

Figure 4.3 Homepage Screen
TouchCenter Installation Procedure
1. Remove the mounting plate from the TouchCenter by pushing it towards the bottom of the keypad.
2. Locate the mounting plate over the mounting surface such that the opening of the mounting plate is
aligned with the cable.
3. Pass the cable through the opening of the mounting plate.
4. Secure the mounting plate to the mounting surface using the four screws supplied.
5. Connect the wires to the TouchCenter terminals as per the following table:
GX-Series
Terminals
TouchCenter
Terminals
A G
B Y
GND -
+12V +
Table 4-5. TouchCenter Terminal Connections
6. Mount the TouchCenter to the mounting plate by locating the four elongated holes over the locations on
the mounting.
Configuring a TouchCenter
To configure a new TouchCenter do the following:
1 - Set an Address
On first power up, the TouchCenter will immediately prompt for a bus address. This should be any valid
address that is not shared with any other keypad on the same RS485 (AB) Line. The default address is
usually acceptable.
Or
