GX-Series Control Panel Installation and Setup Guide
4-5
Multiple Group Systems
The larger GX-Series systems have more than eight groups; these are displayed on the keypad in blocks of
eight groups. Press the A> or <B key to display each of the group blocks.
Note: Only up to eight groups should be set at the same time.
Power LED
The green power LED indicates the status of the AC power supply and the stand-by battery.
Power LED AC Status Battery Status
ON AC OK Battery OK
Slow Flash AC Fail Battery OK
Quick Flash AC Fail/OK Battery Low
Table 4-4. AC/Battery Status Indicator
NOTE: It is advised that a suitably rated stand-by battery is installed on the system in order to provide continued
protection in the event of a mains failure. The battery is not included.

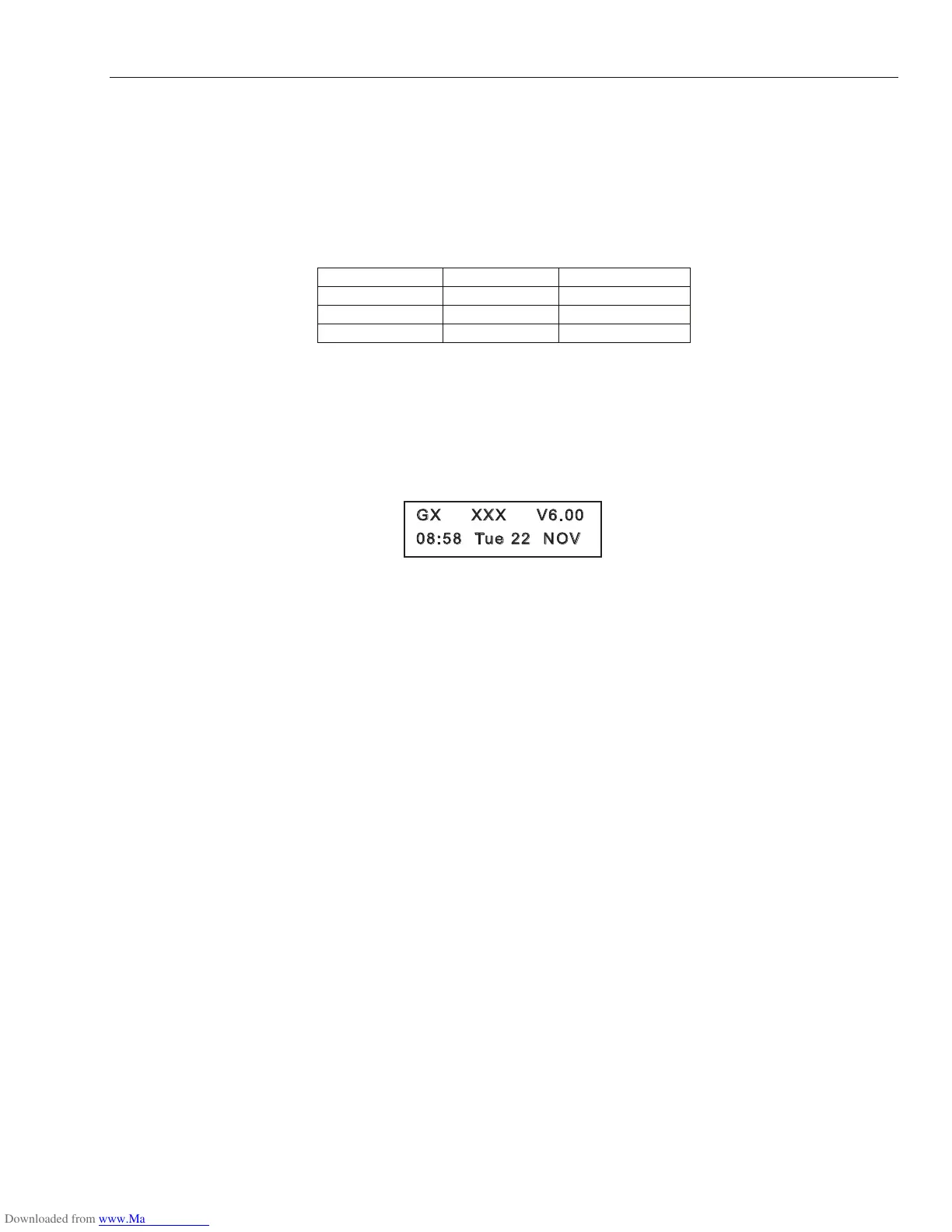

Display
The GX-Series Keypads have a 2 x 16 character backlit display used to display programming information
and system status.
GX-096-V1
GX XXX V6.00
08:58 Tue 22 NOV
