Honeywell GX-Series User Manual

GX-Series Control Panel Installation and Setup Guide
2-13
When this wiring mode is employed, only one detector which can report fault conditions should be connected
to the zone. A maximum of two detectors or contacts of any type should be connected to a zone when this
mode is selected. It is recommended that zone cable lengths are kept below 328 feet (100 m) in this
configuration.
NOTE: The recommended maximum cable run from a zone to a detector is 1640 feet (500 m) in all other
configurations.
Option 02 - 1k Option 04 – 2.2k Option 06 – 4.7k Option 08 – 5.6k Option 10 -1k Fault
Tamper S/C 0 - 800 0 – 1800 0 – 3700 0 – 1400 0 - 800
Low Res 800 – 900 1800 – 2000 3700 – 4200 1400 – 2800 800 - 900
Normal 900 – 1200 2000 – 2500 4200 – 5500 2800 – 8400 900 - 1200
High Res 1200 – 1300 2500 – 2700 5500 – 6500 8400 – 9800 1200 - 1300
Fault - - - - 1300 - 4500
Masked 1300 – 12000 2700 – 12000 6500 – 19000 9800 – 19000 4500 - 19000
Open 12000 – infinity 12000 – infinity 19000 – infinity 19000 – infinity 19000 – infinity

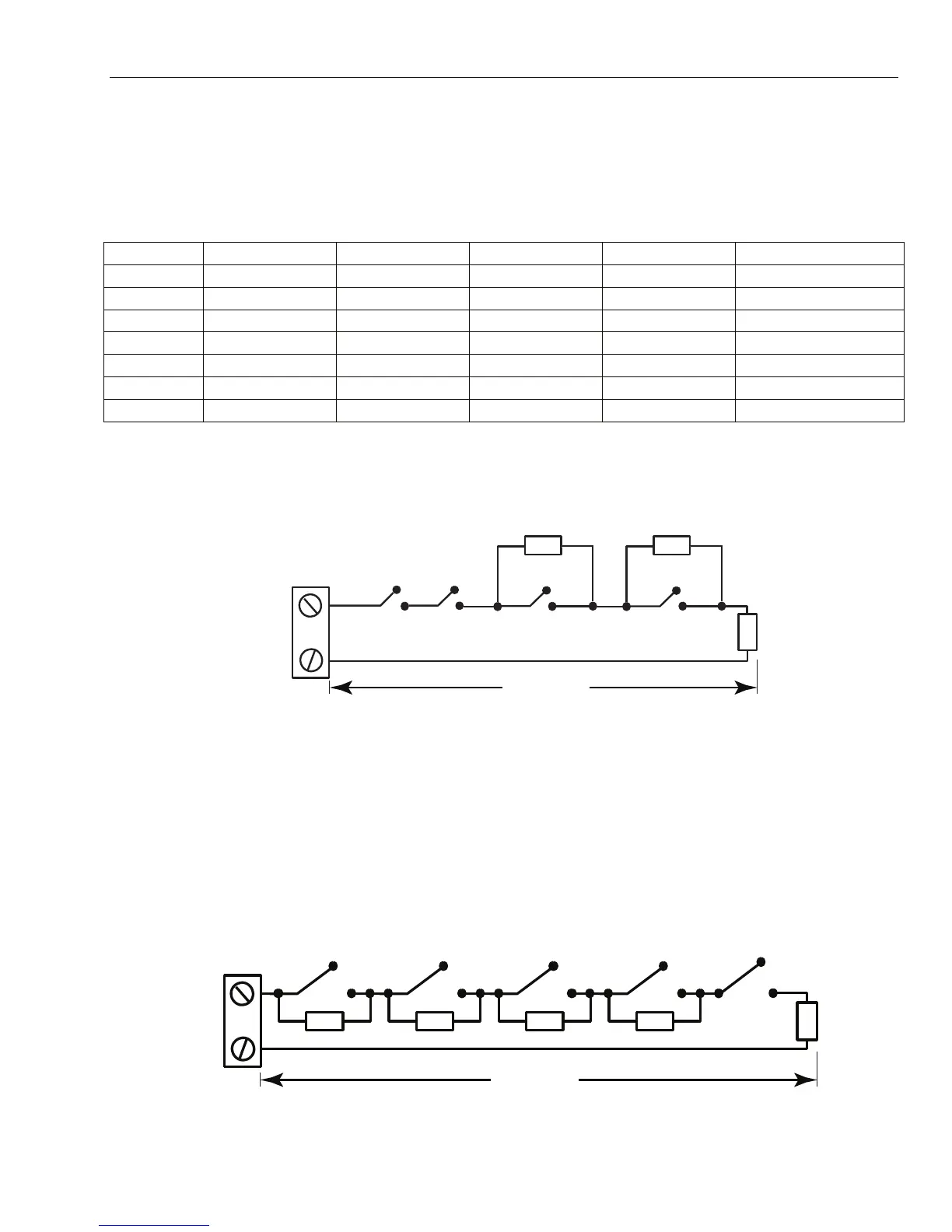

Table 2-7. End of Line Zone Resistance and Conditions
Option 10 - 1k Fault End-Of-Line
The wiring in Figure 2-14 should be used if the mode is end-of-line. Fault and mask indications can only be
signaled if the detector has separate fault and mask indications.
Zone
Tamper N/C
1k
Alarm N/C
Fault N/C
3k 12k
Anti-mask N/C
GX-014-V2
328 ft (100 m)
Figure 2-14. Option 10 - End of Line Zone/Detector wiring
When this wiring mode is employed, only one detector which can report fault conditions should be connected
to the zone. A maximum of two detectors or contacts of any type should be connected to a zone when this
mode is selected. It is recommended that zone cable lengths are kept below 100m in this configuration.
NOTE: The recommended maximum cable run from a zone to a detector is 1640 feet (500 m) in all other
configurations.
Wiring Multiple Detectors
Multiple detectors can be wired into a single zone when using preset 1 as shown in Figure 2-15. The
maximum number of detectors that can be connected to a single zone is ten.
Zone
Alarm
Alarm Alarm Alarm
N/C
N/C
N/C N/C
N/C TAMP
1k
1k
1k
1k
1k
1%
1%
1% 1%
1%
N/C
(10 max)
GX-015-V1
1640 ft (500 m)
Figure 2-15. Zone to Multiple Detector Wiring
