GX-Series Control Panel Installation and Setup Guide
2-11
Zones
The default setting for the zones on the GX-Series are as follows:
Zone 1001 = Final
Zone 1002 = Exit
All remaining zones = Intruder
Zone Addresses
Each zone has a four digit address; 1004, 4136. The address is made up of three reference numbers as shown
in the following figure:
Example: 3057
Represents Panel
Line No.
Represents
RIO Address
Represents
Zone No. 1-8 on
RIO
GX-Series
PANEL
1 2 3 4
RIO
ADDRESS 05
ZONE 7
3
05
7
GX-011-V2

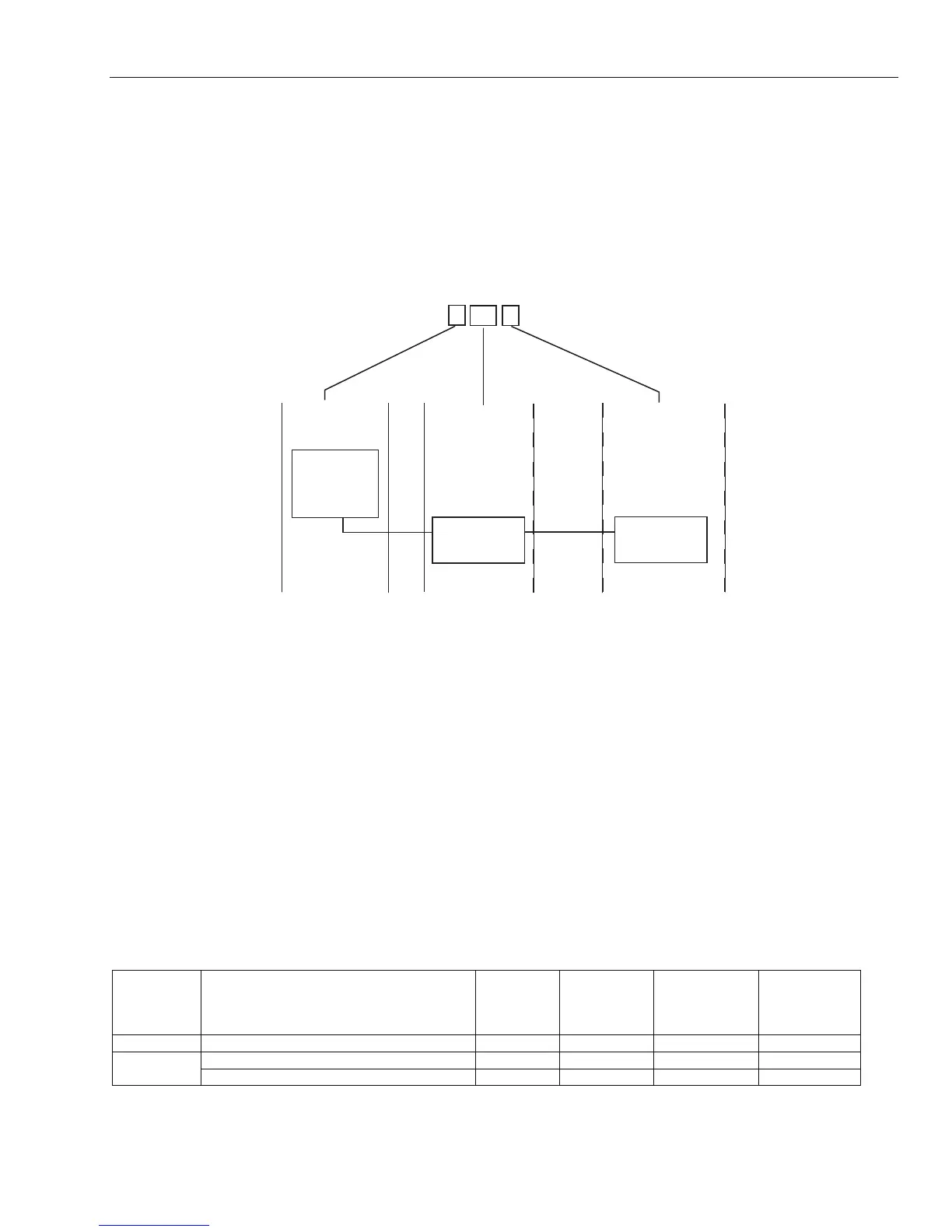

Figure 2-11. Zone Addresses
For example, zone 3057 is the detector connected to line 3, RIO 05, zone 7.
Zone Addressing with On-board RIO Switch (Line 0 Switch)
The RIO switch (SW3, dipswitch 8) controls the ordering of the on-board RIO’s. This dipswitch must be set
before powering up the panel. Setting the switch to ON sets the on-board RIO1 to operate on line 0 and
allows a RIO addressed as 1 to be connected to line 1, giving a total of 15 RIO’s on a GX-520. The RIO switch
only needs to be activated if the maximum number of RIO’s will be used.
NOTE: The RIO switch is not functional on other panel variants. It defaults to the Switch off configuration.
Switch off (default)
When the switch is set to this mode, the on-board RIO’s configure to the following addresses:
On-board RIO0 Zone address range: 1001-1008 Outputs: 1001-1004
On-board RIO1 Zone address range: 1011-1018 Outputs: 1011-1014
Switch on
When the switch is set to this mode, the on-board RIO’s configure to the following addresses:
On-board RIO0 Zone address range: 1001-1008 Outputs: 1011-1014
On-board RIO1 Zone address range: 0011-0018 Outputs: 0011-0014
Panel On-Board RIO Address Range
Total on-
board
Zones
Max No. of
External
RIO's
(Line 1)
Valid
External RIO
Addresses
(Line 1)
Total Zone
Addresses
(Switch ON)
GX-48 1001 - 1008, 1011 - 1018 (switch off) 16 4 2-5 48
1001 - 1008, 1011 - 1018 (switch off) 16 15 2 - 9, A - F 520
GX-520
1001 - 1008, 0011 - 0018 (switch on) 16 14 1 – 9, A - F 520
Table 2-5. Zone Address Ranges
