SETTING (ARMING) OPTIONS
Setting (Arming) the System Using a PIN
Full Setting (Full Arming)
Enter: USERCODE + A>
If groups are enabled and the user code has been assigned group choice then the keypad displays the set
(armed) status of the available groups:
R = Ready
F = Fault (group is unset (disarmed) and at least
1 zone is open)
P = Part Set (Part Arm)
S [flashing] = selected for setting (arming)
S [steady] = already set (armed)
L = Group is locked out and cannot be
unset (disarmed)
- = Group is not available to the user
GX-062-V0
SET
A12345678

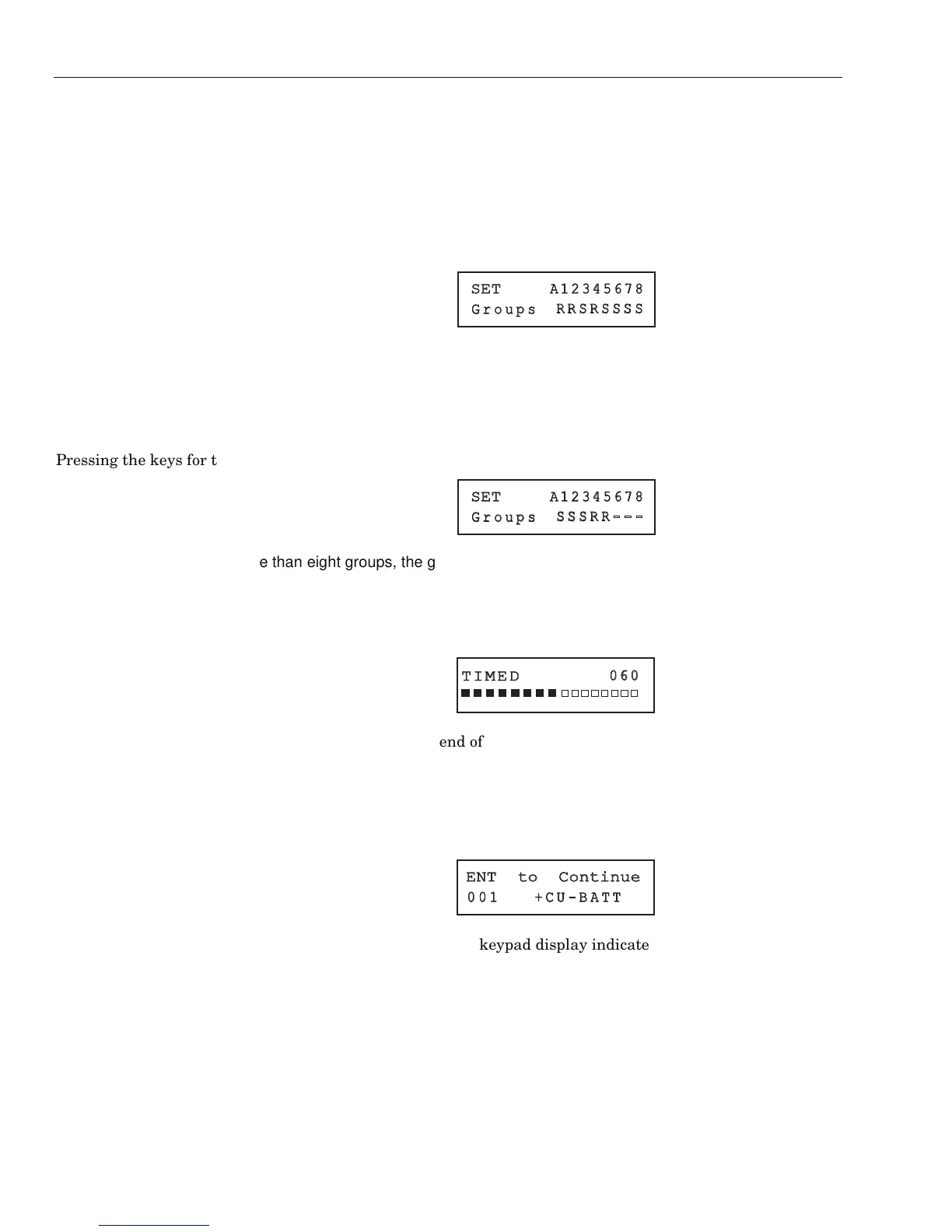

Groups
RRSRSSSS
Pressing the keys for the groups toggles the R (Ready) to an S (Set flashing).
GX-063-V0
SET
A12345678
Groups
SSSRR---
NOTE: On systems with more than eight groups, the groups are displayed in blocks of eight. Each block can be
viewed by pressing the A> or <B keys.
Once the required groups have been selected press the ent key to begin the setting (arming) procedure. If
groups are not enabled or the user does not have group choice, entering the user code followed by the A> key
immediately starts the setting (arming) procedure.
GX-064-V0
TIMED
060
The keypad displays the exit time countdown. At the end of the exit time, or when the setting (arming)
procedure is terminated by a FINAL or PUSH-SET zone closing, the ENTRY/EXIT HORN outputs and
keypad buzzers become silent for four seconds, then emit two long tones to confirm that the system is set
(armed). The message SYSTEM IS SET appears briefly before the keypad display changes back to the
normal day banner.
Part Setting (Part Arming)
Enter: CODE + <B
GX-066-V0
ENT to Continue
001 +CU-BATT
This is identical to the Full Setting procedure, except the keypad display indicates that the system is being
Part Set (Part Armed). Only the zones which have the Part attribute enabled (refer to option 52.5 =
PROGRAM ZONE.Part), are included.
Cancelling the Setting (Arming)
The full and part setting routines can be aborted by pressing the esc key (on the keypad used to begin
setting) before the system sets (arms).
