To remove the component:
1. Power down the server (on page 19).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the server from the rack (on page 28).
4. Remove the access panel (on page 29).
5. If expansion boards with internal cabling are installed on the PCI riser cage, disconnect all internal
cables from the expansion boards to completely remove the cage from the server.

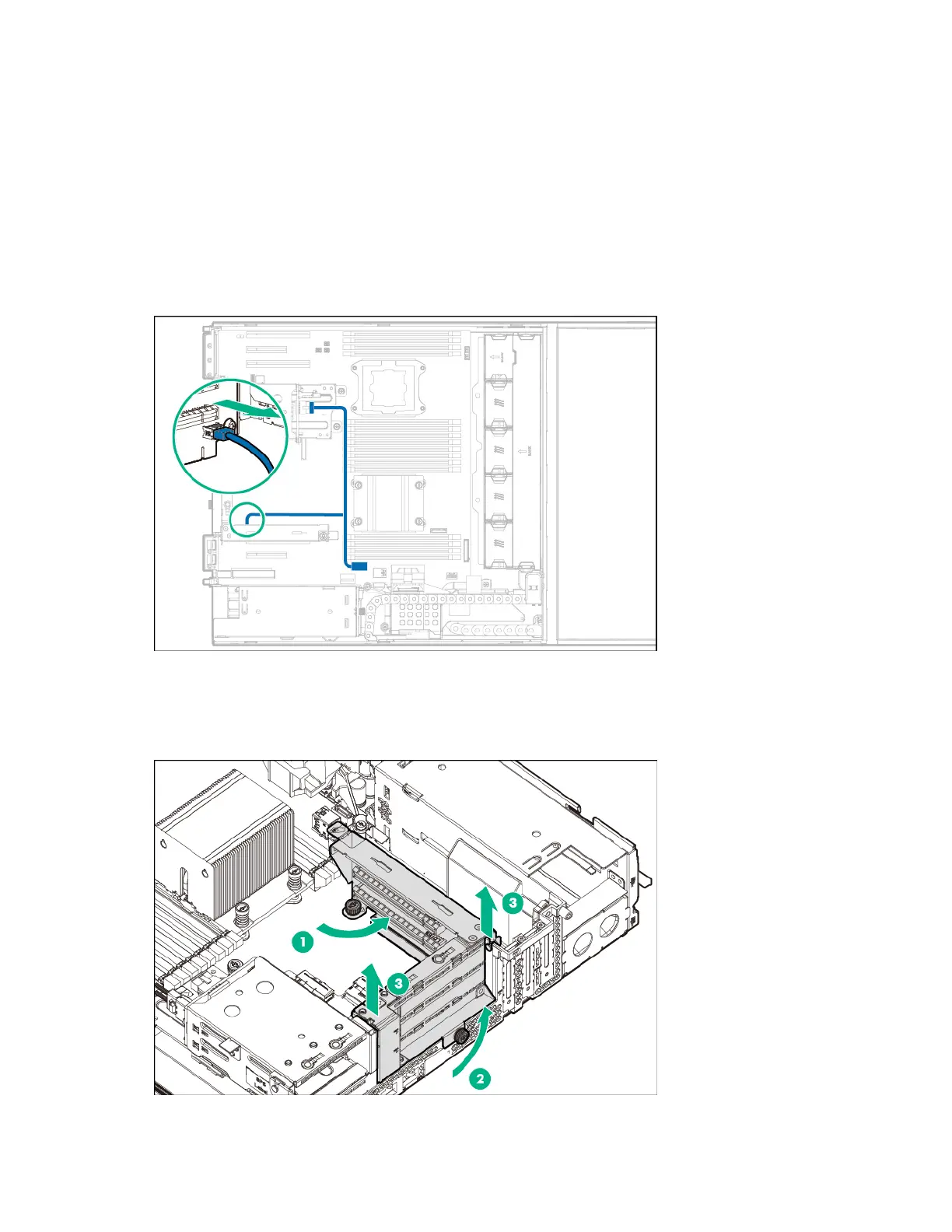

6. Disconnect the power cable from the riser board.
7. Remove the PCI riser cage:
a. Loosen the captive screw on the front end of the PCI riser cage.
b. Loosen the thumbscrew on the rear end of the PCI riser cage.
c. Grasp the PCI riser cage at the touch points and lift it out of the chassis.
