Hardware options installation 68
o

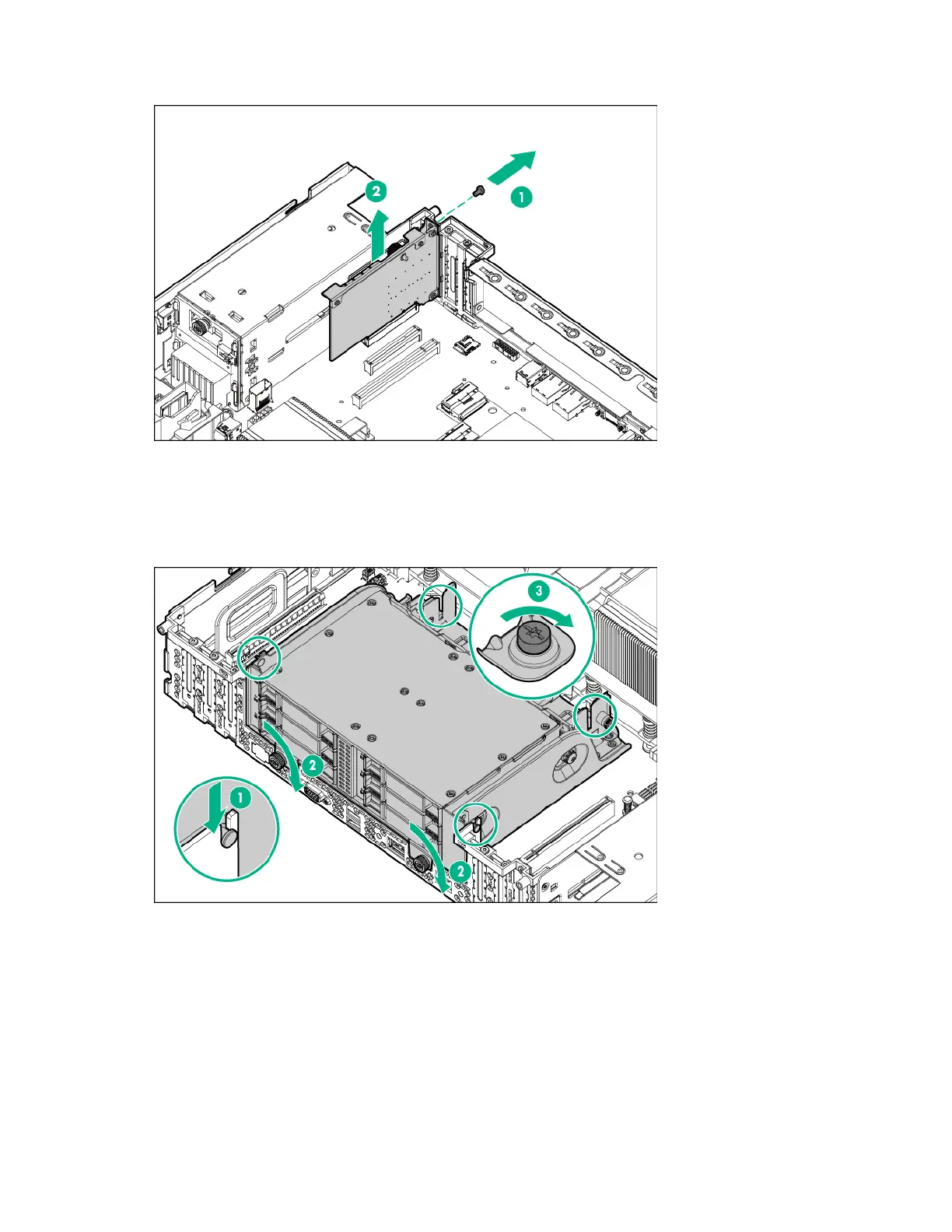

If installed, remove the FlexibleLOM adapter.
8. If you are NOT installing an H240 HBA or a P440 controller for the six-bay SFF rear drive cage, open
the cable management holder (on page 32).
9. Align the pins on the drive cage with the notches on the rear panel.
10. Tighten the thumbscrews to secure the drive cage to the rear panel.
11. Tighten the captive screws to secure the drive cage to the system board.
12. Connect the backplane sideband cable to the rear drive backplane and the system board.
