If you are installing the H240 HBA for a two-bay SFF hot-plug rear drive cage that is connected to the

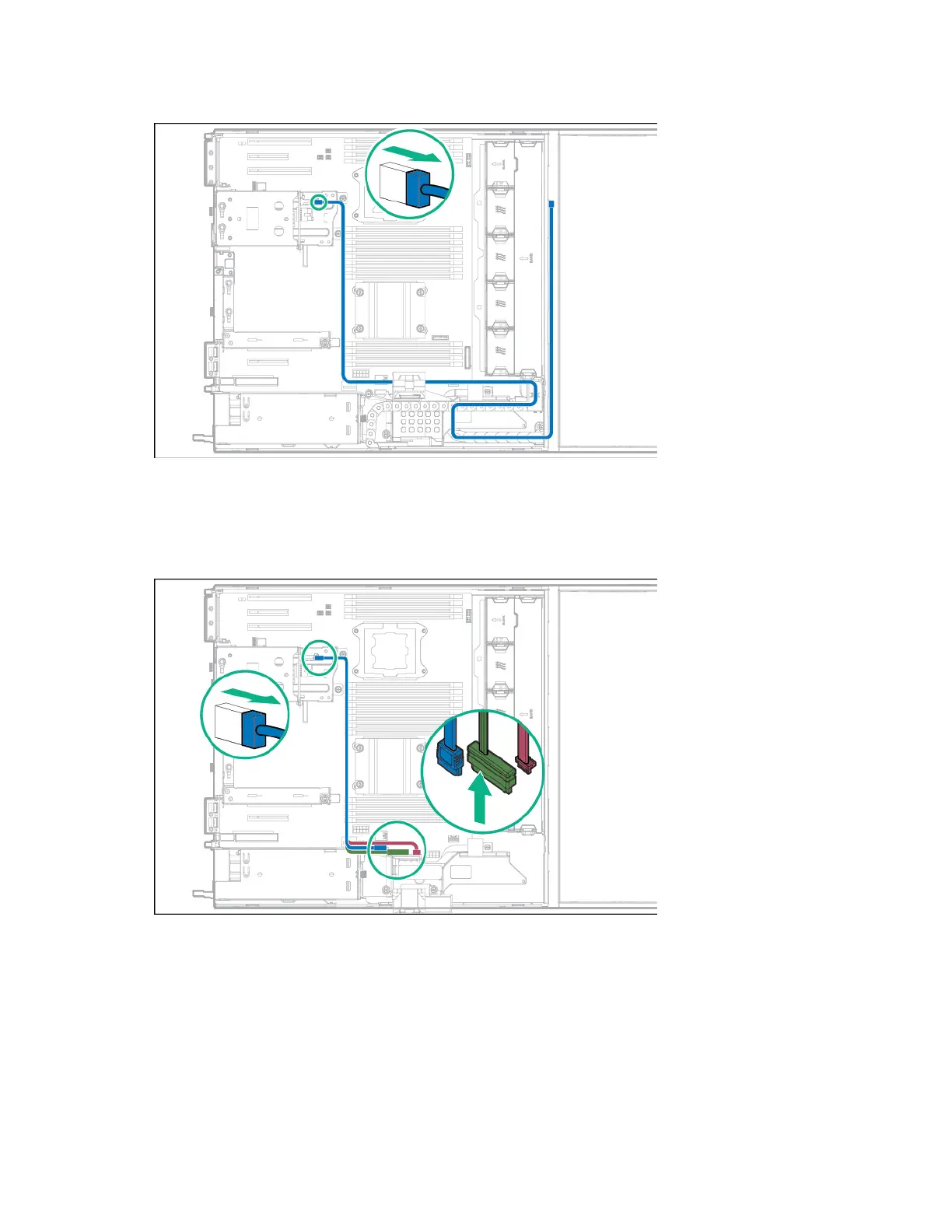

front drive cage 2 backplane, disconnect the Mini-SAS cable from the rear drive backplane.
8. If you are installing the H240 HBA for a two-bay SFF hot-plug rear drive cage that is connected to the
system board, disconnect the multiconnector drive signal cable:
a. Open the cable management holder (on page 32).
b. Disconnect the multiconnector drive signal cable from the rear drive backplane and from the
system board.
c. Close the cable management holder (on page 34).
