Hardware options installation 80
9.

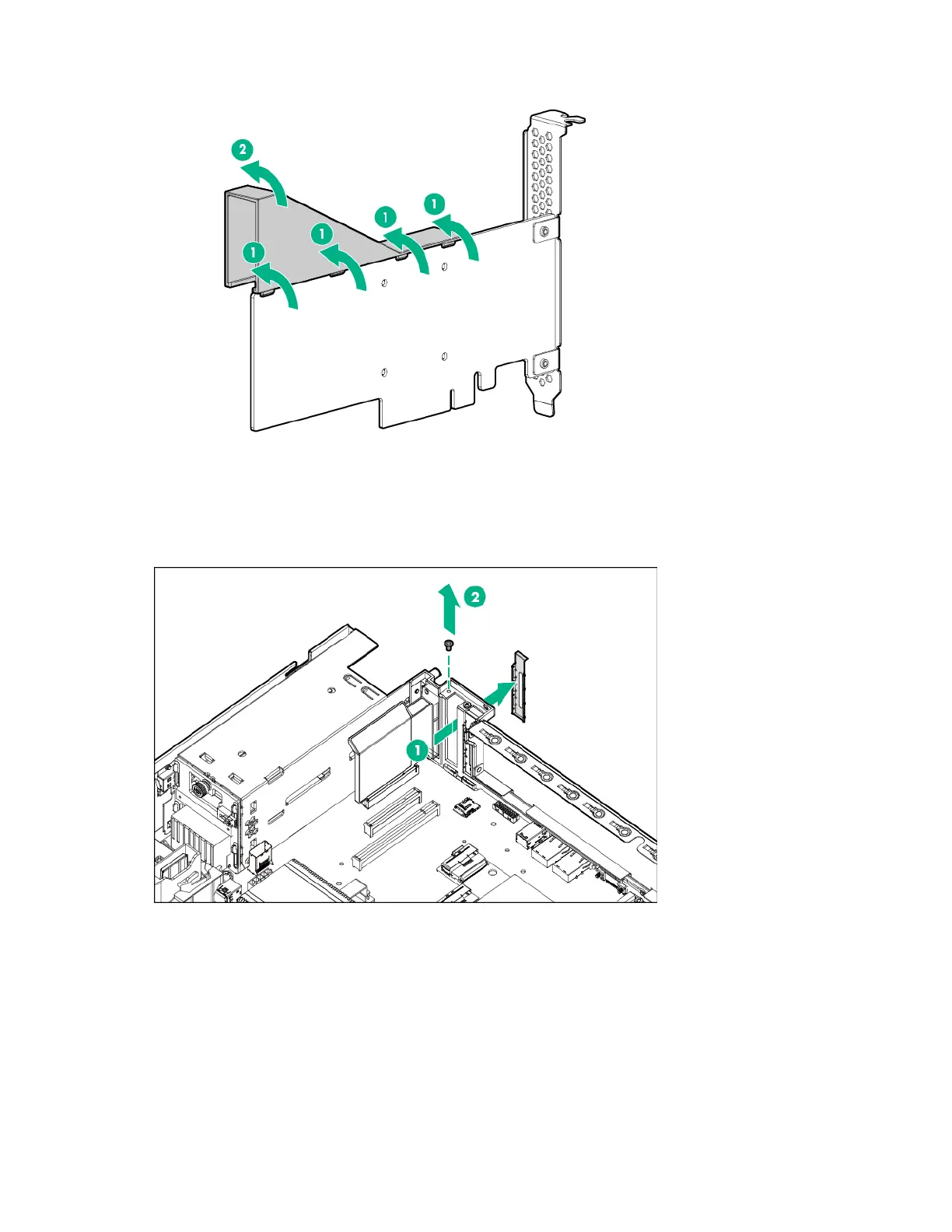

Remove the air scoop from the HBA.
10. If you intend to install the H240 HBA in any of the system board low-profile PCIe expansion slots 1, 2,
5, or 6, do the following:
a. Remove the full-height bracket from the HBA, and attach the low-profile bracket.
For more information, see the documentation that ships with the option.
b. Remove the onboard PCI expansion slot cover.
