Hardware options installation 81
c.

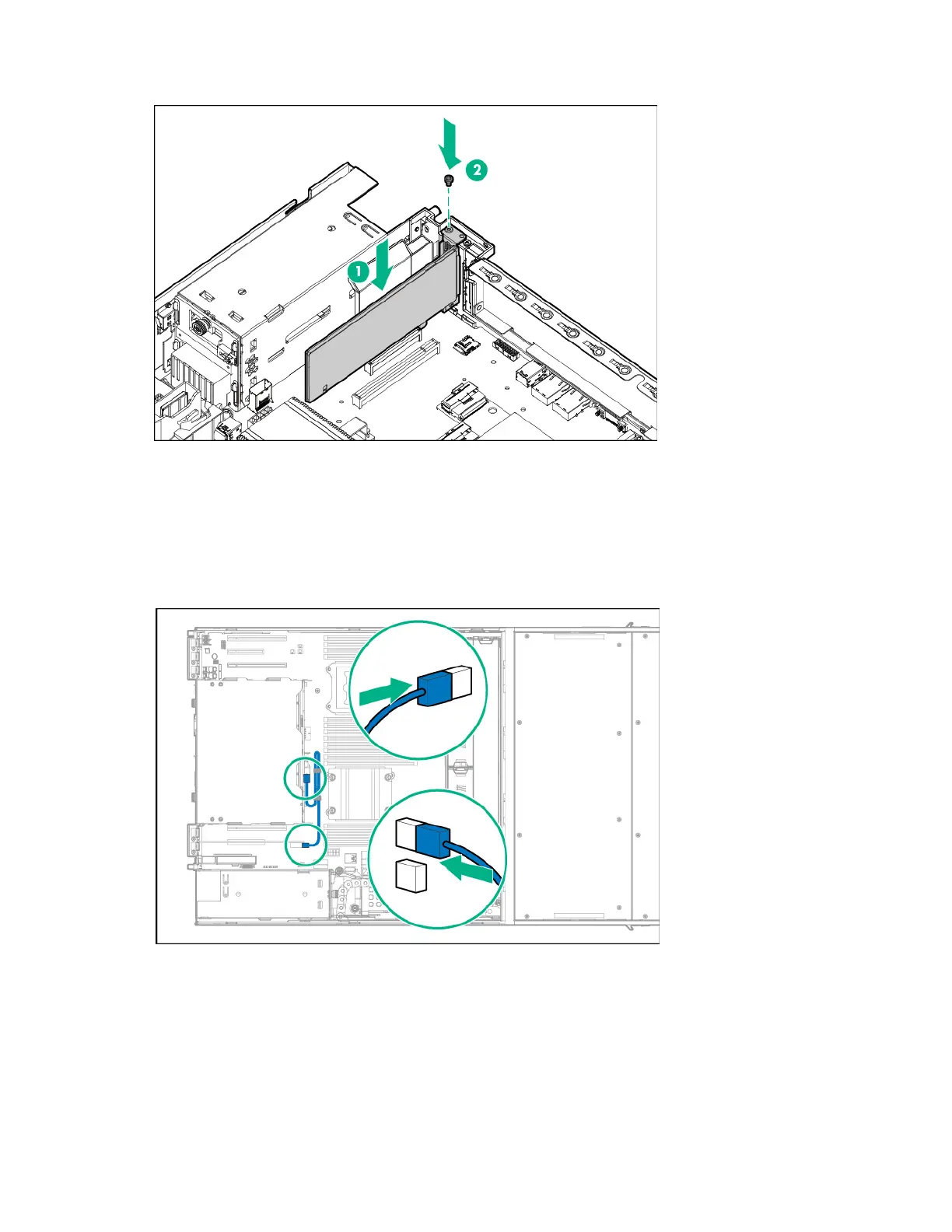

Install the HBA.
d. Connect the Mini-SAS cable to the rear drive backplane and the HBA.
e. For Mini-SAS cabling from the PCIe expansion slots 1 and 2, secure the Mini-SAS cable in the
system board cable clips.
For Mini-SAS cabling from the PCIe expansion slots 5 and 6, position the Mini-SAS cable on top
of the air baffle.
— Four-bay LFF rear drive cage – H240 HBA Mini-SAS cabling from the PCIe expansion slot 1
or 2
